Configuring the Tunnel in the Harmony SASE Administrator Portal

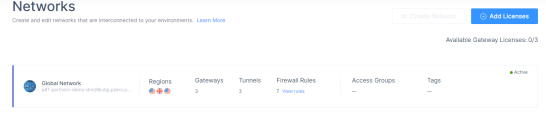

  1. Access the Harmony SASE Administrator Portal and click Networks.

  2. Select the network.

    selecting-a-network

  3. Click and select Add Tunnel for the gateway from which you want to add the IPSec Site-to-Site VPN tunnel.

    Note - Only a single dynamic IP IPSec tunnel is supported per each Cloud Gateway.

    add-tunnel

  4. Click IPSec Site-2-Site Tunnel and click Continue.

    ipsec site-to-site tunnel

  5. Click Single Tunnel and click Continue.

    ipsec site-to-site single tunnel

  6. In the General Settings section, enter the relevant details:

    ipsec site-to-site tunnel general settings

    Field

    Name

    Shared Secret

    Public IP 1

    Remote ID 2

    Harmony SASE Gateway Proposal Subnets 3

    Remote Gateway Proposal Subnets

    Firewall/Router

    Barracuda Firewall

    		Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    Barracuda Firewall Public WAN IP address.

    Barracuda Firewall Public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    Barracuda internal LAN subnets.

    Check Point Firewall

    		Name for the tunnel.

    Enter the secret key specified in Check PointSmartConsole or click Generate to generate it.

    Public or Egress IP address of Check Point Firewall

    		 Public or Egress IP address of Check Point

    Any (0.0.0.0)

    Any (0.0.0.0)

    Cisco ASA Firewall

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    Cisco ASA Firewall Public WAN IP address.

    Cisco ASA Firewall Public WAN IP address.

    Any (0.0.0.0)

    Any (0.0.0.0)

    Cisco Meraki Router

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    Cisco Meraki Router Public WAN IP address.

    Cisco Meraki Router Public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    Cisco Meraki internal LAN subnets.

    D-Link DSR Series Router

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    D-Link DSR Series Router Public WAN IP address.

    D-Link DSR Series Router Public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    D-Link DSR Series Router internal LAN subnets.

    DrayTek Vigor2862 Router

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    DrayTek Vigor3900 Router Public WAN IP address.

    DrayTek Vigor3900 Router Public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    DrayTek Vigor internal LAN subnets.

    DrayTek Vigor3900 Router

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    DrayTek Vigor2862 Router Public WAN IP address.

    Name for the VPN profile on the DrayTek Vigor2862 Router.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    DrayTek Vigor internal LAN subnets.

    EdgeMax Router

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    EdgeMax Router Public WAN IP address.

    EdgeMax Router Public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    EdgeMax internal LAN subnets.

    FortiGate Next Generation Firewall

    		Name for the tunnel. Enter a secret key or click Generate to generate it. FortiGate Next Generation Firewall public IP address. FortiGate Next Generation Firewall remote ID. Harmony SASE network subnet. The default is 10.255.0.0/16. FortiGate Next Generation Firewall internal LAN subnets.

    Linksys Router

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    Linksys public WAN IP address.

    Linksys public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    Linksys internal LAN subnets.
    Juniper Networks ScreenOS Firewall Name for the tunnel. Enter a secret key or click Generate to generate it. Juniper Networks ScreenOS Firewall Public WAN IP address. Juniper Networks ScreenOS Firewall Public WAN IP address. Harmony SASE network subnet. The default is 10.255.0.0/16. Juniper Networks ScreenOS internal LAN subnets.

    Juniper (JunOS) SRX Firewall

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    Juniper SRX Firewall Public WAN IP address.

    Juniper SRX Firewall Public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    Juniper Networks ScreenOS internal LAN subnets.

    Netgear BR500 Router

    Name for the tunnel.

    Enter a secret key or click Generate to generate it.

    Netgear BR500 Router Public WAN IP address.

    Netgear BR500 Router Public WAN IP address.

    Harmony SASE network subnet. The default is 10.255.0.0/16.

    Netgear BR500 internal LAN subnets.
    Palo Alto Firewall Name for the tunnel. Enter the secret key specified in the Palo Alto Management Portal.

    External internal IP address of Palo Alto Firewall.

    You can obtain this from Interfaces > Ethernet in the Palo Alto Management Portal.

    External internal IP address of Palo Alto Firewall.

    You can obtain this from Interfaces > Ethernet in the Palo Alto Management Portal. If NAT is configured, then enter the internal LAN IP address of the Palo Alto Firewall.

    		 Any (0.0.0.0) Any (0.0.0.0)
    pfSense Firewall Name for the tunnel. Enter a secret key or click Generate to generate it. pfSense Firewall Public WAN IP address. pfSense Firewall Public WAN IP address. Harmony SASE network subnet. The default is 10.255.0.0/16. pfSense internal LAN subnets.

    SonicWall Firewall

    		Name for the tunnel. Enter a secret key or click Generate to generate it. SonicWall Firewall Public WAN IP address. SonicWall Firewall Public WAN IP address. Harmony SASE network subnet. The default is 10.255.0.0/16. SonicWall internal LAN subnets.
    Sophos XG Firewall Name for the tunnel. Enter a secret key or click Generate to generate it. Sophos XG Firewall Public WAN IP address. Sophos XG Firewall Public WAN IP address. Harmony SASE network subnet. The default is 10.255.0.0/16. Sophos XG internal LAN subnets.
    UniFi USG Firewall Name for the tunnel. Enter a secret key or click Generate to generate it. UniFi USG Firewall Public WAN IP address. UniFi USG Firewall Public WAN IP address. Harmony SASE network subnet. The default is 10.255.0.0/16. UniFi USG internal LAN subnets.
    WatchGuard Firewall Name for the tunnel. Enter a secret key or click Generate to generate it. WatchGuard Firewall Public WAN IP address. WatchGuard Firewall Public WAN IP address. Harmony SASE network subnet. The default is 10.255.0.0/16. WatchGuard internal LAN subnets.
    Zyxel USG Firewall Name for the tunnel. Enter a secret key or click Generate to generate it Zyxel USG Firewall Public WAN IP address. Zyxel USG Firewall Public WAN IP address. Harmony SASE network subnet. The default is 10.255.0.0/16. Zyxel USG internal LAN subnets.

    7. 1 For dynamic IP tunnels, enter 0.0.0.0

    2 For dynamic IP tunnels, do not enter 0.0.0.0

    3 For dynamic IP tunnels, do not select Any (0.0.0.0/0)

  7. In the Advanced Settings section, enter the relevant details:

    Field

    IKE Version1 2

    IKE Lifetime

    Tunnel Lifetime

    Dead Peer Detection Delay

    Dead Peer Detection Timeout

    Encryption (Phase 1)

    Encryption (Phase 2)

    Integrity (Phase 1)

    Integrity (Phase 2)

    Diffie Hellman Groups (Phase 1)

    Diffie Hellman Groups (Phase 2)

    Firewall/Router
    Barracuda

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    SHA

    SHA

    2

    2
    Check Point

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha256

    sha256

    14

    14

    Cisco ASA

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha512

    sha512

    21

    21

    Cisco Meraki

    V1

    8h

    1h

    10s

    50s

    aes256

    aes256

    sha1

    sha1

    5

    5

    D-Link DSR Series Router

    V1

    8h

    1h

    30s

    10s

    aes256

    aes256

    sha512

    sha512

    5

    5

    DrayTek Vigor2862

    V2

    8h

    1h

    30s

    60s

    aes256

    aes256

    sha1

    sha1

    2

    2

    DrayTek Vigor3900

    V1

    8h

    1h

    30s

    60s

    aes256

    aes256

    sha1

    sha1

    5

    5

    EdgeMax

    V1

    8h

    1h

    15s

    30s

    aes256

    aes256

    sha1

    sha1

    14

    14
    FortiGate Next Generation Firewall

    V2

    8h

    		 1h 10s 30s Default value Default value Default value Default value

    21

    21

    Linksys

    V2

    8h

    1h

    30s

    10s

    aes256

    aes256

    sha1

    sha1

    5

    5
    Juniper Networks ScreenOS

    V1

    8h

    1h

    10s

    50s

    aes256

    aes256

    sha1

    sha1

    5

    5

    Juniper Networks SRX

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha256

    sha256

    14

    14

    Netgear BR500

    V2

    8h

    1h

    30s

    10s

    aes256

    aes256

    sha1

    sha1

    5

    5
    Palo Alto

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha256

    sha256

    14

    14
    pfSense

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha256

    sha256

    14

    14
    SonicWall

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha1

    sha1

    2

    2
    Sophos XG

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha512

    sha512

    14

    14
    UniFi USG

    V2

    8h

    8h

    10s

    30s

    aes256

    aes256

    sha1

    sha1

    21

    21
    WatchGuard

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha256

    sha256

    14

    14
    Zyxel USG

    V2

    8h

    1h

    10s

    30s

    aes256

    aes256

    sha256

    sha256

    14

    14

    1 If V2 is not supported, select V1.

    2 For dynamic IP tunnels, select V2.

  8. Click Add Tunnel.
