SAML Configuration for Duo

  1. Log in to the Avanan Administrator Portal.

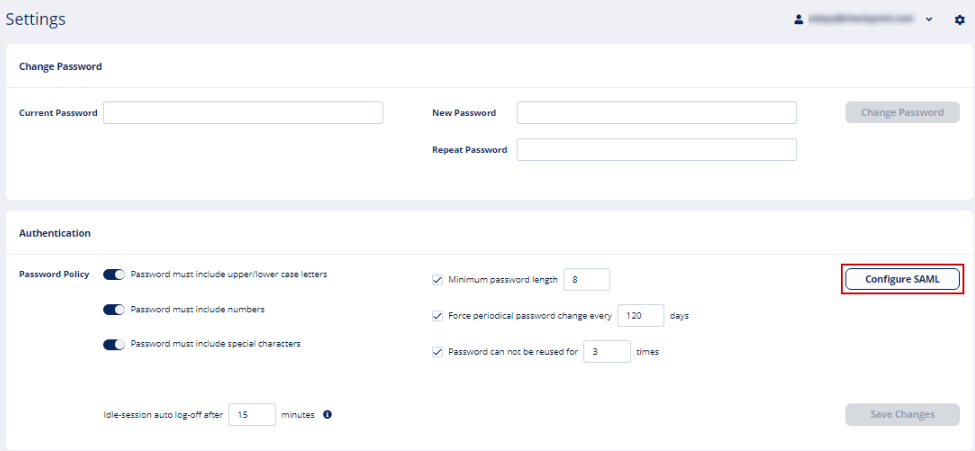

    1. Go to System Settings > Settings and click Configure SAML.

      The Configure SAML window appears.

    2. In the SAML SSO URL field, click to copy the SAML SSO URL.
  2. Log in to your Duo Admin Portal.

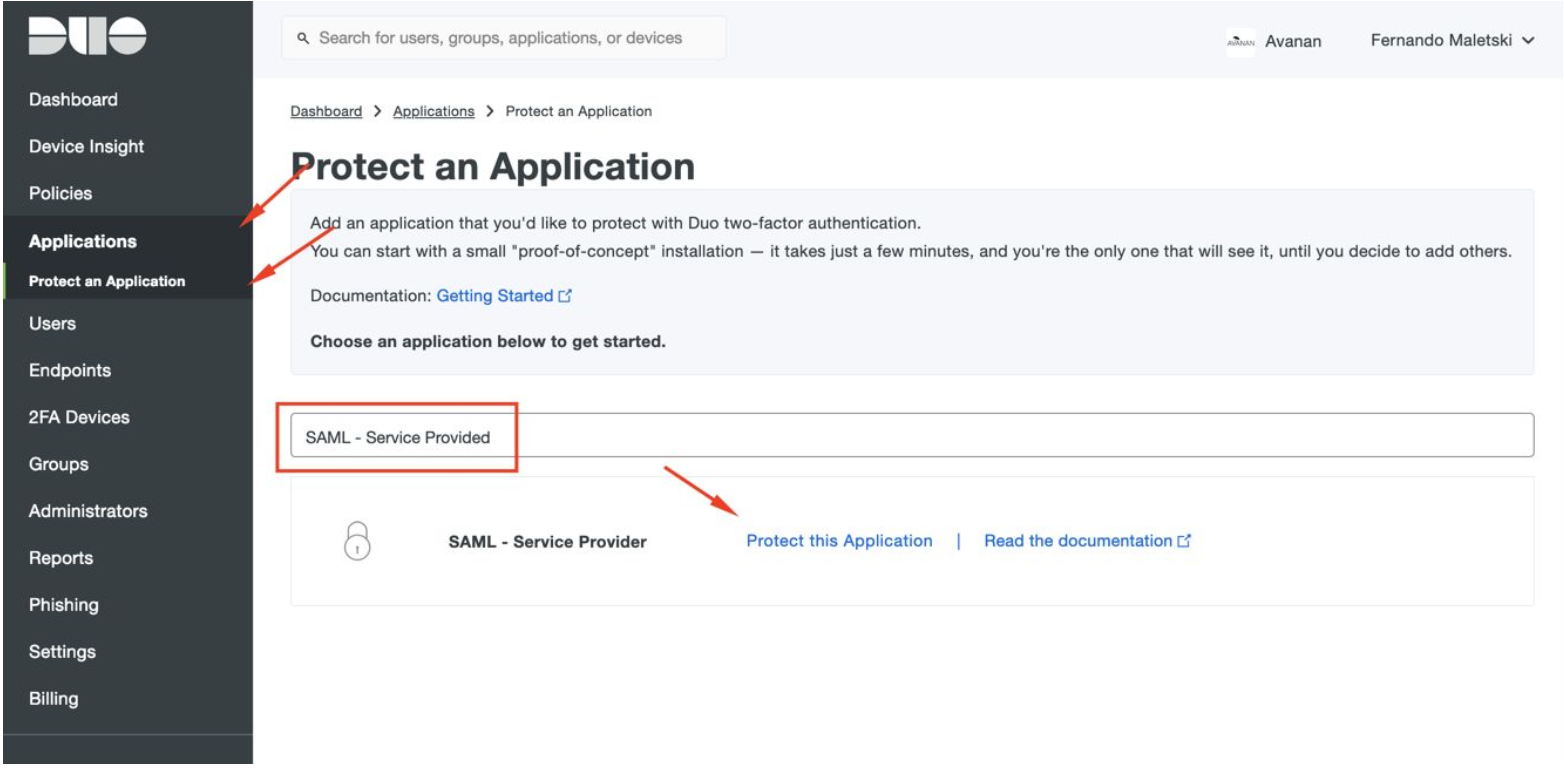

    1. Go to Applications > Protect an Application.

    2. In the search box, search for SAML - Service Provider.
    3. Click Protect this Application.

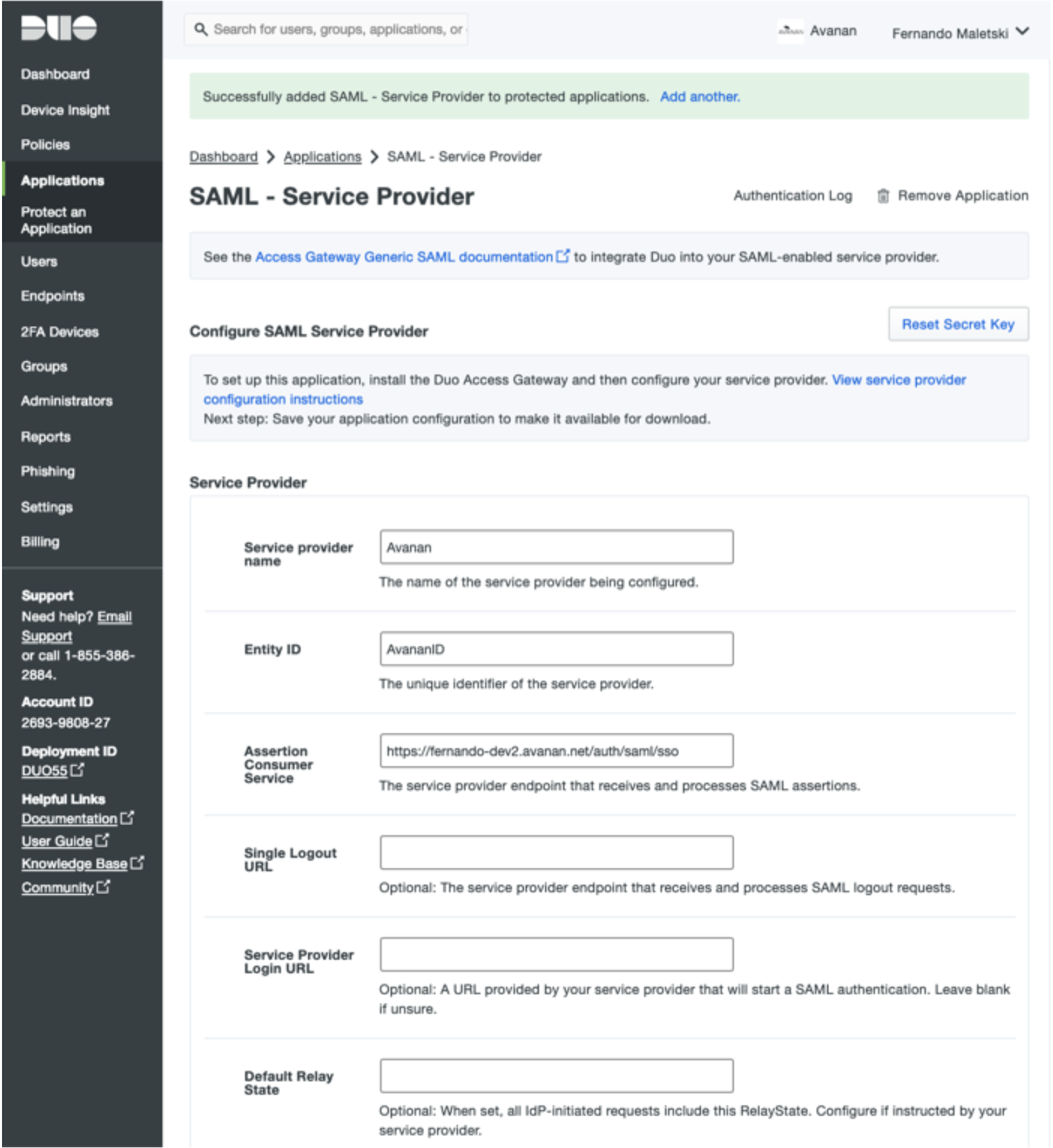

      The SAML - Service Provider page appears.

    4. In the Service provider name field, enter a name for the application.
    5. In the Entity ID field, enter a unique Entity ID.
    6. In the Assertion Consumer Service field, enter the URL you copied in step 1.b.

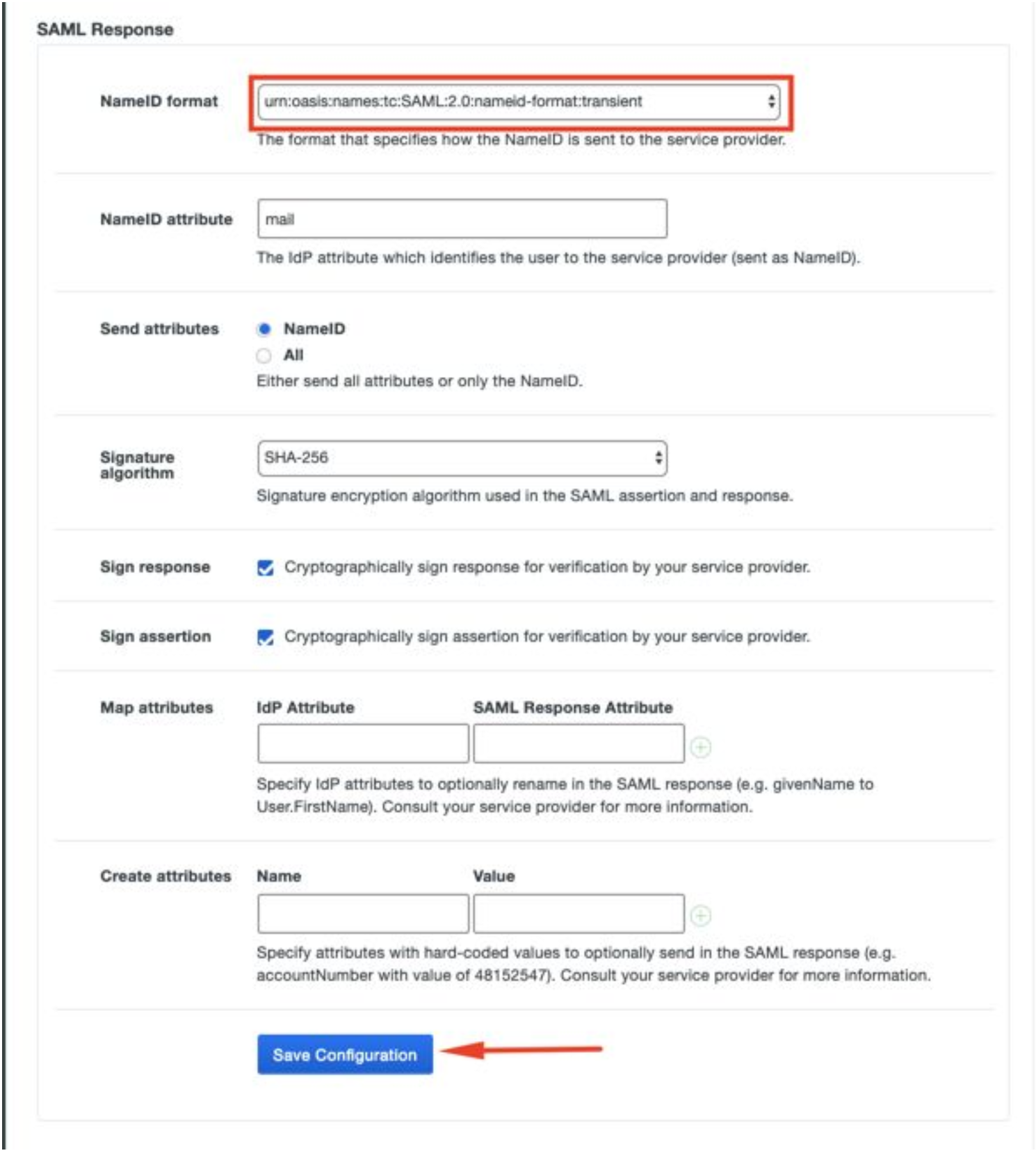

    7. In the NameID format field, select transient.

    8. Click Save Configuration.
    9. In the Configure SAML Service Provider section, click Download your configuration file and save the JSON file.
  3. Log in to the Avanan Administrator Portal.
    1. Go to System Settings > Settings and click Configure SAML.

      The Configure SAML window appears.

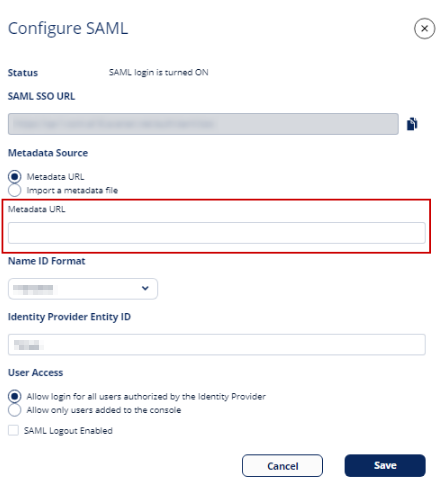

    2. In the Metadata Source field, select Import a metadata file and upload the XML file downloaded in step 2.i.
    3. Select the Are you running Azure AD checkbox.
    4. In the Identity Provider Entity ID field, enter the unique string entered in step 2.e.
    5. Click Save.
