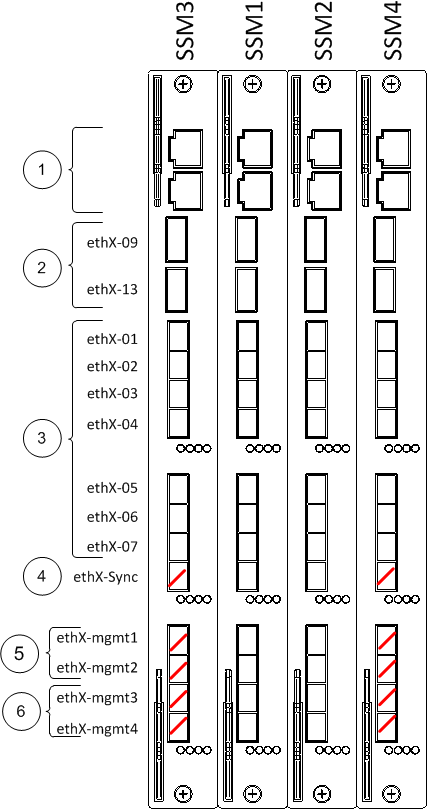

Shows the interface names in the initial setup program. Replace X with the SSM number.

Note: Ports shown as are not supported.

(1)

1 port for direct access through LAN

1 port for direct access through console (serial)

(2)

2 x 40GbE QSFP data ports.

Use a QSFP splitter to split each of the two QSFP ports to 4 x 10GbE.
When using a QSFP splitter the interface names are:

• Upper QSFP port:
  ethX-09 to ethX-12
• Lower QSFP port:
  ethX-13 to ethX-16

(3)

7 x 10GbE SFP+ data ports

Can use 1GbE or 10GbE transceivers

In SmartDashboard, define used interfaces as internal or external.

(4)

10 GbE SFP+ synchronization port

Use for connecting to and synchronizing with another 61000 appliance that functions as a high availability peer.

(5)

2x 10GbE SFP+ port management and logging ports.

Connect these ports to the management/logging network. Security Management Server or dedicated logging servers should be accessible from these interfaces.

(6)

2 x 1GbE SFP management and logging ports.

Connect these ports to the management/logging network. Security Management Server or dedicated logging servers should be accessible from these interfaces.
