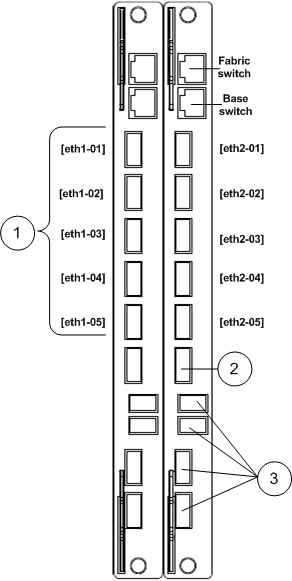

(1)

5 x 10GbE XFP data ports in each Security Switch Module. These data ports are the network interfaces of the 61000 Security System.

In the initial setup program, the interfaces in the

• Left Security Switch Module are named:
  eth1-01, eth1-02, ... eth1-05
• Right Security Switch Module are named:
  eth2-01, eth2-02, ... eth2-05

In SmartDashboard, define used interfaces as internal or external.

(2)

1 synchronization port on each SSM for connecting to and synchronizing with another 61000 Security System that functions as a high availability peer.

(3)

4 ports for management and logging on each SSM.

• 2 Upper ports: 1GbE SFP
• 2 Lower ports: 10GbE XFP

Connect these ports to the management/logging network. Security Management Server or dedicated logging servers should be accessible from these interfaces.

In the initial setup program, the interfaces are named:

• On Left SSM:

  eth1-Mgmt1, eth1-Mgmt2, ... eth1-Mgmt4

• On the right SSM:

  eth2-Mgmt1, eth2-Mgmt2, ... eth2-Mgmt4
