Adding Gateways to the Management Console

This step describes how to add a Security GatewayClosed Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources. to Check Point's Security Management ServerClosed Dedicated Check Point server that runs Check Point software to manage the objects and policies in a Check Point environment within a single management Domain. Synonym: Single-Domain Security Management Server.. A Security Gateway enforces Security PoliciesClosed Collection of rules that control network traffic and enforce organization guidelines for data protection and access to resources with packet inspection. configured on the Security Management ServerClosed Check Point Single-Domain Security Management Server or a Multi-Domain Security Management Server.. To install Security Policies on the Security Gateway, configure the Security Gateway object in SmartConsoleClosed Check Point GUI application used to manage a Check Point environment - configure Security Policies, configure devices, monitor products and events, install updates, and so on..

To add gateways to the Management Console:

  1. Log in to the Check Point Management Console.

  2. Create a new singe gateway, use the Wizard mode.

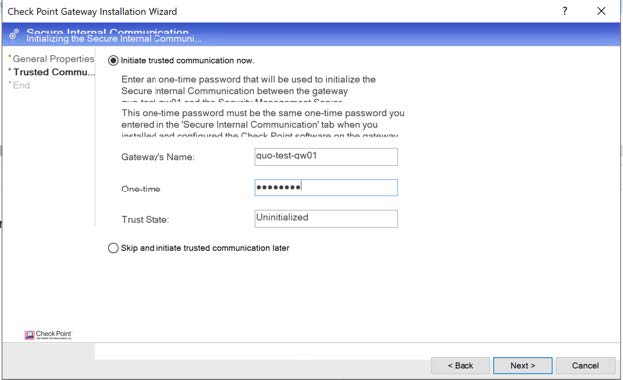

  3. Enter the SICClosed Secure Internal Communication. The Check Point proprietary mechanism with which Check Point computers that run Check Point software authenticate each other over SSL, for secure communication. This authentication is based on the certificates issued by the ICA on a Check Point Management Server._Key used in "Bootstrap details. See Deploying Check Point Gateways.

  4. Accept the network values > click Close.

  5. Stop the Anti-Spoofing Software BladeClosed Specific security solution (module): (1) On a Security Gateway, each Software Blade inspects specific characteristics of the traffic (2) On a Management Server, each Software Blade enables different management capabilities. on the external interface.

    1. Navigate to Gateway Object > Network Management > eth0 (external) > Modify.

    2. Clear the checkbox Perform Anti-Spoofing based on interface topology > click OK > OK.

    3. To close object, click OK.

  6. Do these steps again for each gateway.
