Deploying VSX - Internal Network Deployment Strategies

Security Gateway Deployment on a Physical Network

In large physical network deployments, multiple Check Point security products, such as Security Gateways, are deployed to protect network segments.

Each Security Gateway Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources. physically connects to its own internal protected network and to a router for access to other internal networks and the Internet.

VSX Virtual System Deployment Strategies

In a VSX Virtual System Extension. Check Point virtual networking solution, hosted on a computer or cluster with virtual abstractions of Check Point Security Gateways and other network devices. These Virtual Devices provide the same functionality as their physical counterparts. environment, Virtual Systems protect internal networks.

This section shows sample VSX deployments with Virtual Systems to protect internal networks.

Each example highlights different VSX features.

In a real-world deployment, you can combine features to create a powerful cyber security solution for complex enterprise environments.

Physical Internal Interface for Each Virtual System

In a basic VSX configuration, Virtual Systems connect directly to protected internal networks through physical interfaces on the VSX Gateway Physical server that hosts VSX virtual networks, including all Virtual Devices that provide the functionality of physical network devices. It holds at least one Virtual System, which is called VS0..

A Virtual Switch Virtual Device on a VSX Gateway or VSX Cluster Member that functions as a physical switch. Acronym: VSW. connects between internal networks, and to the Internet.

This deployment is suitable for protecting a small, fixed quantity of internal networks.

The main disadvantage of this deployment is that each protected network requires its own dedicated physical interface on the VSX Gateway.

Obviously, this deployment is not suitable for networks that require many Virtual Systems.

Virtual Systems with Internal VLAN Interfaces

In this deployment example, Virtual Systems connect to internal protected networks through VLAN interfaces.

The VSX Gateway connects to a VLAN switch with an 802.1q VLAN trunk, which is an aggregate of all VLANs passing through it.

This deployment option is appropriate for environments where many Virtual Systems protect many internal networks with one VSX Gateway or cluster Two or more Security Gateways that work together in a redundant configuration - High Availability, or Load Sharing..

VLANs provide scalability and granularity, to provision more Virtual Systems and protected networks quickly, without changing the existing IP address structure.

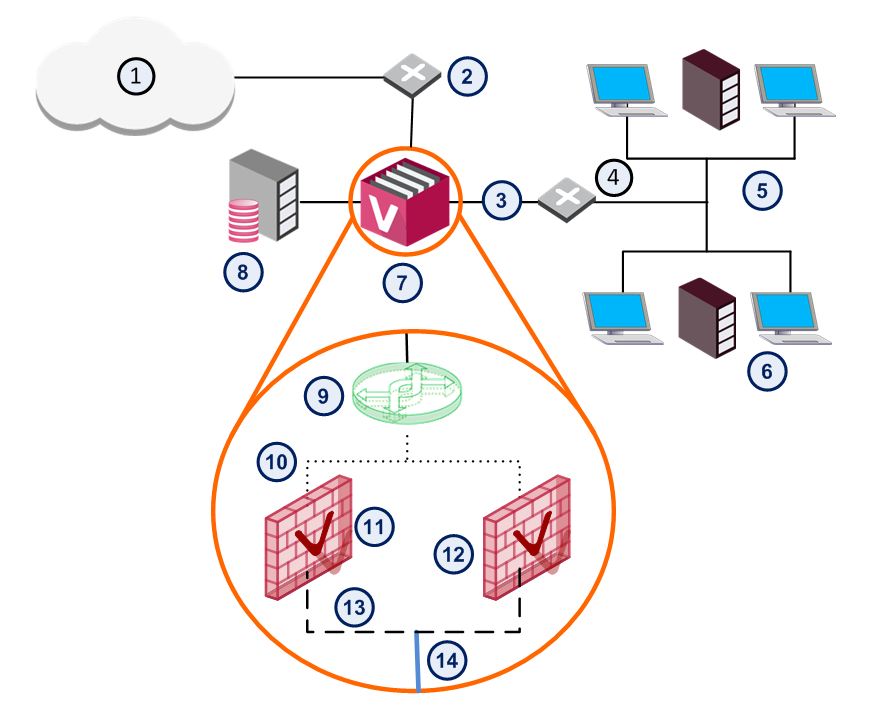

Internal Virtual Router with Source-Based Routing

This deployment scenario enables Virtual Systems to connect to protected networks using a single physical interface without VLAN technology.

The Virtual Router Virtual Device on a VSX Gateway or VSX Cluster Member that functions as a physical router. Acronym: VR. uses source-based routing rules to forward traffic to the appropriate Virtual System based on its source IP address.

In a VSX deployment with each Virtual System connected to a single Virtual Router: You can configure the Virtual Router to use source-based routing rules, to forward traffic to the appropriate Virtual System, based on the source IP address.

Notes to this scenario:

• Each Virtual System uses a public IP address to connect to the Virtual Switch.

• Each local network connected to a Virtual Router uses private IP addresses.

• This deployment does not support overlapping IP addresses.

• Anti-Spoofing protection does function for packets originating from the shared internal interface.

  We recommend that you configure the internal physical router to perform Anti-Spoofing protection.

Virtual Systems in Bridge Mode

A Virtual System in bridge mode Security Gateway or Virtual System that works as a Layer 2 bridge device for easy deployment in an existing topology. implements native Layer 2 bridging instead of IP routing and can co-exist with Layer 3 Virtual Systems on the same VSX Gateway.

This allows network administrators to easily and transparently deploy a Virtual System in an existing network topology without reconfiguring the existing IP routing scheme.

Bridge Mode deployments are particularly suitable for large-scale clustered environments.

See Bridge Mode.
