The Chassis Management Module controls and monitors Chassis operation. This includes fan speed, Chassis and module temperature, and component hot-swapping.

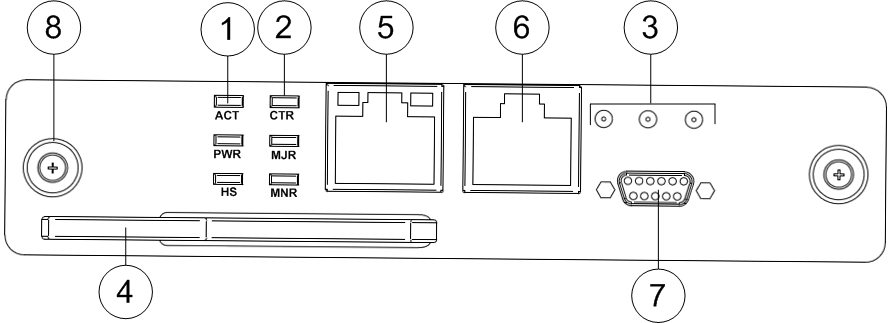

Item |
Description |
|---|---|
1 |
General LEDs |
2 |
Telco Alarm LEDs |
3 |
Application defined LEDs |
4 |
Latch |
5 |
Network port |
6 |
Serial port |
7 |
Alarm |
8 |
Thumb screw |
General LEDs
LED |
Status |
Meaning |
|---|---|---|
ACT
|
Green |
Chassis Management Module is active |
Red |
Chassis Management Module failure |
|
Green blink |
Chassis Management Module inactive |
|
PWR
|
Green |
Good local voltage supply on Chassis Management Module |
Off |
Local voltage failure |
|
HS (hot swap)
|
Steady blue |
Chassis Management Module is powering up or ready for extraction. |
Blue blink |
Chassis Management Module is being hot swapped |
|
Off |
Chassis Management Module in operation |
Telco Alarm LEDs
LED |
Status |
Meaning |
|---|---|---|
CRT (Critical)
|
Off |
Normal operation |
Red |
System alarm event |
|
MJR (Major)
|
Off |
Normal operation |
Red |
System Alarm event |
|
MNR (Minor)
|
Off |
Normal operation |
Red |
System alarm event |
