The cooling system consists of three high performance fan trays. The fan trays are at the rear of the Chassis. Each tray contains two fans that supply air volume and velocity for cooling front and rear Chassis components. Air flows from the inside to the outside of the Chassis.

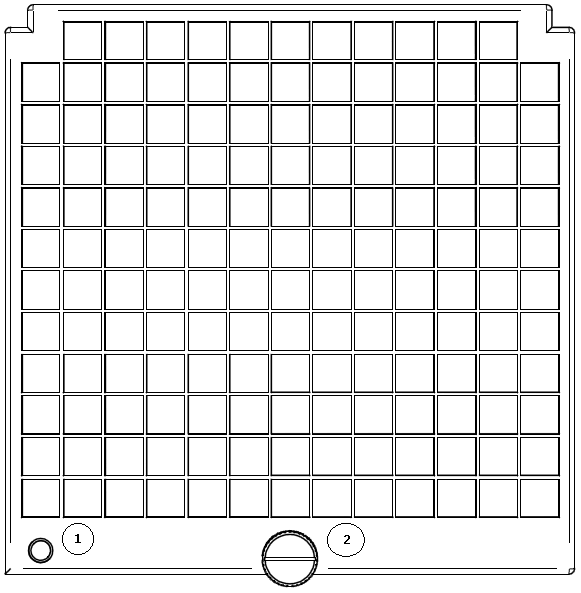

Item |
Description |
|---|---|
1 |
Power fault LED |
2 |
Locking captive screw |
Three fan trays are preinstalled (6 fans).
