Incidents - Forensics Trees

The Forensics trees shows a graphical representation of the forensic report generated by Harmony Endpoint for each detection in an insight.

Note - An insight can contain zero or multiple forensic trees.

To view the Forensics Tree page:

1. Access Infinity XDR Extended Detection & Response/XPR Extended Prevention & Response and click Incidents > Incidents.

2. Click the incident title or hover over the incident and click >.

3. Click Attack graphs > Forensics trees.

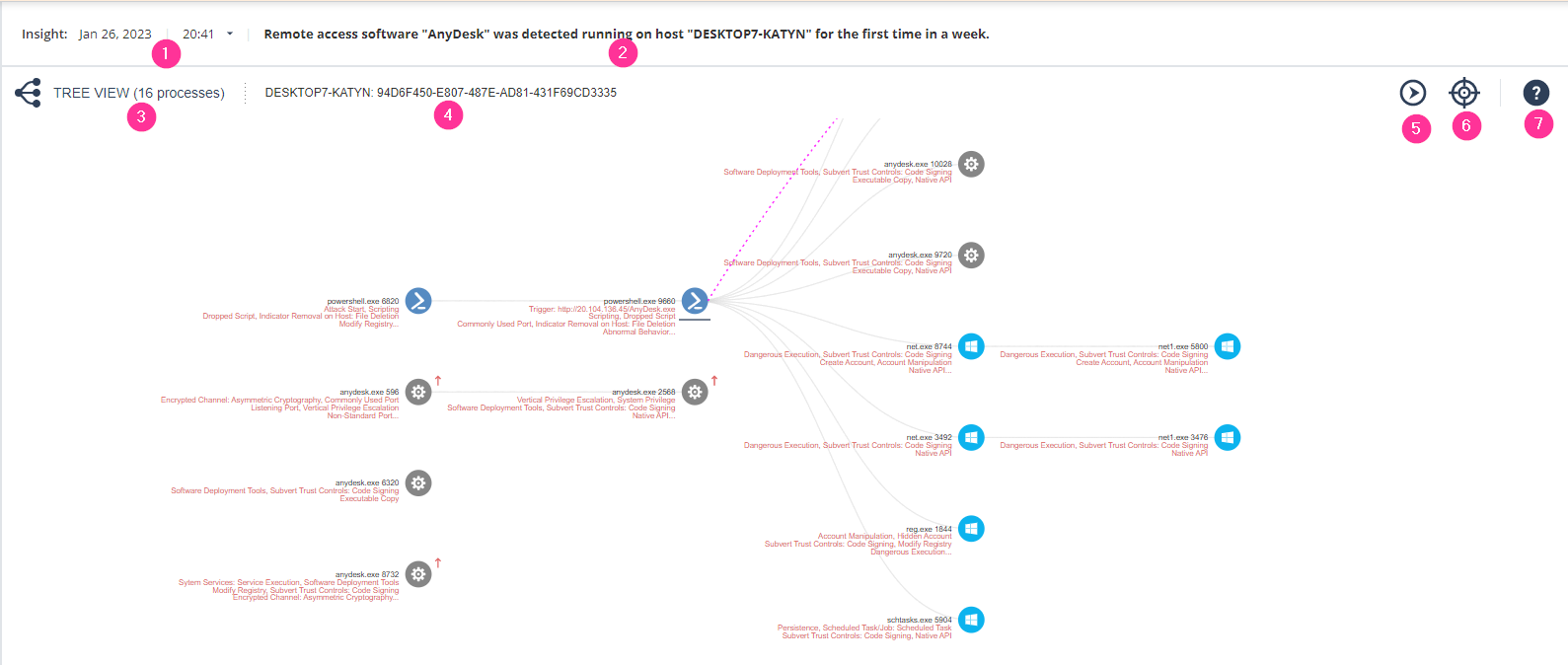

Legend	Description
1	Date and time when the insight was generated. Click to view the insights and forensics trees available for the incident. Click the forensics tree to view its graphical representation.
2	Insight An aggregation of one or more logs into valuable observations indicating the nature of the activity. summary.
3	Process involved in the insight.
4	Asset involved in the insight.
5	Goes to that start of the tree.
6	Goes through the processes in the tree.
7	Opens the graph legends.
