Customization in Infinity Playblocks

Infinity Playblocks provides flexible customization options to tailor automations according to your organization's needs. These are the primary methods to create or customize automations:

• Create automation from blank

• Export / Import automation

• Clone existing automation

• Create automation by Infinity AI Copilot

• Replace Trigger

Creating Automation from Blank

Creating an automation from blank allows you to build fully customized flows from scratch, tailoring every step to your specific use case.

To create an automation from blank:

1. Access Infinity Playblocks and go to Automations.

2. Click New and select Start from blank.



   A new automation window appears.

3. Click the box to add a trigger.



4. Select a trigger:

   • Log Trigger - To monitor specific log types with optional filters and time intervals. See Log Trigger.

   • Schedule Trigger - To execute the automation at defined time intervals. See Schedule Trigger.



5. Click Add.

Log Trigger

In the Log Trigger window:

1. In the General tab:

   1. From the Type list, select the log type:

      • Logs

      • Audit

      Note - An additional option Events is available if you select Quantum SD-WAN as the source product.

   2. From the Get logs from list, select the source product for the logs.

      Note - For Quantum products, there are two options: Quantum Management (Infinity Portal) Opens the cloud logs view (requires Smart-1 Cloud or Log Sharing). Quantum Management (Self-Hosted Log Server) Opens a manual input for filter text.

      Additional products that support filter editing via the cloud logs view are:

      • Harmony Endpoint

      • Harmony Email & Collaboration

      • Harmony SASE

      • SD-WAN

      • CloudGuard WAF

   3. In the Filter field, choose the filter from the product logs.

   4. From the Interval list, select how often Infinity Playblocks will search for matching logs.

   5. (Optional) In the Condition section, add criteria to refine when the automation is triggered.

      This enables more tailored log monitoring and precise automation triggers. The automation will only be triggered when all conditions are met. The condition types available are:

      • Count the Number of Logs

        • Count distinct or count occurrences within a field

          For example, trigger automation if logs are found from three different sources.

        • Option to save values for later use



      • File/IP/URL is Malicious

        Uses Check Point Reputation Service to verify if values are flagged as malicious.







      • Skip log if value exists in list

        Skips log if the value field (example, IP address) already exists in a predefined list.



      • Admin is external

        Checks if the admin field from log is an external user.



      • Fields exist in log

        Ensures specified fields are present.



      • Field is matched to specific value

        Checks if a field’s value is equal to, not equal to, or contains a specific value.



      • Field is IP address

        Validates that a field contains a valid IP address.



      • Suppress logs

        Prevents triggering based on repeated matches.



      • IP is Internal/External

        Checks if an IP field from log is internal/external.



      • IP Geolocation

        Validates whether the origin country of an IP field is included or excluded from a specified country list.



      • Check log generation time

        Validates whether the log timestamp falls within a defined time window.



2. In the Example output tab:



   • If logs matching your filter were found in the last 24 hours, the system displays an example log.

   • Otherwise, you can manually define an example to enable use of log fields:

     1. Click New example.

     2. Enter a name and click Create.



     3. Paste your example sample text.



     4. Click Save.

3. Click Create.

Schedule Trigger

In the Schedule Trigger window:

1. In the General tab, from the Repeats list, select the frequency to repeat the trigger to run the automation:

   • Monthly - Runs the automation every X months, on specified days.

   • Weekly - Runs the automation on selected weekdays, at a specific time.

   • Daily - Runs the automation every X days, at a set time.

   • Hourly - Runs the automation every X hours.

2. Click Create.

Managing Trigger

1. Hover over the End button in your trigger.



   It changes to +.

2. Click +.



3. Select the required option:

   • Notifications

   • Enrichments

   • Conditions

   • Actions



Notifications

1. In Notifications, select one of these:

   • Notify

     1. To send a notification with customizable subject and message content, select Notify.

     2. Click Add.

        The Notify window appears.



     3. Enter these:

        1. Subject - Text combined and dynamic values from previous steps or automation parameters.



        2. Message - Text combined and dynamic values from previous steps or automation parameters.



        3. (Optional) Send event details - Include selected event data from the outputs of the current or previous steps, or from the automation parameters.



        4. Notification profile - Select the notification profile of the step.



     4. Click Create.

   • Ask

     1. To send a customizable message that prompts a user response, select Ask.

     2. Click Add.

        The Ask window appears.



     3. Enter these:

        1. Subject - Text combined and dynamic values from previous steps or automation parameters.



        2. Message - Text combined and dynamic values from previous steps or automation parameters.



        3. (Optional) Send event details - Include selected event data from the outputs of the current or previous steps, or from the automation parameters.



        4. Options and Defaults - Define user response options and a default fallback in case of timeout.



        5. Notification profile - Select the notification profile of the step.



     4. Click Create.

   • Open Ticket

     1. To create a ticket, select Open Ticket.

     2. Click Add.

        The Open Ticket window appears.



     3. Enter these:

        1. Subject - Configure the ticket subject, with the option to add fields from the outputs of the current or previous steps and from the automation parameters.

        2. Description - Configure the ticket description, with the option to add fields from the outputs of the current or previous steps and from the automation parameters.

        3. (Optional) Send event details - Choose whether to send event details, and select specific details from the outputs of the current or previous steps, or from the automation parameters.

     4. Click Create.

Enrichments

Enrichment steps query Check Point Reputation Service to return relevant data for IP addresses, URLs, or file hashes from previous step outputs. Each enrichment provides threat intelligence about the value being checked.

1. In Enrichments, select one of these:



   • Enrich IP

     1. To return data for an IP address, select Enrich IP.

     2. Click Add.

        The Enrich IP window appears.



     3. Enter an IP address selected from previous steps outputs. The system returns the following information:



     4. Click Create.

   • Enrich URL

     1. To return data for a URL, select Enrich URL.

     2. Click Add.

        The Enrich URL window appears.



     3. Enter a URL selected from previous steps outputs. The system returns the following information:



     4. Click Create.

   • Enrich File

     1. To return data for a file hash, select Enrich File.

     2. Click Add.

        The Enrich File window appears.



     3. Enter a file hash selected from previous steps outputs. The system returns the following information:



     4. Click Create.

Conditions

Conditions are used to create branches in the automation flow based on logical evaluations.

1. In Conditions tab, select Condition.

2. Click Add.

   The My Condition window appears.



3. Specify these:

   1. Expression 1

   2. Operation:

      • Equal to

      • Not equal to

      • Greater than

      • Greater than or equal to

      • Less than

      • Less than or equal to

   3. Expression 2

   Both expressions can use static values or outputs from previous steps. Define what happens when the condition is met or not met.



Actions

1. In Actions tab, select Run Automation.

   1. Click Add.

      The Run Automation window appears.



   2. In the General tab, from the Automation name list, select one of these and specify the automation parameters and Input:

      • Block External IP:

        • Block reason

        • IP block duration

        • Notification message

        • Notification message (not added)

        • Notification subject

        • Notification subject (not added)

        • Block IP

        • Notification profile (IP was blocked)

        • Notification profile (IP was not blocked)

      • Quarantine Internal IP

        • Quarantine reason

        • IP quarantine duration

        • Notification message

        • Notification message (not added)

        • Notification subject

        • Notification subject (not added)

        • Open ticket if device IP was quarantined

        • Quarantine IP

        • Notification profile (Device IP was quarantined)

        • Notification profile (Device IP was not quarantined)

      • Open ticket and notify

        • Open ticket

        • ServiceNow ticket type

        • Jira ticket type

        • Notification subject

        • Notification message

        • Ticket subject

        • Ticket description

        • Notification profile

      • Isolate endpoint device

        • Device isolation duration

        • Notification subject

        • Notification message

        • Open ticket if device was isolated

        • type

        • deviceName

        • deviceIp

        • machineId

        • comment

        • Notification profile

   3. Click Create.

2. Select Add to list and then click Add:

   The Add to list window appears.



   1. Specify these:

      1. IP/URL/Domain/Hash - A value of type IP, URL, Domain, or Hash from the outputs of previous steps.

      2. Add to list

      3. Unless in list

      4. Duration

      5. Reason

   2. Click Create.

3. Select Create IOC Management Indicators and then click Add:

   The Create IOC Management Indicators window appears.



   1. Specify these:

      1. Indicators

      2. Expiration in days

   2. Click Create.

Exporting/Importing Automation

You can export and import an automation in json format.

1. To export an automation:

   • In the card view, click in an automation card that you want to export and then click Export.



   • In the table view, select the automation that you want to export and then click Export.



2. To import an automation, click New.



3. Select Import automation file.

   The Import automation file window appears.



4. Choose the .json file from your local drive.

5. Click Apply.

Cloning Existing Automation

You can clone an existing automation for editing and customization. To do that:

• In the card view, click in an automation card that you want to clone and then click Clone.



• In the table view, select the automation that you want to clone and then click Clone.



Creating Automation by Infinity AI Copilot

Infinity AI Copilot allows you to create custom Playblocks automations using a natural language prompt. You can design fully tailored workflows from scratch with a single prompt.

It supports all standard automation steps, except these:

• Scheduled Trigger

• Run Automation

It can generate automations based on Quantum logs and supports these log trigger conditions:

• Count Logs

• Suppress Logs

• IP Geolocation

Notes: The AI customization supports only on Quantum Management. All validations applicable to custom automations also apply to those created by Infinity AI Copilot. For example, the automation must start with a trigger and exclude unsupported steps. This feature is limited to creating new automations only and cannot edit existing ones or perform other Playblocks actions. General queries about Playblocks are not supported. Infinity AI Copilot enables you to create automations with natural language prompts, requiring no manual setup, while the Create a Custom Automation provides a drag-and-drop interface, requiring users to manually configure each step. Both methods achieve the same automation result.

To create an Infinity AI Copilot automation:

Note - Infinity AI Copilot automation creation is supported only in the EU and US regions.

1. Access Infinity Playblocks and go to Automations.

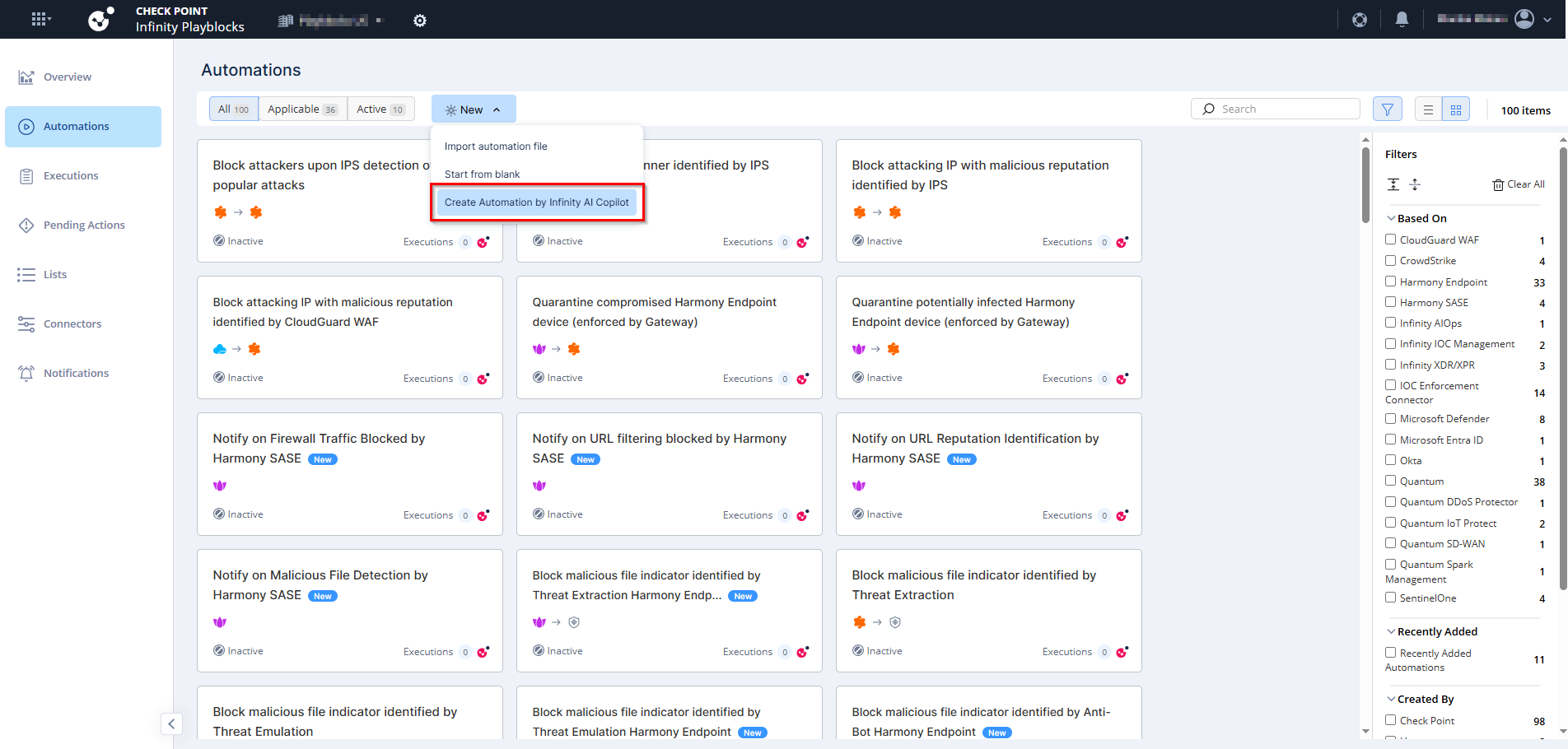

2. Click New and select Create Automation by Infinity AI Copilot.



   The Generate new automation using Infinity AI Copilot window appears.

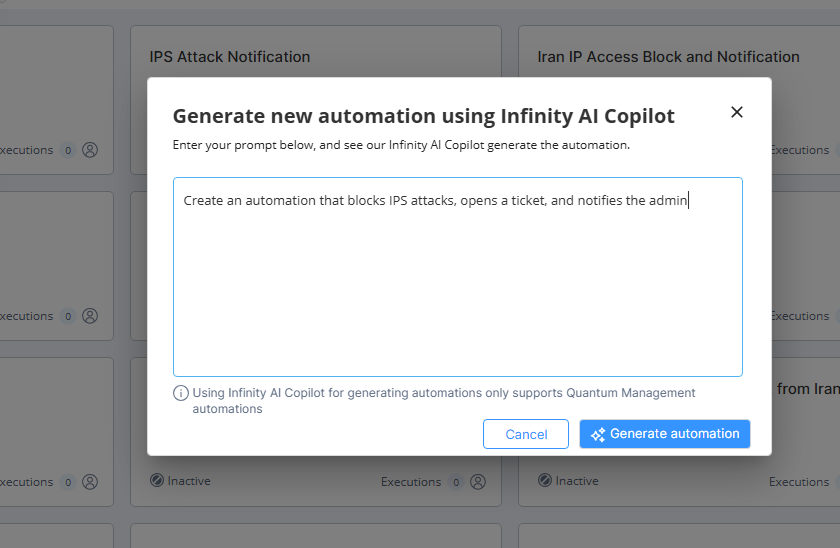

3. Enter your prompt, for example, Create an automation that blocks IPS attacks, opens a ticket, and notifies the admin.



4. Click Generate automation.

   The system generates the requested automation.

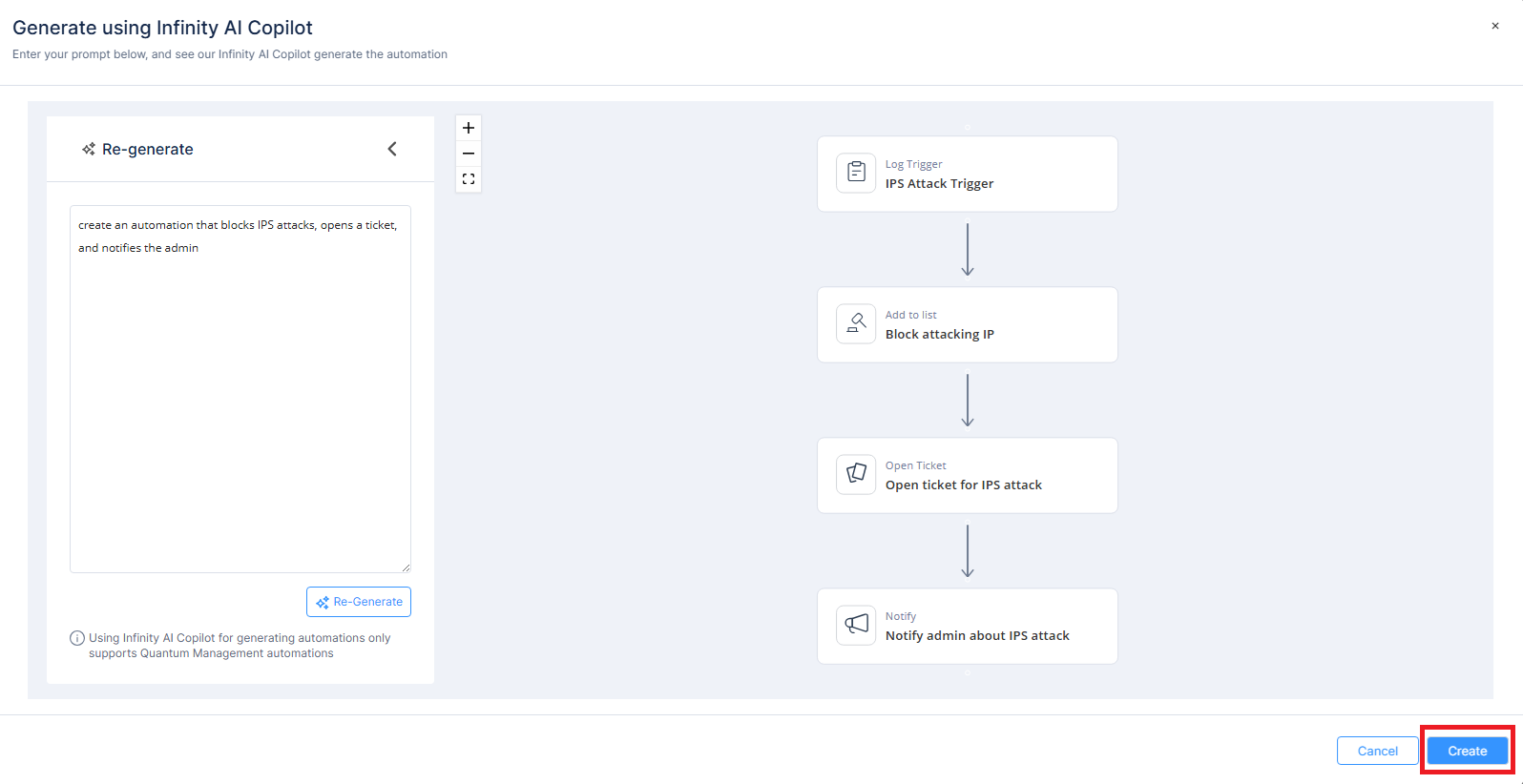

5. Click Create.

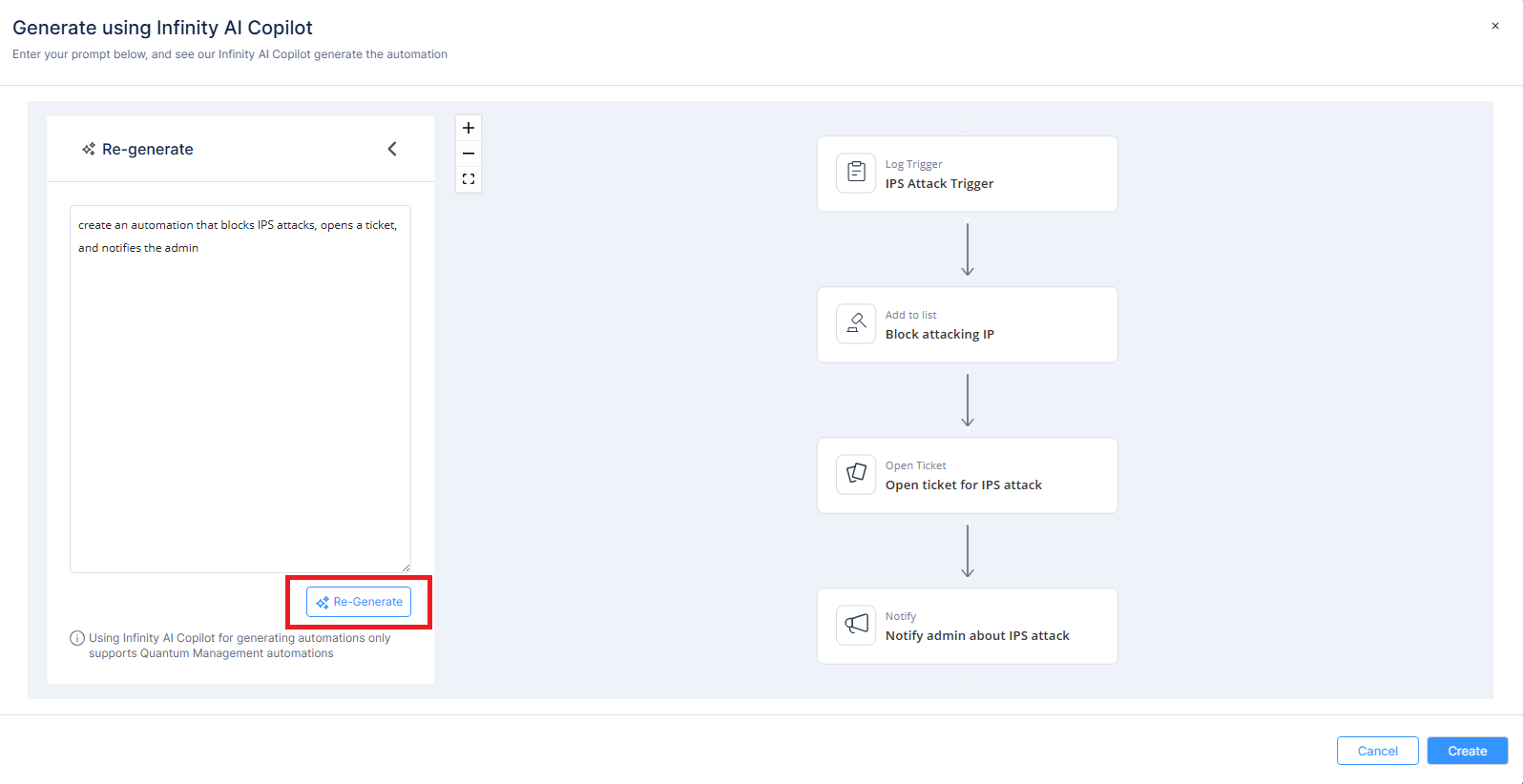

6. To modify a step(s), in the Re-generate section, rephrase the prompt you entered and click Re-Generate.



Note - To know how to use custom automation step schema, see Appendix G - Using Custom Automation Step Schemas.

Automation Capabilities

Out-of-the-Box Automations

Use Case	Default automations provided by the system.
Abilities	Update automation parameter values Update notification profiles Reset parameters
Editing Restrictions	Cannot edit steps Cannot change structure or metadata

Cloned Automations – Not Exported but Exportable

Use Case	Cloned from out-of-the-box automations without structural changes.
Abilities	Update metadata and step content Add/remove steps from the end of the graph Reset parameters
Editing Restrictions	Cannot change structure in the middle of the graph Notification profile menu is unavailable

Fully Custom or Modified Automations – Exported and Exportable

Use Case	Cloned and modified, or created from blank, import, or AI.
Abilities	Full metadata and step updates Add/remove steps from the end of the graph
Editing Restrictions	Cannot reset parameters Notification profile menu is unavailable

Cloned Automations – Not Exported or Exportable

Use Case	Limited to 3 default automations: Notify on high rate of blocked connections Repeated Remote Access login to expired accounts Repeated Remote Access login failures (password-only)
Abilities	Update metadata Update step content Reset parameters
Editing Restrictions	Cannot add/remove steps Notification profile menu is unavailable

Replace Trigger

Replace Trigger allows you to change the current trigger type in your automation to a different one.

Choose trigger type:

• Log Trigger – Starts the automation when a specific log event occurs.

• Webhook Trigger – Starts the automation when data is sent to a webhook endpoint.

• Scheduled Trigger – Starts the automation based on a predefined schedule (for example, daily or hourly).

To replace a trigger:

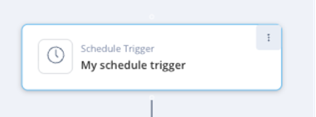

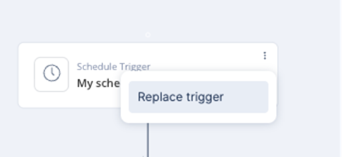

1. In the trigger step, click .



2. Click Replace Trigger.

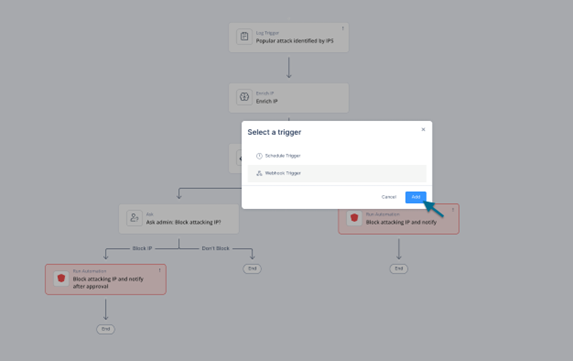

3. Choose the new trigger type and click Add.

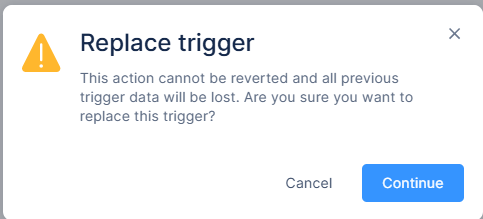

   A warning message appears



   Note - Replacing a trigger permanently deletes all previous trigger data. This action cannot be undone.

4. Click Continue.

Configuring the New Trigger

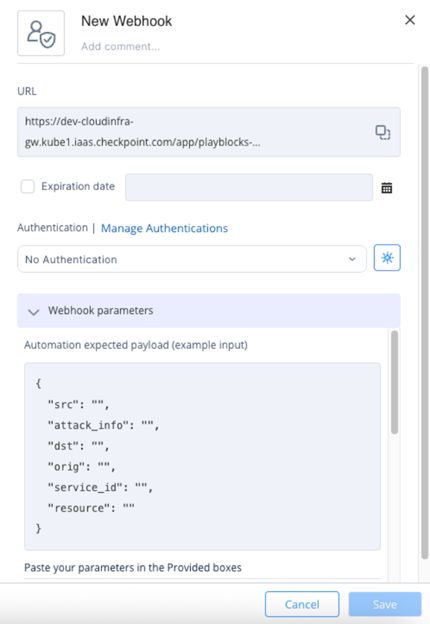

• The system creates the new trigger immediately for a Webhook Trigger.

• For all other trigger types, enter the required parameters in the trigger window and click Save.

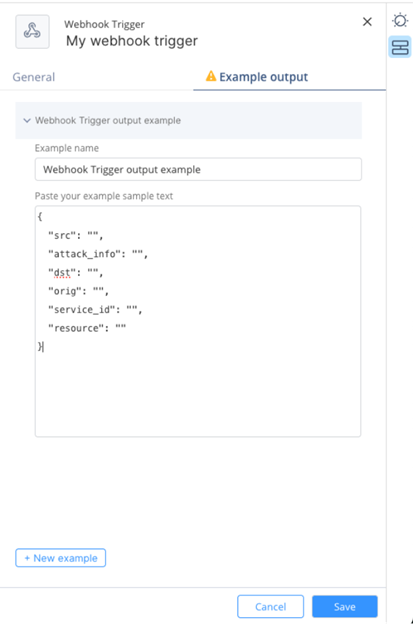

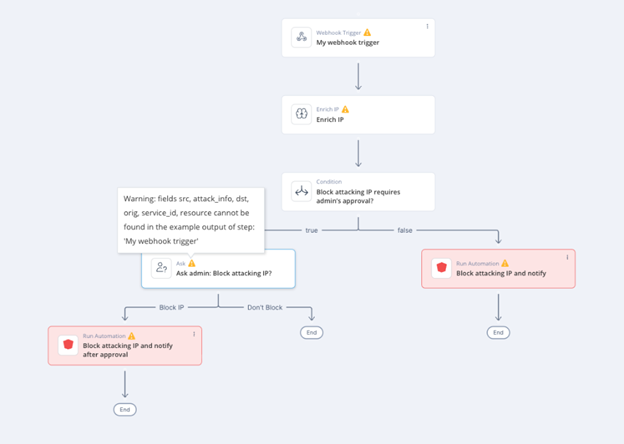

Note - When you replace a trigger, the Example Output associated with the previous trigger is removed. Any steps in the automation that rely on fields from that output displays validation errors.

Resolving Validation Errors

When you replace a trigger, steps that reference fields from the previous trigger may display validation errors. These errors occur because the referenced fields are not available in the new trigger’s output example.

To resolve these errors:

1. Remove unused references

   1. Open the step that shows the validation error.

   2. Remove any references to fields from the previous trigger that are no longer required.

   3. Save the step.

2. Update output example and references

   1. Open the new trigger configuration.

   2. In the Example Output, add all required fields that are referenced by dependent steps.

   3. If the new trigger uses different field names, update the references in the dependent steps to match the new field names.

   4. Save the changes.

Notes -

• All references in dependent steps must match the fields defined in the trigger’s Example Output.

• You can either add old field names to the new example output or update the dependent steps to use the new field names.
