Dual-stack (IPv4/IPv6) Architecture inCloudGuard Network for Azure VMSS

Note - The CloudGuard Network for Azure VMSS dual-stack (IPv4/IPv6) deployment requires CME Take 320 or higher.

Azure's IPv6 connectivity makes it easy to provide dual-stack (IPv4/IPv6) Internet connectivity for applications hosted in Azure. It allows for simple deployment of VMs with load-balanced IPv6 connectivity for both inbound and outbound initiated connections.

Dual-Stack Architecture

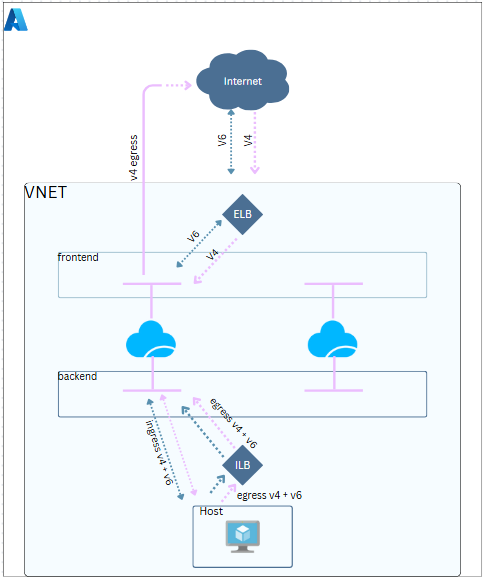

The dual-stack configuration uses two network interfaces with both IPv4 and IPv6 addresses.

• eth0 (External) - Dual-stack interface with a private IPv6 and public and private IPv4.
• eth1 (Internal) - Internal-only interface with a private IPv6 and IPv4, no public exposure.

Traffic Flows

Inbound Traffic Configuration

Configure load balancing rules for IPv6 traffic. Do these steps:

1. In Azure portal, go to Load balancers and select [frontend-lb].

2. Go to Settings> Load balancing rules.

3. Click Add.

4. Configure these parameters:

   1. Set IP version to IPv6.

   2. Set Frontend IP address to the IPv6 address.

   3. Set Backend pool to frontend-lb-pool-v6.

   4. Set Health probe to TCP on 8117.

   5. Set Session persistence to Source IP and protocol (recommended).

The inbound traffic follows this path:

1. Traffic originates from the Internet.

2. Traffic reaches the External Load Balancer (public IPv6 address).

3. Traffic is forwarded to the Security Gateway Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources. (eth0 interface).

4. The Security Gateway applies policy rules and NAT as required.

5. Traffic is sent to the Host through the eth1 interface.

6. Return traffic goes back through the Security Gateway.

7. The Security Gateway forwards the return traffic to the External Load Balancer.

8. The External Load Balancer sends the response to the Internet.

Configure the Inbound NAT rule Set of traffic parameters and other conditions in a Rule Base (Security Policy) that cause specified actions to be taken for a communication session.:

Original Source	Original Destination	Original Services	Translated Source	Translated Destination	Translated Service
All_Internet	External LB	Any	H LocalGatewayInternal	Host	= Original

Outbound Traffic Configuration

Configure outbound rules for IPv6 traffic. Do these steps:

1. In Azure portal, go to Load balancers and select [frontend-lb].

2. Go to Settings> Outbound rules.

3. Click Add.

4. Configure these parameters:

   1. Set IP version to IPv6.

   2. Set Frontend IP address to the IPv6 address.

   3. Set Backend pool to frontend-lb-pool-v6.

The outbound traffic follows this path:

1. Traffic originates from the Host.

2. Traffic is sent to the Internal Load Balancer.

3. Traffic reaches the Security Gateway through the eth1 interface.

4. The Security Gateway applies Hide NAT on the eth0 interface.

5. Traffic is forwarded to the External Load Balancer (using Outbound rules).

6. The External Load Balancer sends the traffic to the Internet.

Configure the Outbound NAT rule:

Original Source	Original Destination	Original Services	Translated Source	Translated Destination	Translated Service
Host Server (or Host Clients)	All_Internet	Any	H LocalGatewayExternal	= Original	= Original

Health Probe Configuration for IPv6

A workaround is required to make Azure health probes work with IPv6. Complete these steps to add the required access rule:

1. Create Custom Service. For that:

   1. Go to New > More > Service > Other Service.

   2. Set Name to HP_service_V6.

   3. Set IP Protocol to 6.

   4. Go to Advanced settings.

   5. Set Match to IPV6_VER tcp,dport=8117,direction=0.

   6. Set Action to (call KFUNC_XLATE_FOLD <443, 2; ::> or drop).

2. Add Access Rule. Use these parameters:

#	Name	Source	Destination	VPN	Services	Action	Track
4	hp - both elb and ilb	fe80::1234:5678:9abc	LocalGatewayExternal, LocalGatewayInternal	Any	HP_service_V6	Accept	None

Validation

• To test IPv6 connectivity through the External Load Balancer, run this command:

  curl -g -6 http://[<External LB IPaddress>]

  Replace <External LB IP address> with the actual IPv6 address of your External Load Balancer.

• To verify outbound IPv6 connectivity from the server, run these commands:

  curl -6 -I http://example.com
curl -6 http://api64.ipify.org ; echo

  The first command tests connectivity to an external website. The second command shows the public IPv6 address that external servers see.

Limitations

• You cannot assign public IPv6 addresses to instances.

• VPN connections over IPv6 are not supported.
