Smart-1 6000-XL DIMM Configuration
The Smart-1 6000-XL Base Security Management Appliance has a default memory configuration of 192GB: 12x16GB, with twelve DIMMs.
The memory socket numbers, shown in the configuration diagrams, are marked on the cooling shroud and align with the respective memory sockets.

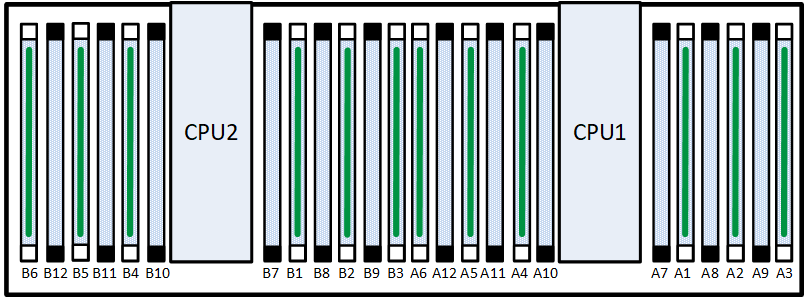

Default Configuration for Smart-1 6000-XL Base
(Top View - front of the Security Management Appliance is at the bottom of the diagram)
|
|
Best Practice - We recommend that you keep the DIMMs in the socket numbers as specified in the Default Configuration diagram. Changing the default configuration placement may impact performance. |
Upgrading the Configuration from 192GB to 384GB
|
To upgrade from |
To upgrade |
Use DIMMs |
Procedure |
Sockets |
|---|---|---|---|---|
|
192GB |
384GB |
24x16GB |
Install an additional twelve 16GB DIMMs. See the Upgraded Configuration diagram for the socket numbers. |
24 out of 24 |
Upgraded Configuration from 192GB to 384GB in Smart-1 6000-XL
(Top View - front of the Security Management Appliance is at the bottom of the diagram)
