40 Gb Line Card (QSFP+)

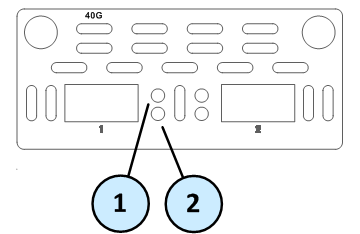

Front Panel

Legend

Item

Component

Description

1

Link speed LED

  • Off

  • On (Green) - 40 Gbit/s data rate is selected

2

Port activity LED

  • Off - No activity

  • On (Amber) - Link exists

  • Blinking (Amber) - Activity

Installing and Removing Expansion Line Cards

See the relevant Getting Started Guide for your model (sk96246).

  1. Turn off the Appliance.

  2. Remove the power cords from the Power Supply Units.

  3. Loosen the screws on the dummy panel on the front of the Appliance.

  4. Remove the dummy panel.

  5. Insert the Expansion Line Card into the expansion slot.

  6. Push until the card clicks into position.

    Note - Make sure the card is firmly inserted on all sides and that the Expansion Line Card panel is flat against the appliance's front panel.

  7. Tighten the screws on the Expansion Line Card.

  8. Turn on the Appliance.

See the Getting Started Guide for your model (sk96246).

  1. Turn off the Appliance.

  2. Remove the power cords from the Power Supply Units.

  3. Loosen the captive screws on the Expansion Line Card.

  4. Holding the screws, pull the Expansion Line Card out of the expansion slot.

  5. Put the dummy panel on the Expansion Line Card.

  6. Tighten the screws on the dummy panel.

  7. Turn on the Appliance.

For more information, see sk116742.
