1 Gb Line Cards (SFP and RJ45)

Important - This 1 Gb line card is not supported in Maestro configuration.

Front Panel

Legend
Line Card Description

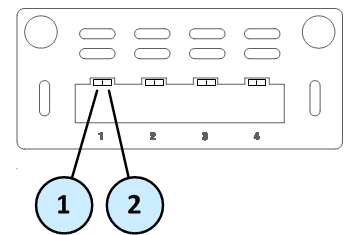

4 x 1 GbE SFP

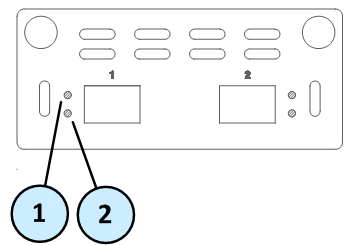

2 x 1 GbE SFP

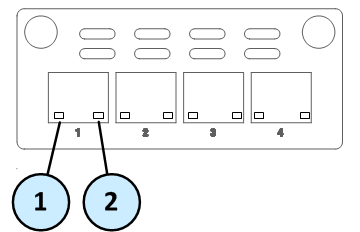

4 x 1 GbE RJ45

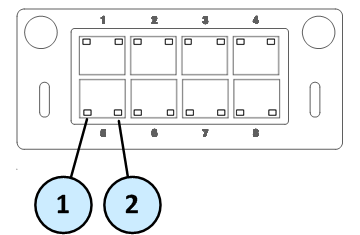

8 x 1 GbE RJ45
Legend

Item

Component

Description

1

Port activity LED

  • Off - No activity

  • On (Green) - Link exists

  • Blink (Green) - Activity

2

Link speed LED

For RJ45 ports:

  • Off - 10 Mbit/s data is selected

  • On (Green) - 100 Mbit/s data is selected

  • On (Amber) - 1000 Mbit/s data is selected

For SFP ports:

  • Off

  • On (Amber) - 1 Gbit/s data rate is selected

Installing and Removing Expansion Line Cards

See the relevant Getting Started Guide for your model (sk96246).

  1. Turn off the Appliance.

  2. Remove the power cords from the Power Supply Units.

  3. Loosen the screws on the dummy panel on the front of the Appliance.

  4. Remove the dummy panel.

  5. Insert the Expansion Line Card into the expansion slot.

  6. Push until the card clicks into position.

    Note - Make sure the card is firmly inserted on all sides and that the Expansion Line Card panel is flat against the appliance's front panel.

  7. Tighten the screws on the Expansion Line Card.

  8. Turn on the Appliance.

See the Getting Started Guide for your model (sk96246).

  1. Turn off the Appliance.

  2. Remove the power cords from the Power Supply Units.

  3. Loosen the captive screws on the Expansion Line Card.

  4. Holding the screws, pull the Expansion Line Card out of the expansion slot.

  5. Put the dummy panel on the Expansion Line Card.

  6. Tighten the screws on the dummy panel.

  7. Turn on the Appliance.
