Example Diagrams of the Intra-DPU Network

Example Diagram - Entire Workload Protection with Out-of-Band Management

In this example diagram:

  • The "Host Interface 0" is "pf0hpf".

  • The "Host Interface 1" is "pf1hpf".

The Scalable Function (SF) pairs in this example diagram are:

  • "pf0sf0" (Scalable Function for Data Center Network) and "pf0sf1" (Scalable Function for Host Server).

  • "pf1sf0" (Scalable Function for Data Center Network) and "pf1sf1" (Scalable Function for Host Server).

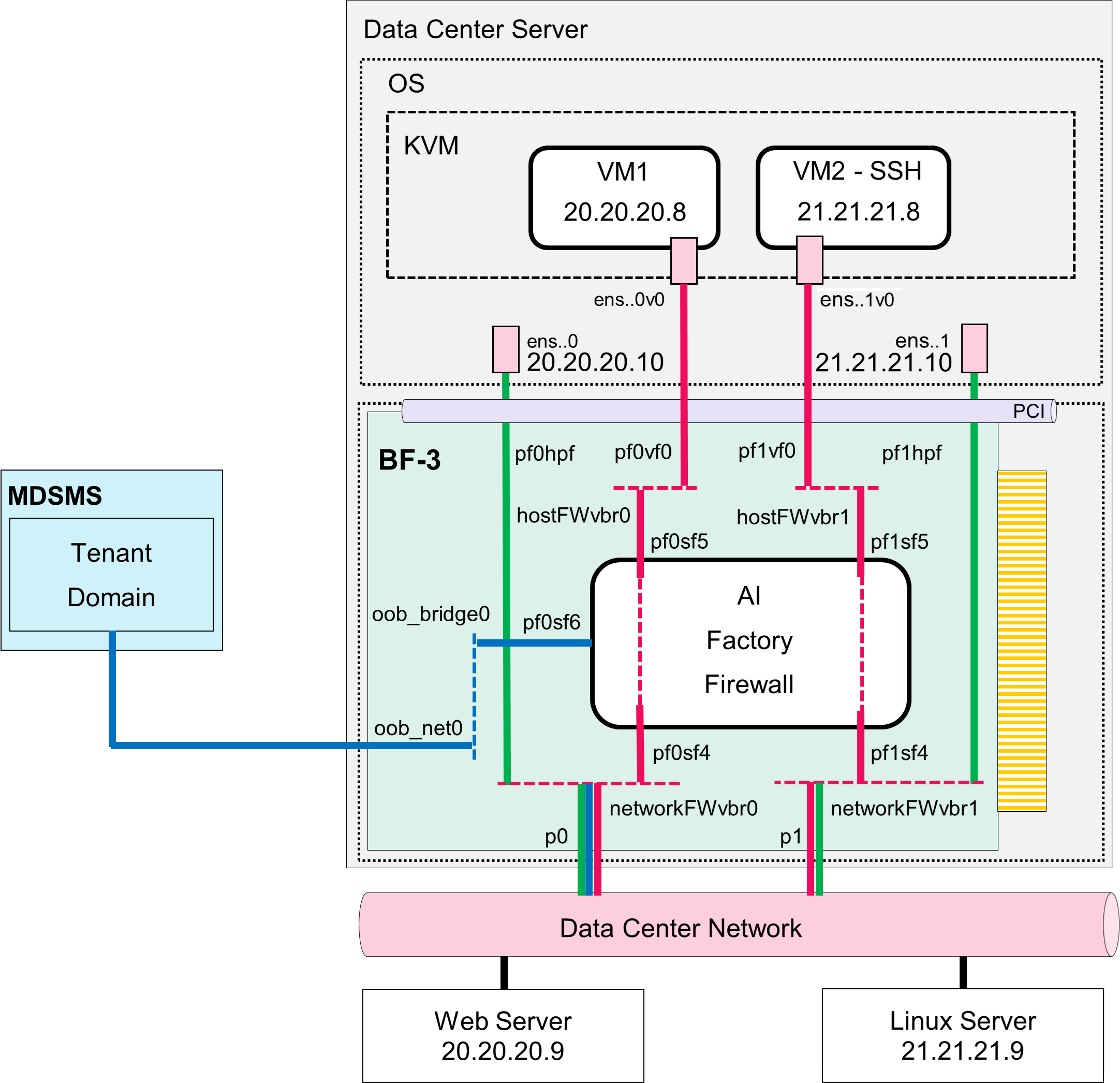

Example Diagram - Specific Workload Protection

In this example diagram:

  • The "Host Interface 0" is "pf0vf0" (representing Virtual Function 0 of "ens...0" - "ens...0v0").

    The "Host Interface 0" destination IP address is 20.20.20.8.

  • The "Host Interface 1" is "pf1vf0" (representing Virtual Function 0 of "ens...1" - "ens...1v0").

    The "Host Interface 1" destination IP address is 21.21.21.8.

The Scalable Function (SF) pairs in this example diagram are:

  • "pf0sf4" (Scalable Function for Data Center Network) and "pf0sf5" (Scalable Function for Host Server).

  • "pf1sf4" (Scalable Function for Data Center Network) and "pf1sf5" (Scalable Function for Host Server).
