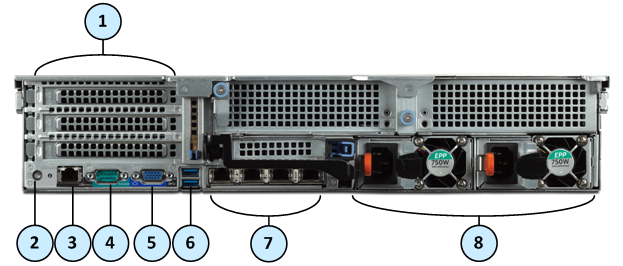

Rear Panel

Item

Component

Description

1

PCIe expansion slots

The expansion slots enable you to connect PCI Express expansion cards. For more information on the expansion cards that are supported on your appliance, see Quantum Smart-1 600-M/6000-L/6000-XL Appliances Line Cards.

2

System notification LED

Off - Indicates that the appliance is turned on and the system is healthy.

Blinking amber - Indicates that the system is experiencing a fault. Check the System Event Log, see the /var/log/messages files or run the dmesgcommand from Expert mode. For more information about error messages, contact Check Point Technical Support.

3

LOM (iDRAC)

Enables LOM (iDRAC) management. For more information, see sk122914.

4

Serial console port

Enables you to connect a serial device to the appliance.

5

VGA port

Enables you to connect a display device to the appliance.

6

USB 3.0 ports

The USB ports are 9-pin and USB 3.0 compliant. These ports enable you to connect USB devices to the appliance.

7

Onboard network ports

4 Ethernet ports:

  • The appliance connects to the network (Ethernet ports 1, 2, and 3). See Integrated NIC LEDs.

  • Manage the appliance (MGMT port).

8

Power Supply Units

For more information about the PSU configurations, see:

Quantum Smart-1 6000-L/6000-XL Replacing AC Power Supply Units
Quantum Smart-1 6000-L/6000-XL Replacing DC Power Supply Units.
