VPN Domain Advanced Configuration

If a third-party peer VPN Gateway excludes its external IP address from the VPN Domain, you must configure the Check Point VPN Gateway to exclude its own external IP addresses from the VPN Domain.

1. From the left navigation panel, click Gateways & Servers.

2. Double-click the Security Gateway Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources. / Cluster Two or more Security Gateways that work together in a redundant configuration - High Availability, or Load Sharing. object.

3. From the left tree, expand Network Management and click VPN Domain.

4. In the Advanced section, select Exclude gateway's external IP addresses from the VPN Domain.

5. Click OK.

6. Install the Access Control policy on all Security Gateways, that participate in the same VPN Communities as this VPN Gateway / Cluster object.

• "Security Gateway A" ("Partner A") is part of "Community-1".

• "Security Gateway B" ("Partner B") is part of "Community-2".

• "Security Gateway C" (Corporate Branch) is part of "Community 1" and "Community 2".

• The network behind "Security Gateway C" - 10.2.2.0 is split into 2 networks using the 255.255.255.128 subnet mask.

In this scenario, the administrator limits the access from "Security Gateway A" in "Community 1" to some of the resources behind Security Gateway C, which is also part of "Community 1".

To allow access to the required resources from "Security Gateway A" to resources protected by "Security Gateway C", the administrator configures an Encryption Domain per the specific VPN Community.

For "Security Gateway C", the administrator must configure two Encryption Domains - one for "Community 1" and one for "Community 2".

The access is limited to the specific Encryption Domain - network 10.2.2.0/25.

Required configuration:

1. Open the Start VPN Community object.

2. From the left tree, click Gateways.

3. In the Center Gateways section, double-click the center Security Gateway that participates in more than one VPN community.

   In this example, "Security Gateway C".

4. In the VPN Domain section, select the Override.

   Select (or create) the Network object that represents the network that we allow "Security Gateway B" ("Partner B") to access.

   In this example, Network address is 10.2.2.0 and Net Mask is 255.255.255.18



5. Click OK.

Using the same setup, you can use the Encryption Domain per Community configuration to allow access between "Host 1" and "Host 2" in both directions.

The configuration changes are applied to the Encryption Domain of "Security Gateway C" for each relevant VPN Communities. In this example, "Community 1" and "Community 2".

Required configuration:

1. Create a new host ("Host 2" behind "Security Gateway B") to represent the Encryption Domain of "Security Gateway C" to publish for "Security Gateway A".

2. Create a new host ("Host 1" behind "Security Gateway A") to represent the Encryption Domain of "Security Gateway C" to publish for "Security Gateway B".

3. Create a new Network Group to include the current Encryption Domain of "Security Gateway C" and the additional host ("Host 2") for "Community 1".

4. Create a new Network Group to include the current Encryption Domain of "Security Gateway C" and the additional host ("Host 1") for "Community 2".

5. For "Community 1", change the Encryption Domain for "Security Gateway C", use the new Network Group created in step 3.

6. For "Community 2", change the Encryption Domain for "Security Gateway C", use the new Network Group created in step 4.

This type of configuration "tricks" the satellite Security Gateways to think that the destination host is part of "Security Gateway C" Encryption Domain. Therefore, the satellite Security Gateways encrypt the packets that they send to the center Security Gateway. The center Security Gateway decrypts the packets, re-encrypts them, and then re-routes them to the other satellite Security Gateways.

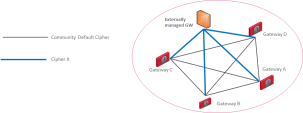

1. Open the VPN Community object.

2. From the left tree, click Encryption.

3. In the section Override Encryption for Externally Managed Gateways, click the + button.

   The Granular Encryption window opens.

4. In the Encryption Context section:

   The Security Gateways you select in this section use Granular Encryption.

   1. In the Internal Gateway field, select one of these:


      • *Any - All locally managed Security Gateways that participate in this VPN Community use Granular Encryption to communicate with the External Gateway.

      • Specific Security Gateway / Cluster object - The selected Security Gateway / Cluster uses Granular Encryption to communicate with the External Gateway.

      Note - This field shows only the Security Gateways that are already added to this VPN Community object. You can add a Security Gateway to this VPN Community on the Gateways page.

   2. In the External Gateway field, select an Interoperable Device that represents the External Gateway.


   Note - If Granular Encryption is set for a specific locally managed Security Gateway in addition to the use of "* Any" in a different Encryption Context, then the Granular Encryption settings apply.

5. In the Encryption Settings section, configure the required settings for the VPN communication between the selected peers.

6. Click OK to close the Granular Encryption window.

7. Click OK to close the VPN Community object.

8. Install the Access Control policy on all Security Gateways, that participate in this VPN Community.
