Appendix

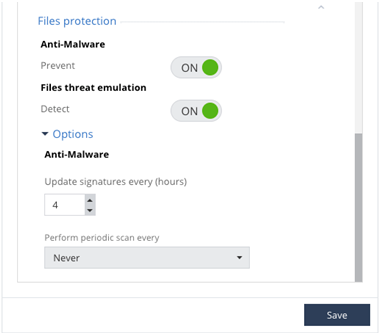

1. Go to the Policy Page.

2. In the right pane, click Web & Files Protection.

3. In the Perform periodic scan every field, select Never.



4. Click Save.

5. Install policy.

1. In Windows Registry, configure the value 0x0b for the AVSchedOf key:

   • On 64-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\CheckPoint\EndPoint Security\Anti-Malware\AVSchedOf=(DWORD)0x0b

   • On 32-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\CheckPoint\EndPoint Security\Anti-Malware\AVSchedOf=(DWORD)0x0b

2. Restart the machine to restore Self-Protection.

   Use the Compliance Check Point Software Blade on a Management Server to view and apply the Security Best Practices to the managed Security Gateways. This Software Blade includes a library of Check Point-defined Security Best Practices to use as a baseline for good Security Gateway and Policy configuration. Software Blade Specific security solution (module): (1) On a Security Gateway, each Software Blade inspects specific characteristics of the traffic (2) On a Management Server, each Software Blade enables different management capabilities. to change the registry. See sk132932.

Create a Shared Folder

1. Create a folder to store the shared signatures.

2. Share the folder and grant read access to members of the Domain Computers' group.

Configure the Windows Registry Keys

1. Configure the value 0x01 for the key VdiSignatureServer (to configure the machine as "Shared Signatures Server"):

   • On 64-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\CheckPoint\Endpoint Security\Anti-Malware\VdiSignatureServer=(DWORD)0x01

   • On 32-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\CheckPoint\Endpoint Security\Anti-Malware\VdiSignatureServer=(DWORD)0x01

2. Configure the path to the shared signatures folder in the key AVSharedBases:

   • On 64-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\CheckPoint\Endpoint Security\Anti-Malware\AVSharedBases=(SZ)"DISK:\\Path\\To\\Shared\\Folder"

   • On 32-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\CheckPoint\Endpoint Security\Anti-Malware\AVSharedBases=(SZ)"DISK:\\Path\\To\\Shared\\Folder"

   Notes: If you do not configure the path, then the default shared folder is: C:\ProgramData\CheckPoint\Endpoint Security\Anti-Malware\bases\shared The default shared folder exists after the first successful update.

3. Reboot the machine to restart the Anti-Malware blade.

1. Download the Shared Signatures Server Configuration script file.

2. Execute the script on the Signature Server and follow the instructions.

3. Make sure the script finishes successfully.

4. Make sure you reboot the machine to restart the Anti-Malware blade.

1. Disable the Anti-Malware Periodic Scan. See the instructions above.

2. In Windows Registry, configure the value 0x01 for the key AVBasesScheme (to enable the "Shared Signatures" scheme):

   • On 64-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\CheckPoint\Endpoint Security\Anti-Malware\AVBasesScheme=(DWORD)0x01

   • On 32-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\CheckPoint\Endpoint Security\Anti-Malware\AVBasesScheme=(DWORD)0x01

3. In Windows Registry, configure the path to the shared signatures folder in the key AVSharedBases:

   • On 64-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\CheckPoint\Endpoint Security\Anti-Malware\AVSharedBases=(SZ)"\\Server\FolderWithSharedSignatures"

   • On 32-bit operating system:

     HKEY_LOCAL_MACHINE\SOFTWARE\CheckPoint\Endpoint Security\Anti-Malware\AVSharedBases=(SZ)"\\Server\FolderWithSharedSignatures"

   Notes: If you do not configure the path, then the default shared folder is: C:\ProgramData\CheckPoint\EndpointSecurity\Anti-Malware\bases\shared The default shared folder exists after the first successful update.

4. Reboot the machine or restart the Anti-Malware process.

1. Download the Golden Image Configuration script file.

2. Execute the script on the Golden Image and follow the instructions.

3. Make sure the machine is rebooted.
