QoS Deployment

Notes: The QoS Check Point Software Blade on a Security Gateway that provides policy-based traffic bandwidth management to prioritize business-critical traffic and guarantee bandwidth and control latency. blade is not supported in LSM Profile objects for R80.20 Quantum Spark Appliances (15xx/1600/1800). "Pending" policy installation state is not supported for QoS policy installation on R80.20 Quantum Spark Appliances (15xx/1600/1800).

QoS can manage up to the maximum number of interfaces supported by the Security Gateway Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources., subject to these restrictions:

1. All of the traffic on a managed line must go through the gateway.

2. Each managed line must be connected (directly or indirectly via a router) to a separate physical interface on the QoS machine. Two managed lines cannot share a physical interface to the QoS gateway, and two network segments cannot connect to the same router.

For example, in the configuration depicted in the following diagram, the routers can pass traffic to each other through the hub without the QoS gateway being aware of the traffic.

Item	Description
1	Internal network
2	Security Gateway with QoS enabled
3	Hub
4	Routers
5	Internet

You cannot manage two networks connected to a single router since traffic may pass from one line to the other directly through the router, without the QoS gateway being aware of the traffic:

Item	Description
1	Internal network
2	Security Gateway with QoS enabled
3	Routers
4	Internet

In a correct configuration, the routers connect directly to the QoS gateway.

Sample Bandwidth Allocations

Frame Relay Network

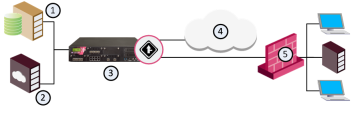

Item	Description
1	Database server
2	Web server
3	Security Gateway with QoS enabled
4	Internet
5	Branch office

The previous diagram shows that the branch office communicates with the central site and the opposite. It only communicates directly with the Internet through the central site. The Web server makes important company documents available to the branch office, and the database server supports the company's mission-critical applications.

The problem is that most of the branch office traffic is internal and external Web traffic, and the mission-critical database traffic suffers as a result. The network administrator has considered upgrading the 56K lines, but is reluctant to do so, not only because of the cost but also because upgrading would probably not solve the problem. The upgraded lines would still be filled mostly with Web traffic.

The goals are as follows:

1. Allocate the existing bandwidth so that access to the database server gets the largest share.

2. Take into account that the branch offices are connected to the network by 56K lines.
