ClusterXL Software Blade

ClusterXL is a Check Point software-based clusterClosed Two or more Security Gateways that work together in a redundant configuration - High Availability, or Load Sharing. solution for Security GatewayClosed Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources. redundancy and Load Sharing. A ClusterXL Security Cluster contains identical Check Point Security Gateways.

  • A High Availability Security Cluster ensures Security Gateway and VPN connection redundancy by providing transparent failover to a backup Security Gateway in the event of failure.

  • A Load Sharing Security Cluster provides reliability and also increases performance, as all members are active.

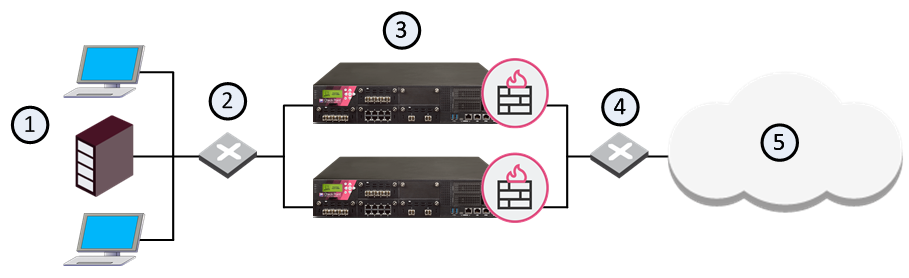

Item

Description

1

Internal network

2

Switch for internal network

3

Security Gateways with ClusterXL Software BladeClosed Specific security solution (module): (1) On a Security Gateway, each Software Blade inspects specific characteristics of the traffic (2) On a Management Server, each Software Blade enables different management capabilities.

4

Switch for external networks

5

Internet

For more information, see the R81.20 ClusterXL Administration Guide.

Note - This Software Blade does not apply to Scalable Platforms.
