AD Query

AD Query Check Point clientless identity acquisition tool. It is based on Active Directory integration and it is completely transparent to the user. The technology is based on querying the Active Directory Security Event Logs and extracting the user and computer mapping to the network address from them. It is based on Windows Management Instrumentation (WMI), a standard Microsoft protocol. The Check Point Security Gateway communicates directly with the Active Directory domain controllers and does not require a separate server. No installation is necessary on the clients, or on the Active Directory server. is an easy to configure, clientless tool to get identities. Its function is based on Active Directory integration, and it is fully transparent to the user.

AD Query works when:

• An identified user or computer tries to get an access to a resource that creates an authentication request. For example, when a user logs in, unlocks a screen, shares a network drive, reads emails through Exchange, or uses an Intranet portal.

• You select AD Query to get identities.

In this technology, you make a query for the Active Directory Security Event Logs and extract the user and computer mapping to the network address from them. It is based on Windows Management Instrumentation (WMI), a standard Microsoft protocol. The Identity Awareness Check Point Software Blade on a Security Gateway that enforces network access and audits data based on network location, the identity of the user, and the identity of the computer. Acronym: IDA. Gateway communicates directly with the Active Directory domain controllers and does not need a special server.

No installation is necessary on the end clients, or on the Active Directory server.

The system generates a Security Event Log entry when a user or a computer connects to a network resource. AD Query extracts user and computer identity information from the Active Directory Security Event Logs. Security Event Logs are not generated when a user logs out because Active Directory cannot detect this action.

These are limitations of AD Query:

• User/IP association timeout - After a default period of network inactivity, a user session closes automatically. The user must connect to the Identity Awareness Captive Portal A Check Point Identity Awareness web portal, to which users connect with their web browser to log in and authenticate, when using Browser-Based Authentication. and log in again.

• Many user accounts connected from the same IP address - AD Query cannot detect when a user logs out. Therefore, more than one user can have open sessions from the same IP address. When this occurs, the permissions for each account stay active until the session reaches the value configured in the "User/IP association timeout". In this scenario, it is possible for users to access network resources for which they do not have permissions.

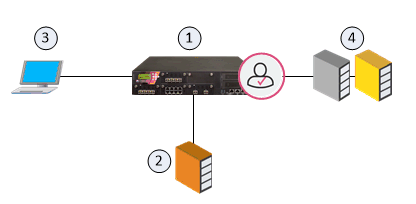

How AD Query Works - Firewall Rule Base

Item	Description
1	Identity Awareness Gateway
2	Active Directory Domain Controller
3	An end-computer, on which a user with Active Directory credentials logs on
4	Network resources

Flow of events:

1. The Identity Awareness Gateway (1) gets security event logs from the Active Directory Domain Controllers (2).

2. A user logs in on an end-computer with their Active Directory credentials (3).

3. The Active Directory Domain Controller (2) sends the security event log to the Identity Awareness Gateway (1).

4. The Identity Awareness Gateway (1) gets the user name (@domain), computer name, and source IP address).

5. The user on the end-computer (3) opens a connection to the network resource (4).

6. The Identity Awareness Gateway confirms the user identity and allows or blocks access to the resource based on the Security Policy Collection of rules that control network traffic and enforce organization guidelines for data protection and access to resources with packet inspection..
