Identity Broker

Identity Broker Identity Sharing mechanism between Identity Servers (PDP): (1) Communication channel between PDPs based on Web-API (2) Identity Sharing capabilities between PDPs - ability to add, remove, and update the identity session. is an identity sharing method between Policy Decision Points (PDP Check Point Identity Awareness Security Gateway that acts as Policy Decision Point: acquires identities from identity sources; shares identities with other gateways. Gateways). The Policy Decision Points can share identities across different management domains in a distributed environment with multiple Identity Awareness Check Point Software Blade on a Security Gateway that enforces network access and audits data based on network location, the identity of the user, and the identity of the computer. Acronym: IDA. Security Gateways.

In a distributed environment with multiple Identity Awareness Security Gateways, you can use Identity Broker to propagate any received identity from one PDP Gateway to another. This helps to create a more scalable and robust sharing of hierarchy and topologies.

Identity Broker is a Web-API based functional part of the PDP instance. Identity Broker adds a new communication channel between PDPs.

The Identity Broker Solution

Identity Broker propagates identities between PDP Gateways. A PDP Gateway learns the Identities from the Identity Sources. This PDP Gateway performs the group membership query, calculates Access Roles, and then shares the identities to other PDP Gateways. This reduces the load on the PDP Gateways receiving the identities, identity sources, and/or User Directories.

The sharing can be performed between PDP Gateways managed by different Security Management Servers / Domain Management Servers.

Identity sharing between the Identity Brokers can be controlled through filters. You can:

Filter identities by network , user/machine name, domain, identity source, access roles, and distinguished name.
Share only local Identity sessions. When enabled, the PDP forwards only its own sessions, and not the sessions it learned from other PDPs.

The Identity Broker solution shares all the received identities by default. By applying filters, you can avoid sharing identities that are not required for other PDPs.

Terms and Descriptions

Publisher

A Security Gateway Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources. defined to share identities with one or more Subscribers.

Subscriber

A Security Gateway defined to receive identities from one or more Publishers.

Identity Broker Communication

Identity Broker uses WEB-API to communicate. Security Gateways share information in JSON format over HTTP post requests.

Each Identity Broker node verifies the other:

The Publisher identifies the Subscriber by verifying the presented SSL Certificate.

The Subscriber identifies the Publisher by verifying a pre-shared secret key.

Publisher PDP Security Gateway

New Identity Sharing method

Publish identity

Delete identity

Update identity

Subscriber PDP Security Gateway

Example Scenario

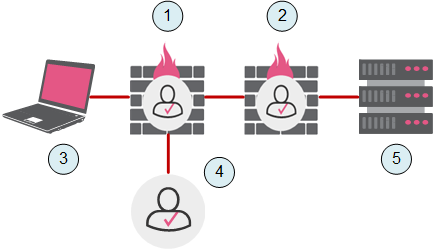

Logical topology:

Item	Description
1	Security Gateway #1
2	Security Gateway #2
3	A user on a computer (3) behind the Security Gateway #1
4	Identity Source (for example, Active Directory)
5	A resource (for example, a server) behind the Security Gateway #2

General Flow of Events:

The Security Gateway #1 is configured as an Identity Broker Publisher.

It gets and learns the identity from the Identity Source (4), and shares it with the remote Security Gateway #2.
The Security Gateway #2 is configured as an Identity Broker Subscriber.

It gets the identities of the users from remote the Security Gateway #1.
When the user connects to the resource (5), the Security Gateway #2 identifies the user and enforces identity-based rules.
Optional: You can apply filters to control which identities the Security Gateway #1 publishes and to which identities the Security Gateway #2 subscribes.
Optional: You can manage the Security Gateway #1 and Security Gateway #2 with different Management Servers.

Important - In addition to the topology configuration in the presented scenario, you can configure Security Gateway 2 as a Publisher and Security Gateway 1 as a Subscriber. That way, the two Security Gateways simultaneously give and receive identities to each other. Each Broker Publisher to Broker Subscriber relation is independent, and does not change any other Publisher-Subscriber relationship.

Configuration File "identity_broker.C"

You configure the Identity Broker in the file called $FWDIR/conf/identity_broker.C that is located on the Security Gateway / each Cluster Member Security Gateway that is part of a cluster..

Important:

If this file does not exist, then create it manually in the Expert mode:

ls -l $FWDIR/conf/identity_broker.C

touch $FWDIR/conf/identity_broker.C

Each parameter you configure in this file must have a value inside the parentheses ":<parameter> (<value>)"

If an optional parameter does not have a value, you must delete it from the file.

Before you edit this file, create a backup copy:

cp -v $FWDIR/conf/identity_broker.C{,_BKP}

If you edit this file on Windows OS, then after you transfer it back to the Security Gateway / Cluster Two or more Security Gateways that work together in a redundant configuration - High Availability, or Load Sharing. Member, you must convert this file from the DOS format to the UNIX format:

dos2unix $FWDIR/conf/identity_broker.C

Templates for the "$FWDIR/conf/identity_broker.C" file

These are the example templates for the $FWDIR/conf/identity_broker.C file:

Security Gateway that works as a PDP Publisher
Security Gateway that works as a PDP Subscriber
Security Gateway that works as a PDP Publisher and as a PDP Subscriber

Example template with mandatory parameters for a Security Gateway that works as a PDP Publisher

This template contains the mandatory parameters to configure the Identity Broker on a PDP Publisher that works with two PDP Subscribers.

See:

Configuring an Identity Broker.
Example of a Configured Identity Broker.

Copy

#############################################################
#  Configuration file for Identity Broker - Identity Distribution between PDPs.
#  For more information , please refer to Identity Awareness Admin Guide.
#############################################################
(
  :sharing_id (ENTER_UNIQUE_SHARING_ID_FOR_THIS_PUBLISHER_GATEWAY)
  :identity_subscribers (
    : (
      :Name (DESCRIPTIVE_NAME_OF_SUBSCRIBER_GATEWAY_1)
      :sharing_id (UNIQUE_SHARING_ID_OF_SUBSCRIBER_GATEWAY_1)
      :ipaddr (IP_ADDRESS_OF_INTERFACE_ON_SUBSCRIBER_GATEWAY_1)
      :certificate_subject ("CERTIFICATE_SUBJECT_OF_SUBSCRIBER_GATEWAY_1")
    )
    : (
      :Name (DESCRIPTIVE_NAME_OF_SUBSCRIBER_GATEWAY_2)
      :sharing_id (UNIQUE_SHARING_ID_OF_SUBSCRIBER_GATEWAY_2)
      :ipaddr (IP_ADDRESS_OF_INTERFACE_ON_SUBSCRIBER_GATEWAY_2)
      :certificate_subject ("CERTIFICATE_SUBJECT_OF_SUBSCRIBER_GATEWAY_2")
    )
  )
)

Example template with mandatory parameters for a Security Gateway that works as a PDP Subscriber

This template contains the mandatory parameters to configure the Identity Broker on a PDP Subscriber that works with two PDP Publishers.

See:

Configuring an Identity Broker.
Example of a Configured Identity Broker.

Copy

#############################################################
#  Configuration file for Identity Broker - Identity Distribution between PDPs.
#  For more information , please refer to Identity Awareness Admin Guide.
#############################################################
(
  :sharing_id (ENTER_UNIQUE_SHARING_ID_FOR_THIS_SUBSCRIBER_GATEWAY)
  :identity_publishers (
    : (
      :Name (DESCRIPTIVE_NAME_OF_PUBLISHER_GATEWAY_1)
      :sharing_id (UNIQUE_SHARING_ID_OF_PUBLISHER_GATEWAY_1)
      :ipaddr (IP_ADDRESS_OF_INTERFACE_ON_PUBLISHER_GATEWAY_1)
    )
    : (
      :Name (DESCRIPTIVE_NAME_OF_PUBLISHER_GATEWAY_2)
      :sharing_id (UNIQUE_SHARING_ID_OF_PUBLISHER_GATEWAY_2)
      :ipaddr (IP_ADDRESS_OF_INTERFACE_ON_PUBLISHER_GATEWAY_2)
    )
  )
)

Example template with all supported parameters for a Security Gateway that works as a PDP Publisher and as a PDP Subscriber

This template contains all supported parameters to configure the Identity Broker.

Important:

Each parameter you configure in this file must have a value inside the parentheses ":<parameter> (<value>)"
If an optional parameter does not have a value, you must delete it from the file.

See:

Configuring an Identity Broker.
Example of a Configured Identity Broker.

Copy

######################################################################################
#    Configuration file for Identity Broker - Identity Distribution between PDPs.    #
#    For more information, see  the Identity Awareness Administration Guide.         #
######################################################################################
(
  :sharing_id ()
  :identity_subscribers (
    : (
      :Name ()
      :sharing_id ()
      :ipaddr ()
      :certificate_subject ("")
      :crl_validation_config (fail_closed)
      :share_only_local_sessions (false)
      :filter (
        :include_users_and_machines ()
        :exclude_users_and_machines ()
        :include_networks ()
        :exclude_networks ()
        :include_identity_source ()
        :exclude_identity_source ()
        :include_domains ()
        :exclude_domains ()
        :include_roles ()
        :exclude_roles ()
        :include_distinguished_names ()
        :exclude_distinguished_names ()
        :include_owners ()
        :exclude_owners ()
        :include_immediate_publishers ()
        :exclude_immediate_publishers ()
      )
    )
  )
  :identity_publishers (
    : (
      :Name ()
      :sharing_id ()
      :ipaddr ()
      :recalculate_access_roles (false)
      :filter (
        :include_users_and_machines ()
        :exclude_users_and_machines ()
        :include_networks ()
        :exclude_networks ()
        :include_identity_source ()
        :exclude_identity_source ()
        :include_domains ()
        :exclude_domains ()
        :include_roles ()
        :exclude_roles ()
        :include_distinguished_names ()
        :exclude_distinguished_names ()
        :include_owners ()
        :exclude_owners ()
        :include_immediate_publishers ()
        :exclude_immediate_publishers ()
      )
    )
  )
  :global_outgoing_filter (
    :include_users_and_machines ()
    :exclude_users_and_machines ()
    :include_networks ()
    :exclude_networks ()
    :include_identity_source ()
    :exclude_identity_source ()
    :include_domains ()
    :exclude_domains ()
    :include_roles ()
    :exclude_roles ()
    :include_distinguished_names ()
    :exclude_distinguished_names ()
    :include_owners ()
    :exclude_owners ()
    :include_immediate_publishers ()
    :exclude_immediate_publishers ()
  )
  :global_incoming_filter (
    :include_users_and_machines ()
    :exclude_users_and_machines ()
    :include_networks ()
    :exclude_networks ()
    :include_identity_source ()
    :exclude_identity_source ()
    :include_domains ()
    :exclude_domains ()
    :include_roles ()
    :exclude_roles ()
    :include_distinguished_names ()
    :exclude_distinguished_names ()
    :include_owners ()
    :exclude_owners ()
    :include_immediate_publishers ()
    :exclude_immediate_publishers ()
  )
)

The sections in the $FWDIR/conf/identity_broker.C file

See Example of a Configured Identity Broker.

Section

Type

Description

Sharing ID

:sharing_id()

Mandatory on a Publisher
Mandatory on a Subscriber

Identifies this Security Gateway when it communicates with other Security Gateways.

The Sharing ID is an alphanumeric unique identifier for a Security Gateway. You configure the Sharing ID for a PDP Publisher or a PDP Subscriber. See Part 2 of 2 - PDP Publisher Configuration in Command Line andPart 2 of 2 - PDP Subscriber Configuration in Command Line.

Note - The sharing_id must be identical to all cluster members and set the IP address to one of the cluster's VIPs. From the subscriber's perspective, the Cluster Publisher is seen as a single publisher in common cluster topologies.

Identity Subscribers

:identity_subscribers ()

Mandatory on a Publisher

Configures Identity Subscribers on a Security Gateway that works as a PDP Publisher.

These parameters in the Identity Subscribers section are mandatory:

:Name ()
:sharing_id ()
:ipaddr ()
:certificate_subject ("")

These parameters in the Identity Subscribers section are optional:

:crl_validation_config ()
:share_only_local_sessions ()
:filter () - this subsection can contains many local filters

Identity Publishers

:identity_publishers ()

Mandatory on a Subscriber

Configures Identity Publishers on a Security Gateway that works as a PDP Subscriber.

These parameters in the Identity Publishers section are mandatory:

:Name ()
:sharing_id ()
:ipaddr ()

These parameters in the Identity Publishers section are optional:

:recalculate_access_roles ()
:filter () - this subsection can contains many local filters

Global Outgoing Filters

:global_outgoing_filter ()

Optional on a Publisher

Configures global outgoing filters on a Security Gateway that works as a PDP Publisher.

These filters apply to all identity sessions this Publisher sends to all Subscribers that are configured on this Publisher.

Global Incoming Filters

:global_incoming_filter ()

Optional on a Subscriber

Configures global incoming filters on a Security Gateway that works as a PDP Subscriber.

These filters apply to all identity sessions this Subscriber receives from all Publishers that are configured on this Subscriber.

Configuring an Identity Broker

Configuring a PDP Publisher

A Publisher Security Gateway shares identities with other Security Gateways that are considered Identity Subscribers.

For a Publisher Security Gateway to share identities, you must configure the Identity Subscribers in the $FWDIR/conf/identity_broker.C file on the Publisher Security Gateway.

Part 1 of 2 - PDP Publisher Configuration in SmartConsole

From the left navigation panel, click Gateways & Servers.
Double-click the Security Gateway / Cluster object.
Enable the Identity Awareness Software Blade Specific security solution (module): (1) On a Security Gateway, each Software Blade inspects specific characteristics of the traffic (2) On a Management Server, each Software Blade enables different management capabilities. and complete the Identity Awareness Configuration wizard.
From the left tree, click Identity Awareness.
Select the applicable Identity Sources - the Identity Providers from which to get the identities.

Near each Identity Source you selected, click Settings and configure the applicable settings.
Optional: Configure this Security Gateway / Cluster as a Subscriber of a different Identity Awareness Security Gateway / Cluster.
Click OK.
Install the Access Control Policy on this Security Gateway / Cluster object.

Part 2 of 2 - PDP Publisher Configuration in Command Line

Best Practice - Prepare these files in advance on your computer:

The $FWDIR/conf/identity_broker.C file for the Publisher.
The $FWDIR/conf/identity_broker.C file for each Subscriber of this Publisher.

Connect to the command line on this Security Gateway / each Cluster Member.
Log in to the Expert mode.

Back up the current file:

cp -v $FWDIR/conf/identity_broker.C{,_BKP}

Edit the current file:

vi $FWDIR/conf/identity_broker.C

See Example of a Configured Identity Broker.

In the section ":sharing_id()", enter an alphanumeric unique identifier for this PDP Publisher.

Enter at minimum 16 characters. You can use a UUID generator.

You use this identifier in the $FWDIR/conf/identity_broker.C file on Subscribers in the section ":identity_publishers ()".

For example:

:sharing_id (b2L4Sri5K9HxJw63GjAb)

In the section ":identity_subscribers ()", enter the applicable data for each Subscriber Security Gateway / Cluster.

Parameter

Description

Name

Specifies a descriptive name for this Subscriber Security Gateway / Cluster.

Best Practice - Use the object name of this Subscriber Security Gateway / Cluster as configured in SmartConsole Check Point GUI application used to manage a Check Point environment - configure Security Policies, configure devices, monitor products and events, install updates, and so on..

sharing_id

Specifies the unique identifier of the Subscriber Security Gateway / Cluster.

Get this value from the $FWDIR/conf/identity_broker.C file on the Subscriber - from the top section ":sharing_id ()".

ipaddr

Specifies the IPv4 address of the applicable interface on the Subscriber Security Gateway / Cluster, to which this Publisher connects.

Important - If this IP address changes in the Subscriber Security Gateway / Cluster object, you must update it in the $FWDIR/conf/identity_broker.C file.

Note - For IPv6, use "ipaddr6".

certificate_subject

Note - You can perform this procedure only after you enable "Get Identities from Identity Broker" in the Subscriber Security Gateway object in SmartConsole.

Fetch the Server Certificate from the Subscriber.

On the Publisher Security Gateway / each Cluster Member, run:

$FWDIR/bin/BrokerCertFetcher <IP Address of Subscriber>

Make sure the CA Fingerprint and the "Subject" for the Subscriber Security Gateway are correct.
Configure the "Subject" for the Subscriber Security Gateway in the "certificate_subject" field.
Make sure this file exists:

stat $FWDIR/nac/broker_ca_certs/<IP_Address_of_Subscriber>.pem

crl_validation_config

Optional: Specifies the mode for CRL (Certificate Revocation List) validation.

The options are:

fail_closed - Start to download the CRL list. If the download fails, deny the connection (default).
fail_open - Start to download the CRL list. If the download fails, allow the connection.
skip_crl_check - Do not use CRL to validate the Certificate.

share_only_local_sessions

Optional: Specifies to publish only local sessions to this Subscriber. Identities of local sessions are those identities that are directly learned from the locally connected identity sources.

The options are:

true
false (default)

filter

Optional: Specifies an outgoing filter for this specific Subscriber.

Follow the instructions in Configuring Identity Filters.

Configuring a PDP Subscriber

A Subscriber Security Gateway gets its identities from other Security Gateways. These are considered Identity Publishers.

For a Subscriber Security Gateway to get identities, you must configure the Identity Publishers in the $FWDIR/conf/identity_broker.C file on the Subscriber Security Gateway.

Part 1 of 2 - PDP Subscriber Configuration in SmartConsole

From the left navigation panel, click Gateways & Servers.
Double-click the Security Gateway / Cluster object.
Enable the Identity Awareness Software Blade and complete the Identity Awareness Configuration wizard.

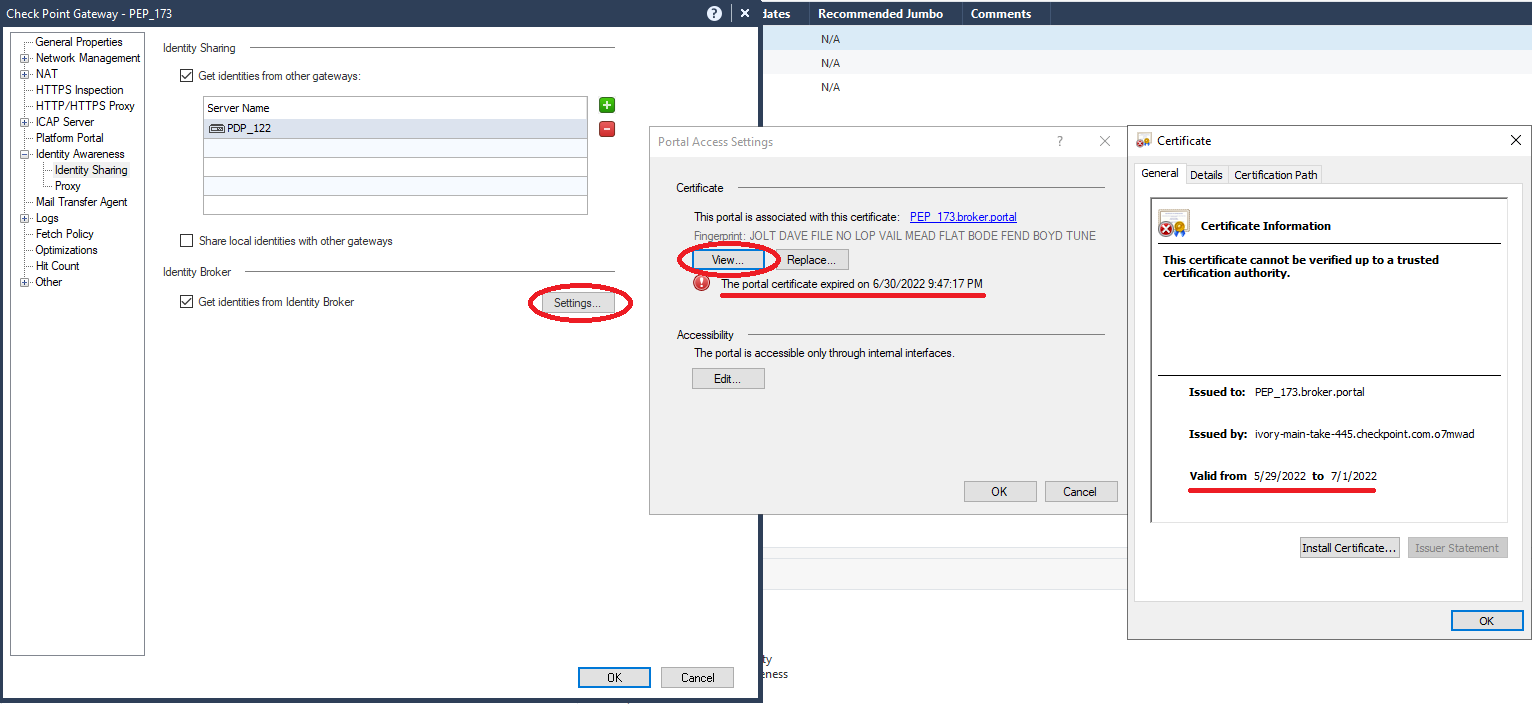

From the left tree, click Identity Awareness > Identity Sharing.
In the right pane:
1. Enable Get Identities from Identity Broker.
2. Click Settings.

  The Portal Access Settings window opens.

Import a dedicated internal CA certificate for the Subscriber to present to the Publishers as an HTTPS Server certificate:

Connect to the command line on the Management Server Check Point Single-Domain Security Management Server or a Multi-Domain Security Management Server..
Log in to the Expert mode.

Run this command for the Security Gateway / Cluster object you configure:

cpca_client create_cert -n "CN=<Name of Security Gateway / Cluster Object>.broker.portal" -f <Name of Security Gateway / Cluster Object>_broker.p12 -k IKE -w "<Password>"

Transfer this P12 file from the Management Server to the SmartConsole Client computer.
In the Certificate section, click Import.
Select the P12 file and click Open.

Configure the Accessibility settings.

By default, the Publisher Security Gateway tries to connect to the internal interface of the Subscriber Security Gateway.

If one of the Publisher Security Gateways connects to the Subscriber Security Gateway through a different interface:
1. In the Accessibility section, click Edit.
2. Select the applicable option.
3. Click OK to close the Portal Access Settings window.
Click OK.
Install the Access Control Policy on the Security Gateway / Cluster object.

Part 2 of 2 - PDP Subscriber Configuration in Command Line

Best Practice - Prepare these files in advance on your computer:

The $FWDIR/conf/identity_broker.C file for the Subscriber.
The $FWDIR/conf/identity_broker.C file for each Publisher for this Subscriber.

Connect to the command line on the Subscriber Security Gateway / each Cluster Member.
Log in to the Expert mode.

Back up the current file:

cp -v $FWDIR/conf/identity_broker.C{,_BKP}

Edit the current file:

vi $FWDIR/conf/identity_broker.C

See Example of a Configured Identity Broker.

In the section ":sharing_id()", enter an alphanumeric unique identifier for this PDP Subscriber.

Enter at minimum 16 characters. You can use a UUID generator.

You use this identifier in the $FWDIR/conf/identity_broker.C file on Publishers in the section ":identity_subscribers ()".

For example:

:sharing_id (b2L4Sri5K9HxJw63GjAb)

In the section ":identity_publishers ()", enter the applicable data for each Publisher Security Gateway / Cluster.

Parameter

Description

Name

Specifies a descriptive name for this Publisher Security Gateway / Cluster.

Best Practice - Use the object name of this Publisher Security Gateway / Cluster as configured in SmartConsole.

sharing_id

Specifies the unique identifier of the Publisher Security Gateway / Cluster.

Get this value from the $FWDIR/conf/identity_broker.C file on the Publisher - from the top section ":sharing_id ()".

ipaddr

Specifies the IPv4 address of the applicable interface on the Publisher Security Gateway to which this Subscriber connects.

Important - If this IP address changes in the Subscriber Security Gateway / Cluster object, you must update it in the $FWDIR/conf/identity_broker.C file.

Note - For IPv6, use "ipaddr6".

filter

Optional: Specifies an incoming filter for this specific Publisher.

Follow the instructions in Configuring Identity Filters.

recalculate_access_roles

Optional: Specifies if recalculation of Access Roles is needed for each shared session from this Publisher. This way, the Subscriber can use the Access Roles from the Access Control Policy instead of the Access Roles from the Publisher.

This feature is disabled by default. For more information, see sk164474.

Identity Broker Filters

By default:

A Publisher sends all Identity Sessions to all its Subscribers.
A Subscriber receives all Identity Sessions from all its Publishers.

You can configure filters in the $FWDIR/conf/identity_broker.C file to control identity sharing between Identity Brokers.

On a Publisher, you can configure:

Global filters that apply to all identity sessions this Publisher sends to all Subscribers that are configured on this Publisher. Global filters take precedence over local filters.
Local filters that apply to identity sessions this Publisher sends to specific Subscribers that are configured on this Publisher.

On a Subscriber, you can configure:

Global filters that apply to all identity sessions this Subscriber receives from all Publishers that are configured on this Subscriber. Global filters take precedence over local filters.
Local filters that apply to identity sessions this Subscriber receives from specific Publishers that are configured on this Subscriber.

Best Practice - Configure a filter to control which Identity Sessions a Publisher sends to its Subscribers.

Configure the applicable local filters for specific subscribers, or configure the applicable global filters.

There two types of filters- include filters and exclude filters.

Algorithm on the Security Gateway:

Apply the "include" filter, if it is configured.

"AND"
Apply the "exclude" filter, if it is configured.

When an exclude filter includes multiple statements, the Security Gateway performs a logical "OR" between these "exclude" statements.

Filters

See Global Filters (Optional) and Example of a Configured Identity Broker.

Immediate Publishers

An Immediate Publisher propagates identities to an Identity Broker one hop away, In other words, a direct publisher-subscribe connection exists between two Identity Broker peers.

To exclude or include immediate publishers of the configured subscribers, specify one or more to the filter set:

:include_immediate_publishers (

  : ("192.168.1.72")

  : ("192.168.1.66")

Example - large scale environment scenario:

Identity Broker A (192.168.1.72) and B publish identity sessions to the Identity Broker peer C.
Identity Broker C (192.168.1.66) publishes identity sessions to Identity Broker D.
Without any filtering, Identity Broker D learns about all the Identity Sessions from A, B and C.

In case Identity Broker D only learns about Identity Sessions from Identity Broker A:

In the Identity Broker C configuration file, in the section that describes "subscriber D", add a filter to show Identity Broker A as "immediate publishers".

:include_immediate_publishers (

  : ("192.168.1.72")

If you apply the above filter settings, Identity Broker D learns Identity Sessions from Identity Broker A and Identity Broker C.

Immediate Owners

A PDP instance creates an Identity Session based on a login event learned from an identity source. For example, when an Identity Agent terminates a PDP instance, this PDP instance creates the Identity Session and is the owner of this session.

When this PDP instance publishes this Identity Session to a subscribing Identity Broker peer, it includes its IP address as "owner" in the Identity Session properties.

This example shows the Identity Broker with the IP address 192.168.51.229 that owns the identity session 94a9f4c:

Session:  94a9f4c2

Session UUID:  {B4E4634F-E98E-FCE7-A52B-CCB38B5705DB}

Ip:  192.168.51.188

Users:

alice {94fbed73}

  Groups: InternalSales;All Users

  Roles: InternalSalesAccessRole

  Client Type: portal

  Authentication Method: User & Password

  Distinguished Name:

  Connect Time: Thu Jan  9 16:00:27 2020

  Next Reauthentication: -

  Next Connectivity Check: -

  Next Ldap Fetch: -

Packet Tagging Status:  Not Active

Published Gateways:  Local

Owner:  192.168.51.229

Immediate Publisher:  192.168.51.229

Published PDPs:  192.168.51.226

To exclude or include identities from a specific owner, set the applicable owner IP address.

Best Practice - Configure a list of "include_owners" for an Identity Broker to only learn Identity Sessions created by dedicated Identity Brokers in the network.

For example, to share only identities whose origin is two specific owners, configure this filter:

:include_owners (

  : ("172.23.106.72")

  : ("172.23.106.66")

Global Filters (Optional)

Filters can be configured globally for Identity Brokers using the global_outgoing_filter and global_incoming_filter parameters:

Important - Global filters take precedence over local filters. For example, if you configure an outgoing global filter to exclude Identities from network 10.10.10.0/24 and configure a contradicting local filter to include and publish the 10.10.10.0/24 network identities, this network's identities are not published.

Parameter

Description

global_outgoing_filter

Specify global outgoing filters on the Publisher.

These filters apply to all the identity sessions published to ALL the configured Subscribers.

global_incoming_filter

Specify global incoming filters for the Subscribers.

These filters apply to all the identity sessions received from ALL configured Publishers.

Configuring Identity Filters

These are all the Possible Filter configuration templates.

Note - All fields are optional.

Important:

Each parameter you configure in this file must have a value inside the parentheses ":<parameter> (<value>)"
If an optional parameter does not have a value, you must delete it from the file.

:filter

Copy

:filter (
  :include_users_and_machines ()
  :exclude_users_and_machines ()
  :include_networks ()
  :exclude_networks ()
  :include_identity_source ()
  :exclude_identity_source ()
  :include_domains ()
  :exclude_domains ()
  :include_roles ()
  :exclude_roles ()
  :include_distinguished_names ()
  :exclude_distinguished_names ()
  :include_owners ()
  :exclude_owners ()
  :include_immediate_publishers ()
  :exclude_immediate_publishers ()
)

:global_outgoing_filter

Copy

:global_outgoing_filter (
  :include_users_and_machines ()
  :exclude_users_and_machines ()
  :include_networks ()
  :exclude_networks ()
  :include_identity_source ()
  :exclude_identity_source ()
  :include_domains ()
  :exclude_domains ()
  :include_roles ()
  :exclude_roles ()
  :include_distinguished_names ()
  :exclude_distinguished_names ()
  :include_owners ()
  :exclude_owners ()
  :include_immediate_publishers ()
  :exclude_immediate_publishers ()
)

:global_incoming_filter

Copy

:global_incoming_filter (
  :include_users_and_machines ()
  :exclude_users_and_machines ()
  :include_networks ()
  :exclude_networks ()
  :include_identity_source ()
  :exclude_identity_source ()
  :include_domains ()
  :exclude_domains ()
  :include_roles ()
  :exclude_roles ()
  :include_distinguished_names ()
  :exclude_distinguished_names ()
  :include_owners ()
  :exclude_owners ()
  :include_immediate_publishers ()
  :exclude_immediate_publishers ()
)

Example of a Configured Identity Broker

Logical topology:

Security Gateway #1 10.10.10.1		Security Gateway #2 10.10.10.2

	10.10.10.3 Security Gateway #3 192.168.10.3

		192.168.10.4 Security Gateway #4

Security Gateway	Gets identities from these PDP Publishers	Shares identities with these PDP Subscribers
Security Gateway #1	None	Security Gateway #3 over 10.10.10.x
Security Gateway #2	None	Security Gateway #3 over 10.10.10.x
Security Gateway #3	Security Gateway #1 over 10.10.10.x Security Gateway #2 over 10.10.10.x	Security Gateway #4 over 192.168.10.x
Security Gateway #4	Security Gateway #3 over 192.168.10.x	None

Example of a configured Identity Broker on Security Gateway #1

The $FWDIR/conf/identity_broker.C file configured on Security Gateway #1:

Copy

(
  :sharing_id (z8JXd28t0taHnhifKnYm8)
  :identity_subscribers (
    : (
      :Name (GW3)
      :sharing_id (Ac65e4dCc4aBa06b140dE)
      :ipaddr (10.10.10.3)
      :certificate_subject ("GW3.broker.portal")
      :share_only_local_sessions (false)
      :filter ()
    )
  )
  :global_outgoing_filter (
    :exclude_identity_source (
      : ("Identity Collector")
    )
  )
)

Example of a configured Identity Broker on Security Gateway #2

The $FWDIR/conf/identity_broker.C file configured on Security Gateway #2:

Copy

(
  :sharing_id (Y2l885i5u49xJw63hHACP)
  :identity_subscribers (
    : (
      :Name (GW3)
      :sharing_id (Ac65e4dCc4aBa06b140dE)
      :ipaddr (10.10.10.3)
      :certificate_subject ("GW3.broker.portal")
      :share_only_local_sessions (false)
      :filter ()
    )
  )
  :global_outgoing_filter (
    :exclude_identity_source (
      : ("Identity Collector")
    )
  )
)

Example of a configured Identity Broker on Security Gateway #3

The $FWDIR/conf/identity_broker.C file configured on Security Gateway #3:

Copy

(
  :sharing_id (Ac65e4dCc4aBa06b140dE)
  :identity_subscribers (
    : (
      :Name (GW4)
      :sharing_id (0N8NbkP0XMuvAw3F62d20)
      :ipaddr (192.168.10.4)
      :certificate_subject ("GW4.broker.portal")
      :share_only_local_sessions (false)
      :filter ()
    )
  )
  :identity_publishers (
    : (
      :Name (GW1)
      :sharing_id (z8JXd28t0taHnhifKnYm8)
      :ipaddr (10.10.10.1)
      :filter ()
    )
    : (
      :Name (GW2)
      :sharing_id (Y2l885i5u49xJw63hHACP)
      :ipaddr (10.10.10.2)
      :filter ()
    )
  )
  :global_outgoing_filter (
    :exclude_identity_source (
      : ("Identity Collector")
    )
  :global_incoming_filter (
    :exclude_networks (
      : (192.168.1.0/255.255.255.0)
    )
    :exclude_identity_source (
      : ("Radius Accounting")
    )
  )
)

Example of a configured Identity Broker on Security Gateway #4

The $FWDIR/conf/identity_broker.C file configured on Security Gateway #4:

Copy

(
  :sharing_id (0N8NbkP0XMuvAw3F62d20)
  :identity_publishers (
    : (
      :Name (GW3)
      :sharing_id (Ac65e4dCc4aBa06b140dE)
      :ipaddr (10.10.10.3)
      :filter ()
    )
  )
  :global_incoming_filter (
    :exclude_networks (
      : (172.33.40.0/255.255.255.0)
    )
    :exclude_identity_source (
      : ("Radius Accounting")
    )
  )
)

CLI Commands

You can use the "pdp broker <commands>" commands to monitor and do an inspection on the Identity Broker.

For full syntax and description of all the available CLI commands, see Command Line Reference.
