Getting Started with Site-to-Site VPN

Setting up Site-to-Site VPN between Security Gateways

Scenario: Two Check Point Security Gateways are managed by the same Security Management Server Dedicated Check Point server that runs Check Point software to manage the objects and policies in a Check Point environment within a single management Domain. Synonym: Single-Domain Security Management Server.. How do you create a site-to-site VPN between the two Security Gateways so that they can communicate securely?

Overview of the Workflow:

Create the Security Gateway Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources. objects in SmartConsole Check Point GUI application used to manage a Check Point environment - configure Security Policies, configure devices, monitor products and events, install updates, and so on. and make sure that IPsec VPN Check Point Software Blade on a Security Gateway that provides a Site to Site VPN and Remote Access VPN access. is enabled on each one.
Generate internal CA certificates for each Security Gateway (done automatically).
Create the VPN Community A named collection of VPN domains, each protected by a VPN gateway..
Define the VPN Domain. See Defining the VPN Domain for a Security Gateway.
Make sure that the VPN will work with your configured routing, or change the routing or link selection settings as necessary. See Link Selection Overview.
Create rules for the traffic. See Configuring Site to Site VPN Rules in the Access Control Policy
Install the Access Control Policy.

Enabling IPsec VPN on a Security Gateway

Site to Site VPN An encrypted tunnel between two or more Security Gateways. Synonym: Site-to-Site VPN. Contractions: S2S VPN, S-to-S VPN. requires two or more Security Gateways with the IPsec VPN Software Blade Specific security solution (module): (1) On a Security Gateway, each Software Blade inspects specific characteristics of the traffic (2) On a Management Server, each Software Blade enables different management capabilities. enabled. Other Software Blades can be enabled on the same Security Gateway.

Make sure that Trusted Communication is established between all Security Gateways and the Security Management Server Check Point Single-Domain Security Management Server or a Multi-Domain Security Management Server..

Creating a VPN Community

You can create a Meshed or Star VPN Community. The procedure below shows an example of a Star Community.

More VPN Community Settings

In addition to the Security Gateway members, you can edit these settings for the VPN Community in the community object:

Encrypted Traffic - Select Accept all encrypted traffic to encrypt and decrypt all traffic between the Security Gateways. If this is not selected, create rules in the Security Policy Collection of rules that control network traffic and enforce organization guidelines for data protection and access to resources with packet inspection. Rule Base All rules configured in a given Security Policy. Synonym: Rulebase. to allow encrypted traffic between community members
Encryption - Select encryption settings that include the Encryption Method and Encryption Suite. See VPN Community Object - Encryption Settings.
Tunnel Management - Select settings VPN tunnels that include Permanent Tunnels and Tunnel Sharing. See Configuring Tunnel Features.
VPN Routing -For Star Communities, select how VPN traffic is routed between the center and satellite Security Gateways. By default this is always set to To center only. See Configuring VPN Routing in Domain Based VPN.
MEP (Multiple Entry Points) - For Star Communities, select how the entry Security Gateway for VPN traffic is chosen. This only applies when you have multiple center Security Gateways in the community. See Overview of MEP.
Excluded Services - Add services that are not to be encrypted, for example Check Point Control Connections. VPN tunnels are not created for the Services included here.
Shared Secret - Configure shared secret authentication to use for communication with external Security Gateways that are part of a VPN community. See Configuring a VPN with External Security Gateways Using Pre-Shared Secret.
Wire Mode - Select to define internal interfaces and communities as trusted and bypass the Security Gateway for some communication. See Configuring Wire Mode.
Advanced - Configure advanced settings related to IKE, IPsec, and NAT. You can also Reset All VPN Properties to revert all VPN Community settings to their default values. See Configuring Advanced IKE Properties.

Defining the VPN Domain for a Security Gateway

The VPN Domain defines the networks and IP addresses that are included in the VPN community. It is also called the Encryption Domain. When you create a Check Point Security Gateway object, the VPN Domain is automatically defined as all IP Addresses behind the Security Gateway, based on the topology information.

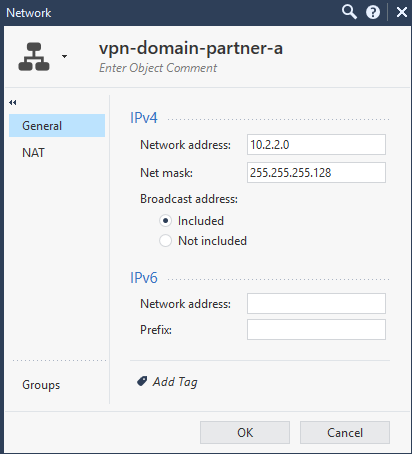

You can manually define the VPN domain to include one or more networks. You must have a Network object or Network Group object that represents the domain.

Encryption Domain per Community

Important - This feature requires Security Gateways R80.40 and higher.

By default a gateway's Encryption Domain The networks that a Security Gateway protects and for which it encrypts and decrypts VPN traffic. is shared with all the communities it is a part of.

Access to different resources within the Encryption Domain is implemented using the Access Control Rule Set of traffic parameters and other conditions in a Rule Base (Security Policy) that cause specified actions to be taken for a communication session. Base.

In some cases you may need to configure the Encryption Domain in a granular way.

You can configure the VPN domain of a Security Gateway per community, which makes it safer and easier to control the VPN communities that are logically separated.

To configure Encryption Domain Per Community

Open the VPN community.
Double click the center Security Gateway that participates in more than one VPN community (Security Gateway C in this scenario).

The VPN domain configuration window opens.
Select the User defined option.

Configure the Encryption Domain. In our example the encryption domain includes the network we allow partner B to access.

Click OK.
Install policy.

Example 2

Using the same setup, you can use the Encryption Domain per Community configuration to allow access between host 1 and host 2 in both directions.

The configuration changes are applied to the Encryption Domain of Security Gateway-C per each relevant community, in this example Communities 1 and 2.

Note - In previous versions to get this functionality the vpn_route.conf file was used.

Configuration:

Community	Encryption Domain	Install On
Community-1	Network behind Security Gateway-C Host-2	Security Gateway-C Security Gateway-A
Community-2	Network behind Security Gateway-C Host-1	Security Gateway-C Security Gateway-B

Community

Encryption Domain

Install On

Community-1

Network behind Security Gateway-C

Host-2

Security Gateway-C

Security Gateway-A

Community-2

Network behind Security Gateway-C

Host-1

Security Gateway-C

Security Gateway-B

Create a new host (Host-2 behind Security Gateway-B) to represent the Encryption Domain of Security Gateway-C to publish for Security Gateway-A.
Create a new host (Host-1 behind Security Gateway-A) to represent the Encryption Domain of Security Gateway-C to publish for Security Gateway-B.
Create a new Network group to include the current Encryption Domain of Security Gateway-C and the additional host (Host-2) for Community-1.
Create a new Network group to include the current Encryption Domain of Security Gateway-C and the additional host (Host-1) for Community-2.
For Community-1 change the Encryption Domain for Security Gateway-C, use the new group created in step 3.
For Community-2 change the Encryption Domain for Security Gateway-C, use the new group created in step 4.

In practice this type of configuration "tricks" the satellite gateways to think that the destination host is part of Security Gateway-C 's Encryption Domain and therefore encrypt the packets from the satellite gateways towards the center Security Gateway. When the encrypted packet gets to the center Security Gateway, it is decrypted and re-routed to its original destination thus it is encrypted again and sent to the other satellite gateway.

This is how it works:

Specific VPN Domain for Gateway Communities

If a Security Gateway participates in more than one VPN Community, you can configure a different VPN Domain for the Security Gateway for each VPN Community in which it participates. In SmartConsole, you can configure a specific VPN Domain for a Security Gateway in the Security Gateway object or in the VPN Community object.

Important -This feature requires Security Gateway versions R80.40 and higher.

To configure a specific VPN Domain in the Security Gateway Object:

Open the Network Management > VPN Domain page.
In the line Set Specific Domain for Gateway Communities, click Set.
Select the VPN Community for which it is necessary to override the VPN Domain and click Set.
Select the applicable option:
- According to the gateway

  This configuration option use the VPN Domain that is configured in the Network Management folder > VPN Domain page > VPN Domain section.
- User defined

  Select the applicable Network or Group object (or create a new object).

  This configuration option overrides:
  - The VPN Domain that is configured in the Security Gateway object > Network Management folder > VPN Domain page > VPN Domain section.
  - The VPN Domain that is configured in the Meshed / Star VPN Community object > Gateways page.
  - The VPN Domain that is configured in the Remote Access VPN An encrypted tunnel between remote access clients (such as Endpoint Security VPN) and a Security Gateway. Community object > Participating Gateways page.
Click OK to close the Set Specific VPN Domain for Gateway Communities window.
Click OK to close the Communities Specific VPN Domain window.

To configure a specific VPN Domain in the VPN Community Object:

In the Objects pane, click VPN Communities.
Click the applicable VPN Community.

The VPN Community configuration window opens.
In the Gateways pane, double-click the relevant Security Gateway object (or create a new object).

The VPN Domain configuration window opens.
Select the applicable option:
- According to the gateway

  This configuration option use the VPN Domain that is configured in the Network Management folder > VPN Domain page > VPN Domain section.
- User defined

  Select the applicable Network or Group object (or create a new object).

  This configuration option overrides:
  - The VPN Domain that is configured in the Security Gateway object > Network Management folder > VPN Domain page > VPN Domain section.
  - The VPN Domain that is configured in the Meshed / Star VPN Community object > Gateways page.
  - The VPN Domain that is configured in the Remote Access VPN Community object > Participating Gateways page.
Click OK to close the VPN Domain configuration window.
Click OK to close the VPN Community configuration window.

Confirming VPN Routing

By default, IPsec VPN uses the main IPv4 Address, defined in the General Properties page of the Security Gateway object, for the VPN tunnel connection.

If you want to use this IP address for the VPN communication, and it is an external interface, you do not need additional routing.

If the main IP address is an internal interface, or if you want VPN communication on a different interface, make sure that:

The Link Selection settings for the Security Gateway are configured. Choose which Security Gateway links are used by VPN to route traffic correctly. See Link Selection Overview
VPN Routing is configured to allow the connections. For information how to configure routing in Gaia Check Point security operating system that combines the strengths of both SecurePlatform and IPSO operating systems. OS, see the R80.40 Gaia Administration Guide - Chapter Network Management.

Configuring Site to Site VPN Rules in the Access Control Policy

You must configure rules to allow traffic to and from VPN Communities. Configure rules in SmartConsole > Security Policies view > Access Control. All layers of the Access Control Policy can contain VPN rules.

To make a rule apply to a VPN Community, the VPN column of the Rule Base must contain one of these:

Any - The rules applies to all VPN Communities and to non-VPN related traffic. If you configure a new VPN Community after the rule was created, the rule also applies to the new VPN Community.
One or more specified VPN communities - For example, MyIntranet. Right-click in the VPN column of a rule and select Specific VPN Communities. The rule applies to the communities shown in the VPN column.

Examples:

This rule allows encrypted traffic between domains of member Security Gateways of "community_X."

Name	Source	Destination	VPN	Services & Applications
Allow traffic within community	* Any	*Any	MyCommunity	* Any

This rule allows traffic from all VPN Communities to the internal network on all services.

Name	Source	Destination	VPN	Services & Applications
Allow all VPN	* Any	Internal_Network	* Any	* Any

This rule allows traffic between two VPN domains with all services.

Name	Source	Destination	VPN	Services & Applications
Site to Site VPN	Local_VPN_Domain Peer_VPN_Domain	Local_VPN_Domain Peer_VPN_Domain	Site2Site	* Any

Name

Source

Destination

VPN

Services & Applications

Site to Site VPN

Local_VPN_Domain

Peer_VPN_Domain

Local_VPN_Domain

Peer_VPN_Domain

Site2Site

* Any

Confirming that a VPN Tunnel Opens Successfully

To make sure that a VPN tunnel has successfully opened

Edit the VPN rule and select Log as the Track option.
From the left navigation panel, click Logs & Monitor.
From the top, click New Tab.
From the bottom of the window, click Tunnel and User Monitoring.

Check Point SmartView Monitor opens.
Click the Security Gateway to see IPsec VPN traffic and tunnels opened.

A successful connection shows encrypt, decrypt and key install logs.

Alternatively:
1. In SmartConsole, from the left navigation panel, click Logs & Monitor.
2. On the Logs tab, search for VPN to see the applicable logs.

Example:

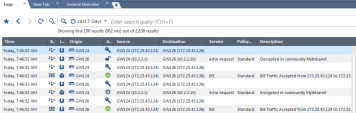

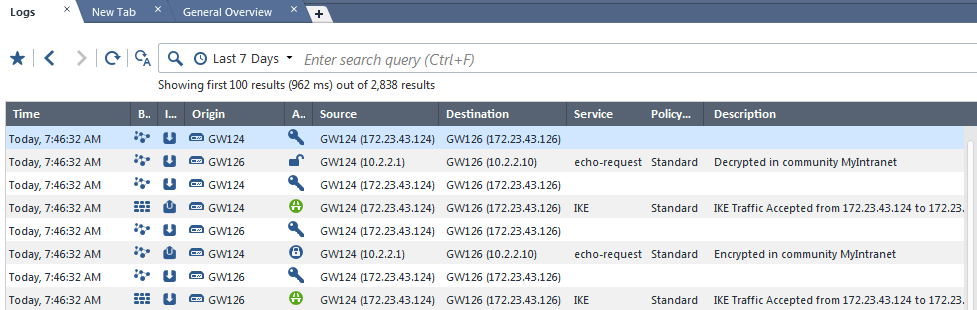

Open SmartView Monitor and see that VPN tunnels are up.
