The SmartEvent Architecture

SmartEvent has some components that work together to help track down security threats and make your network more secure.

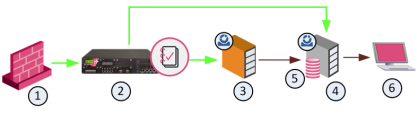

This is how they work together. The numbers refer to the diagram:

• SmartEvent Correlation Unit SmartEvent software component on a SmartEvent Server that analyzes logs and detects events. (3) analyzes log entries on Log Servers (2) and stores the event Record of a security or network incident that is based on one or more logs, and on a customizable set of rules that are defined in the Event Policy. in the same way the log server stores logs.

• SmartEvent Server Dedicated Check Point server with the enabled SmartEvent Software Blade that hosts the events database. (4) contains the Events Database (5).

• The SmartEvent and SmartConsole Check Point GUI application used to manage a Check Point environment - configure Security Policies, configure devices, monitor products and events, install updates, and so on. clients (6) manage the SmartEvent Server.

Item	Description	Purpose
		Log data flow
		Event data flow
1	Check Point Security Gateway Dedicated Check Point server that runs Check Point software to inspect traffic and enforce Security Policies for connected network resources.	Sends logs to the Log Server Dedicated Check Point server that runs Check Point software to store and process logs..
2	Log Server	Stores logs.
3	SmartEvent Correlation Unit	Identifies events: Analyzes each log entry from a Log Server, and looks for patterns according to the installed Event Policy. The logs contain data from Check Point products and certain third-party devices. When a threat pattern is identified, the SmartEvent Correlation Unit forwards the event to the SmartEvent Server.
4	SmartEvent Server	The SmartEvent Server: Indexes logs for SmartView Defines the event policy Set of rules that define the behavior of SmartEvent. Manages correlation units
5	Events database	Stores events. Located on the SmartEvent Server.
6	SmartEvent client	Shows the received events. Uses the clients to manage events (for example: to filter and close events), fine-tunes, and installs the Event Policy. The clients are: SmartConsole SmartView Web Application

The SmartEvent components can be installed on one computer (that is, a standalone Configuration in which the Security Gateway and the Security Management Server products are installed and configured on the same server. deployment) or multiple computers and sites (a distributed deployment). To handle higher volumes of logging activity, we recommend a distributed deployment. Each SmartEvent Correlation Unit can analyze logs from more than one Log Server or Domain Log Server.
