How SmartView Monitor Works

Data for the status of all Security Gateways in the system is collected by the Security Management ServerClosed Dedicated Check Point server that runs Check Point software to manage the objects and policies in a Check Point environment within a single management Domain. Synonym: Single-Domain Security Management Server. and viewed in SmartView Monitor.

The data shows status for:

  • Check Point Security Gateways

  • OPSEC Gateways

  • Check Point Software Blades

Gateway Status is the SmartView Monitor view, which shows all component status information.

A Gateway Status view shows a snapshot of all Software Blades, such as VPN and ClusterXL, and third party products (for example, OPSEC Gateways).

Gateway Status is similar in operation to the SNMP daemon that provides a mechanism to get data about Gateways in the system.

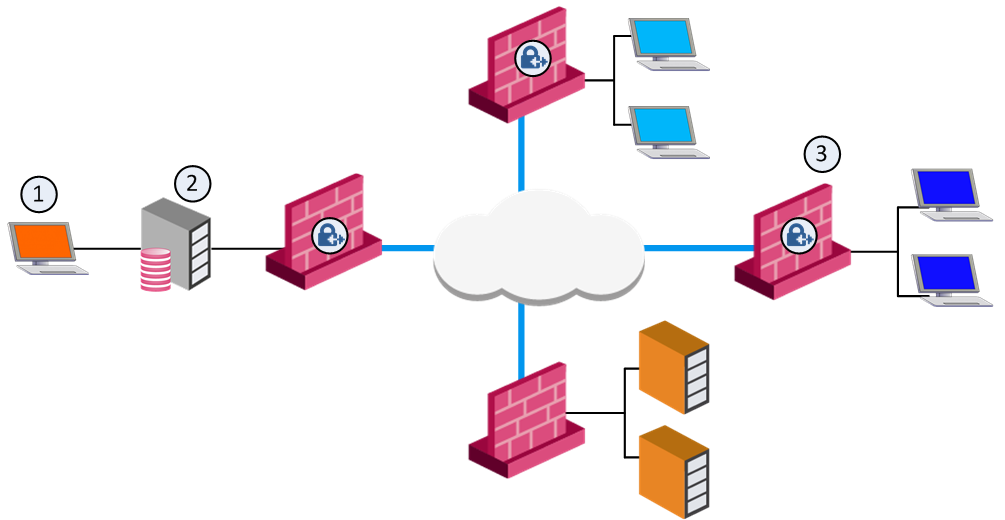

SICClosed Secure Internal Communication. The Check Point proprietary mechanism with which Check Point computers that run Check Point software authenticate each other over SSL, for secure communication. This authentication is based on the certificates issued by the ICA on a Check Point Management Server. is initialized between Security Gateways (3) (local and remote), and the Security Management ServerClosed Check Point Single-Domain Security Management Server or a Multi-Domain Security Management Server. (2). The Security Management Server then gets status data from the Software Blades with the AMON (Application Monitoring)protocol. SmartView Monitor (1) gets the data from the Security Management Server.
