Lists

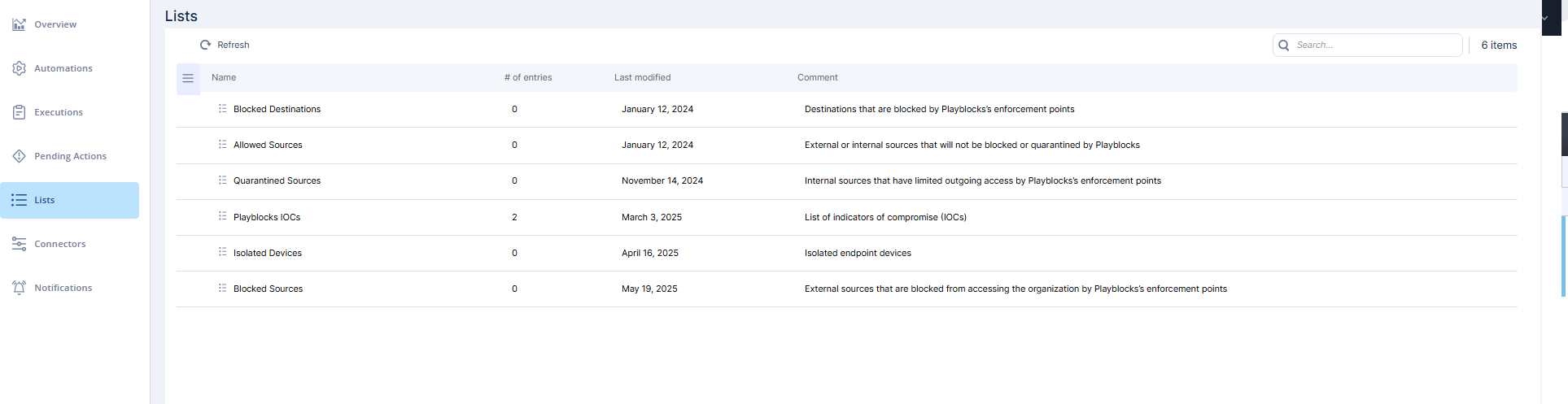

The Lists page shows the list of Blocked Destinations (IP address/subnet), Allowed, Blocked and Quarantined Sources (IP address/subnet) that are either created manually or automatically by Infinity Playblocks due to an automation execution.

To view the Lists page, access Infinity Playblocks and click Lists.

Name	Description
Blocked Destinations	Traffic sent from the organization to the destination IP address/subnet is blocked.
Allowed Sources	Traffic sent from the source IP addresses/subnets is not blocked or quarantined.
Blocked Sources	Traffic sent from these IP addresses/subnets to the organization is blocked.
Quarantined Sources	Internal IP addresses/subnets are quarantined and cannot communicate with other resources within the organization.

Configuring Lists Manually

To manually configure a list:

1. Access Infinity Playblocks and click Lists.

2. Select a list:

   • Blocked Destinations

   • Allowed Sources

   • Blocked Sources

   • Quarantined Sources

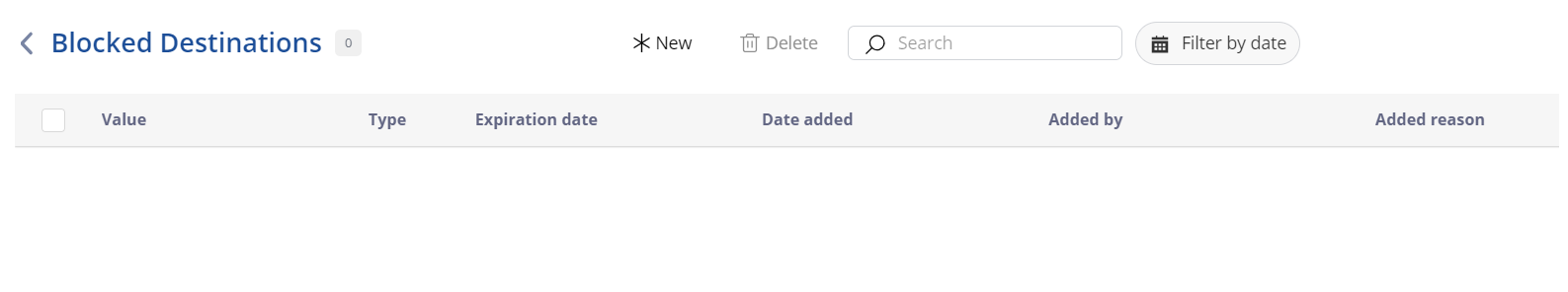

3. Click New.

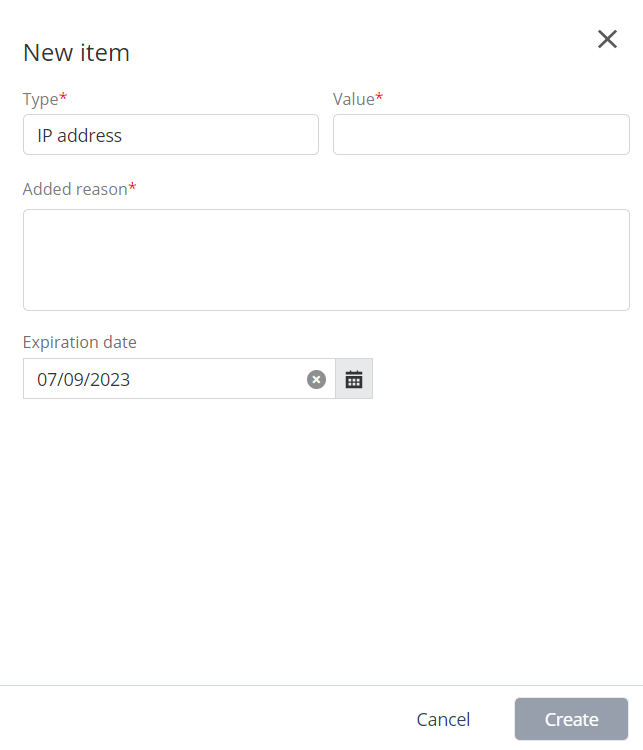

4. Enter these:

   1. In the Type list, select IP address, Subnet, or Range.

   2. In the Value field, enter a value.

      • For example, for subnet, enter 10.10.11.0/24.

      • For example, for IP range, enter 10.11.12.0-10.11.12.123.

   3. In the Added reason field, enter the reason for adding.

   4. Set the Expiration Date.



5. Click Create.

6. To delete, select the IP address and click Delete.
