Okta

Configure settings in the Check Point Portal IDP Integration wizard and in the Okta Workforce Identity Cloud portal to configure the SSO authentication with Okta.

Prerequisite

  • Permissions to your company's DNS server if you select login-based domain verification as the integration type.

  1. From the left toolbar, click Getting started.

  2. In the Connect a directory section, click Connect (or Add another Directory).

    The IdP Integration wizard opens.

  3. Enter a name for the Integration Title and select Okta.

  4. Click Next.

In this step of the IdP Integration Wizard, you can configure SSO authentication for Check Point Portal administrators and for users of Check Point Portal services (for example: Harmony Connect). This configuration does not affect Identity and Trust user authentication.

  1. Select Enable Administrators to log in to the portal using this IdP.

  2. Select one of these options:

    • Login based on domain verification - Check Point Portal Administrators can log in to this Check Point Portal account with SSO from the Identity Provider. Administrators log in through the Check Point Portal login page.

    • Login with a unique URL - Check Point Portal Administrators can log in to multiple Check Point Portal accounts with SSO from the Identity Provider. Administrators log in using the URL that appears at the bottom of the Login with a unique URL section. Copy this URL and keep it in a safe place.

  1. In the Service(s) Integration section, select one of these options:

    • No Services - End users of Check Point Portal services cannot authenticate with SSO from the Identity Provider. This is the default configuration.

    • All Services - End users can log in with SSO from the Identity Provider to all Check Point services that support SSO.

    • Specific Service(s) - From the list of services, select service(s) to allow end users to log in with SSO from the Identity Provider. Available services:

      • Connect

      • Quantum Gateways

  2. Click Next (or, if you are editing a configuration, Apply) to complete the Integration Type configuration.

Note - If you selected Login with a unique URL for Integration Type, the Verify Domain step is not necessary.

  1. Connect to your DNS server.

  2. Copy the DNS Value from the Check Point Portal IdP Integration wizard > Verify Domain step.

  3. On your DNS server, enter the Value as a TXT record.

  4. In the Check Point Portal > Domain(s) section, enter a public DNS domain server name and click the plus icon.

    Check Point makes a DNS query to verify your domain's configuration.

  5. Optional - add more DNS domain servers.

  6. Click Next.

    Note - Wait until the DNS record propagates and becomes resolvable.

This video shows you how to complete the Allow Connectivity step in the IdP Configuration Wizard and create an Okta application for the Check Point Portal. To finish the integration of Okta with the Check Point Portal, you must complete the IdP configuration wizard in the Check Point Portal.

Watch the Video



Important - Keep the Check Point Portal Okta integration wizard and the Okta portal open throughout this procedure. Make sure they do not time out.

  1. Log in to your Okta Portal.

  2. Click Admin.

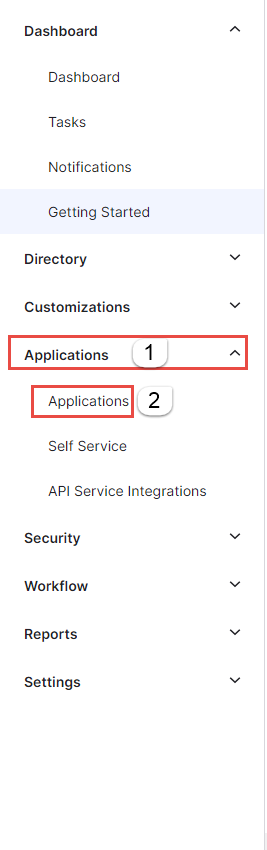

  3. From the left taskbar, click Applications > Applications.

    The Applications screen opens.

  4. Click Create App Integration.

    The Create a new app integration window opens.

  5. Select SAML 2.0 and click Next.

    The Create SAML Integration window opens.

  6. In the General Settings tab > App name field, set the application name to Check Point Portal and click Next.

    The Configure SAML tab opens.

  1. In the Okta Portal > Configure SAML tab > SAML Settings menu > General section, configure SAML settings.

  2. Copy the Single sign-on (Destination URL) from the Check Point Portal to the Single sign-on URL field in the Okta Portal.

  3. In the Okta Portal, make sure that Use this for Recipient URL and Destination URL is selected. This option is selected by default.

  4. Copy the Audience URL (SP Entity ID) from the Check Point Portal to the Audience URI (SP Entity ID) field in the Okta Portal.

  5. In the Okta Portal > Name ID format field, select EmailAddress.

  6. In the Okta Portal > Application username field, make sure that Okta username is selected.

IdP-Initiated flow lets you connect directly to Check Point Portal from the Okta portal. To do this, you must create a Check Point Portal app card in the Okta portal. See the Okta documentation for App integrations.

To configure IdP Initiated flow, copy the Default Relay State from the Check Point Portal to the Default Relay State field in the Okta Portal.

Important - Before you can test the connectivity between Okta and Check Point Portal, you must complete all of the IdP integration steps in the Check Point Portal.

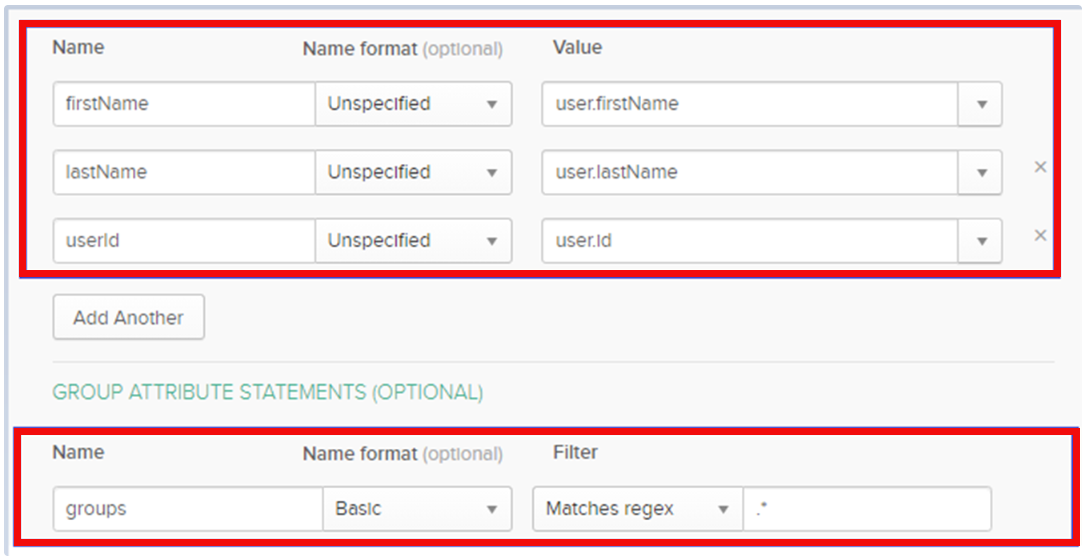

  1. In the SAML Settings menu, open the Attribute Statements section and create these attribute statements:

    • Name - firstName

      Name format - unspecified

      Value - user.firstName

    • Name - lastName

      Name format - unspecified

      Value - user.lastName

    • Name - userId

      Name format - unspecified

      Value - user.id

  2. In the SAML Settings menu, open the Group Attribute Statements section and create this group attribute statement:

    • Name - groups

      Name format - Basic

      Filter - Matches regex

      Value (this field does not have a name) - .*

    Important - Copy the name of the assigned group for use with the Check Point Portal User Group IdP ID field.

  3. Select This is an internal app that we have created and then click Finish.

On the Configure page, upload metadata from Okta to the Check Point Portal.

  1. In the Okta Portal, open the application you created for the Check Point Portal:

    1. From the left taskbar, click Applications > Applications.

      The Applications screen opens.

    2. Open the application you created for the Check Point Portal.

  2. Open the Sign On tab.

  3. In the SAML Signing Certificates section, select the table row of the active SAML certificate and click Actions > View IdP Metadata.

    A new window opens with the metadata.

  4. Save the metadata in a new file named CheckPointPortalOktaMetaData.XML.

  1. In the Check Point Portal, click Select File and upload the metadata XML file.

    Note - Check Point uses the service URL and the name of your Certificate to identify your users behind the sites.

  2. Click Next / Apply.

    Check Point verifies the metadata for Okta.

  1. In the Okta Portal, open the application you created for Check Point Portal.

    1. From the left taskbar, click Applications > Applications.

      The Applications screen opens.

    2. Open the application you created for the Check Point Portal

  2. In the Assignments tab, click Assign > Assign to groups.

  3. Select the relevant group from the list.

Directory Integration gets information about users and groups for the services you selected in the Integration Type step > Service(s) Integration section.

Directory Integration does not apply to Users and User Groups in the Check Point Portal.

Important - After you create a Directory Integration, you cannot change it. To create a different Directory Integration, you must create a new Identity Provider (IdP) Integration.

To integrate Okta with Identity and Trust, you must configure Directory Integration with Manual Sync. See To use Manual API Sync

To use Okta for SSO authentication only, select the checkbox I want to skip this step and use this IdP for SSO authentication only.

You can configure Directory Integration with Manual API Sync or with System for Cross-Domain Identity Management (SCIM).

Directory Integration Method

How it Works

Which Users and Groups are Synced

Manual Sync

Allows Check Point services to query for any change in Okta users and groups. The Check Point Portal pulls users and groups from Okta.

All users and groups in Okta.

SCIM

Allows Okta to push any change in the user and group directory to Check Point services.

Only users and groups in Okta that are assigned to the SAML application for the Check Point Portal.

Some Check Point services may need a permanent user ID (SID) from your directory. This ID lets the service reliably identify each employee and keep their access and permissions accurate, even when their profile changes.

Set up permissions to allow a selection of users and user groups from your Okta directory in the Check Point Portal Policy.

  1. In the Set Directory Integration step, select Manual API Sync.

  2. In the Okta Portal, configure and map an AD synchronization attribute to a custom attribute:

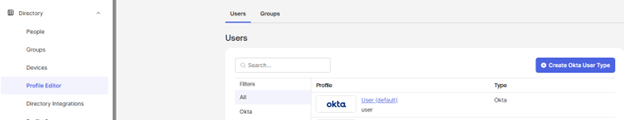

    1. Navigate to Directory > Profile Editor > User (default).

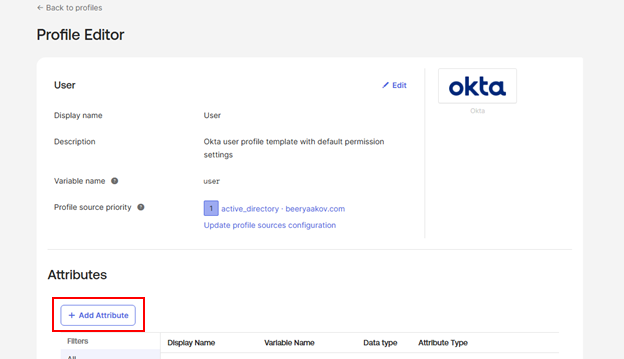

    2. Under Attributes, click Add Attribute.

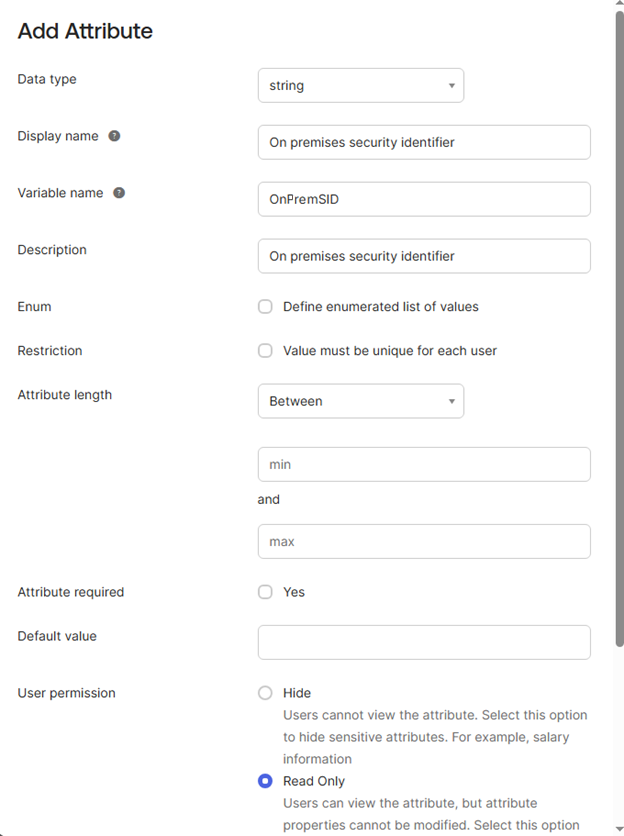

    3. Edit these parameters for the attribute:

      • Display name: On premises security identifier

      • Variable name: onPremSID

      • Description: On premises security identifier

    4. Add one more attribute and edit these parameters:

      • Display name: On premises SAM account name

      • Variable name: onPremSAMAccountName

      • Description: On premises SAM account name

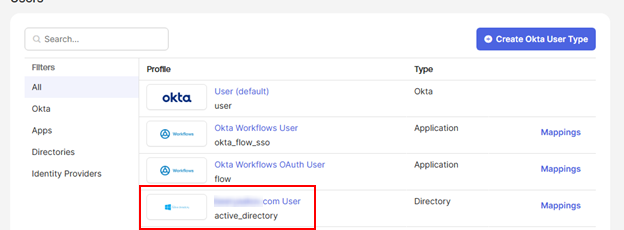

    5. Navigate to the profile editor of the synced Active Directory.

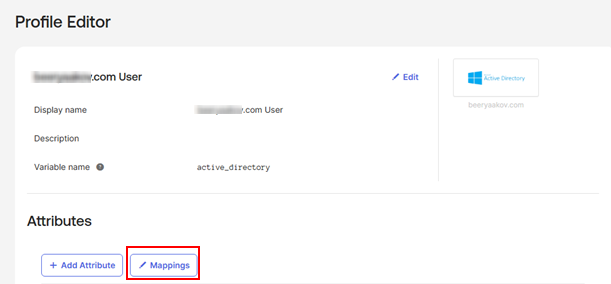

    6. Under Attributes, click Mappings.

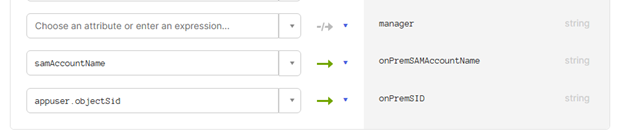

    7. Map the values and save the changes.

    8. Click Apply updates.

    9. To test the mapping:

      • Go to Directory > People and select an AD user.

      • Click Profile.

      • Search for onPremSID and see the following under attributes:

  3. Enter the details from your Okta account:

    1. In the Okta Portal, check your Okta domain. Usually, this name appears in the address bar and in your account name.

    2. Click the icon to the right of the Okta domain name to copy it.

    3. Paste the Okta domain name in the Okta Domain field on the Set Directory Integration page of the Identity Provider wizard.

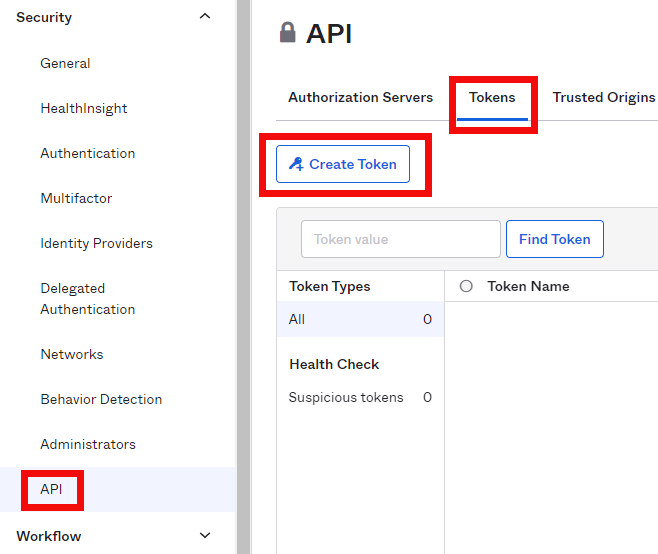

    4. In the Okta Portal, navigate to Security > API > Tokens and click Create Token.

    5. In the window that opens, enter the token name and click Create Token.

    6. Copy the Token Value.

      Best Practice - Check Point recommends that you save the Token Value in a separate, secure file to retrieve it when required.

    7. In the Check Point Portal Identity Provider wizard, on the Set Directory Integration page, paste the Token Value into the API Token Value field.

  4. To test the users and group synchronization between the Check Point Portal and the IdP, click Test Connectivity.

    If the test is unsuccessful, repeat the Set Directory Integration step to configure the user and group synchronization parameters.

  5. Click Next.

Prerequisites:

You must have an Okta account with administrator permissions and a SCIM provisioning subscription.

Step 1 - Configure the Directory Integration in the Check Point Portal:

  1. In the Set Directory Integration step, select Automatic Sync SCIM.

  2. Copy and save the SCIM API Token and URL.

  3. Click Next.

  4. Click Submit.

Step 2 - Configure the Application Integration in the Okta Admin Console:

  1. Navigate to your Okta account and go to Applications.

  2. Open the application you created for the Check Point Portal.

  3. Enable SCIM provisioning:

    1. Click Edit.

    2. Select Enable SCIM provisioning.

    3. Click Save.

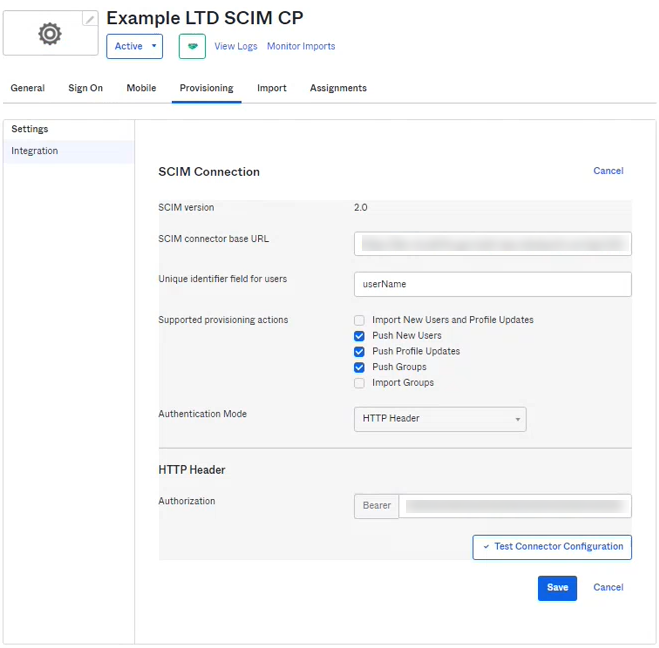

  4. Create the SCIM connection:

    1. Click Edit.

    2. For SCIM connector base URL, enter the URL from the Set Directory Integration step in the Check Point Portal.

    3. For Unique identifier field for users, enter userName.

    4. For Supported provisioning actions, enable these settings:

      • Push New Users

      • Push Profile Updates

      • Push Groups

    5. For Authentication Mode, from the down arrow, select HTTP Header and paste the API token.

    6. Click Save.

  5. Click Test Connector Configuration.

    Important - To test connectivity, you must first complete Step 1 - Configure the Directory Integration in the Check Point Portal: in its entirety.

    If the integration is configured correctly, the Test Connector Configuration window shows Connector configured successfully.

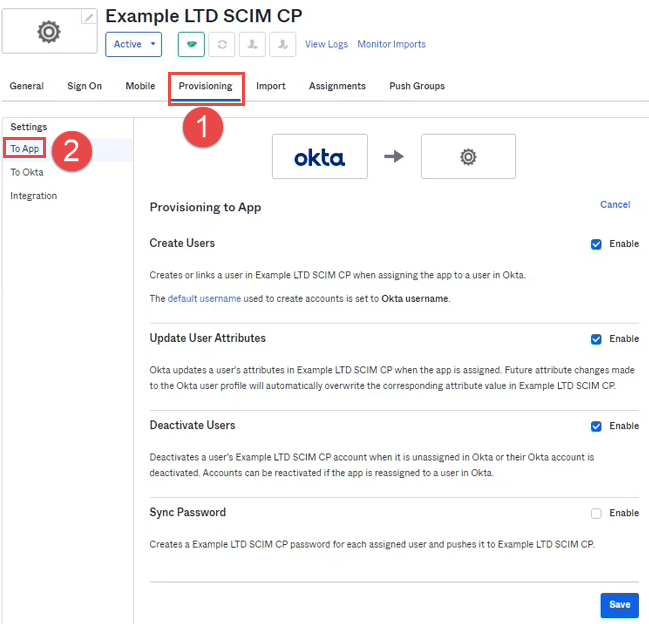

  6. From the top toolbar, select Provisioning, and below Settings select To app.

  7. Enable these settings:

    • Create Users

    • Update User Attributes

    • Deactivate Users

  8. Click Save.

Note - This step is not necessary if you selected to use SCIM.

  1. Review the details of the SSO configuration and click Submit.

    The IDP Configuration Wizard closes.

  2. In the Check Point Portal, create a user group with the applicable roles and assign it to the related IdP group name or ID. This depends on the applicable identity provider before you log out. For more information, see User Groups.
