Code Security CI/CD Integrations

To integrate Code Security with your CI/CD, download the Code Security engine and run a scan in your test or build scripts.

Notes:

  • Code Security team cryptographically signs its binaries. However, you can download the Code Security binary and store it in your own artifact store periodically, then, you can pull from your own store in your CI workflows.

  • Use $HOME/.spectral/spectral scan --ok if you do not want to break builds. It is common to use this mode when you ramp up your discovery of issues or when you have a different kind of security workflow.

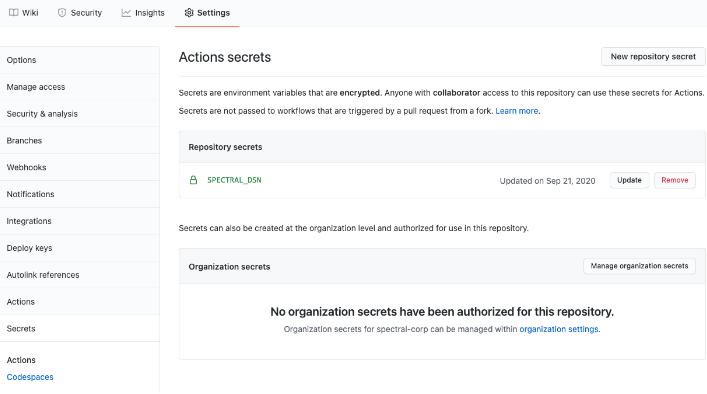

Get your DSN from the Code Security platform and set up your SPECTRAL_DSN in the CI environment variables as a secret. For more information, click here.

Example of the configuration:

Copy

.github/workflows/scan.yml

name: Main
on:
  push:
    branches: [ main ]

env:
  SPECTRAL_DSN: ${{ secrets.SPECTRAL_DSN }}

jobs:
  scan:
    runs-on: ubuntu-latest
    steps:
    - uses: actions/checkout@v2
    - name: Install and run Spectral CI
        uses: spectralops/spectral-github-action@v2
        with:
          spectral-dsn: ${{ env.SPECTRAL_DSN }}
          spectral-args: scan --ok

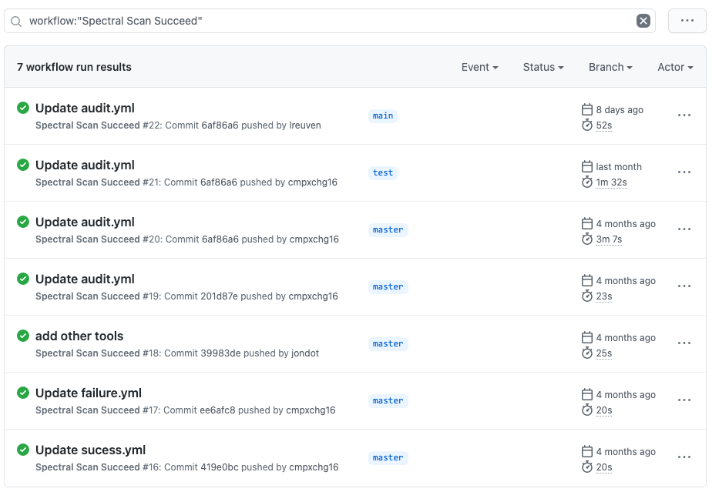

Example of a build integrated with Code Security:

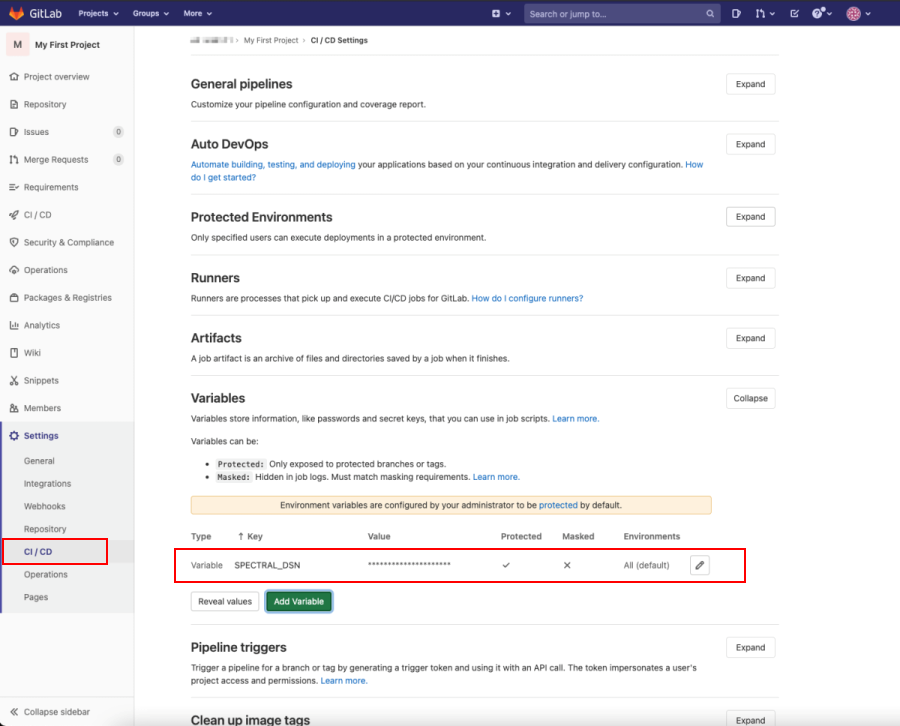

Get your DSN from the Code Security platform and set up your DSN in the GitLab variables store as SPECTRAL_DSN.

Note - Make sure to select the Protected variable option.

Example of configuration in the US region:

For Dome9 users

Copy

.gitlab-ci.yml

build-job:
  stage: build
  script:
    - curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
    - $HOME/.spectral/spectral scan --ok

For Infinity users

Copy

.gitlab-ci.yml

build-job:
  stage: build
  script:
    - curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
    - $HOME/.spectral/spectral scan --ok

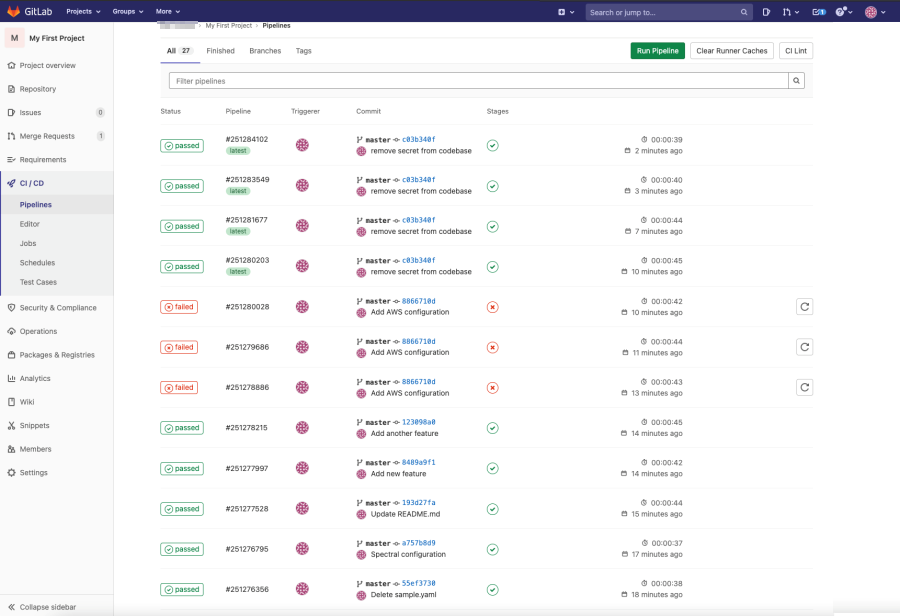

Example of a build integrated with Code Security:

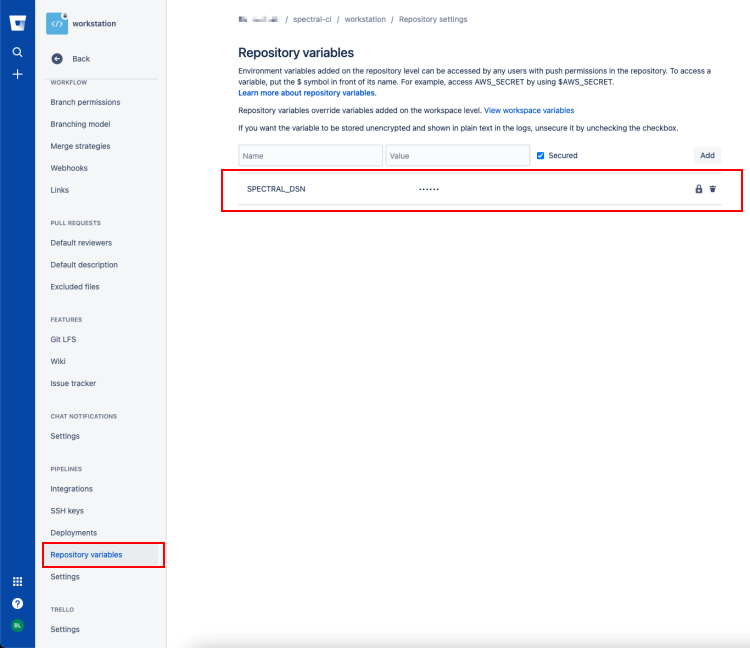

Get your DSN from the Code Security platform and store it as SPECTRAL_DSN in variables and secrets.

Example of configuration in the US region:

For Dome9 users

Copy

bitbucket-pipelines.yml

image: atlassian/default-image:2

pipelines:
  default:
    - parallel:
      - step:
          name: 'Install & run Spectral'
          script:
            - curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
            - $HOME/.spectral/spectral scan --ok

For Infinity users

Copy

bitbucket-pipelines.yml

image: atlassian/default-image:2

pipelines:
  default:
    - parallel:
      - step:
          name: 'Install & run Spectral'
          script:
            - curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
            - $HOME/.spectral/spectral scan --ok

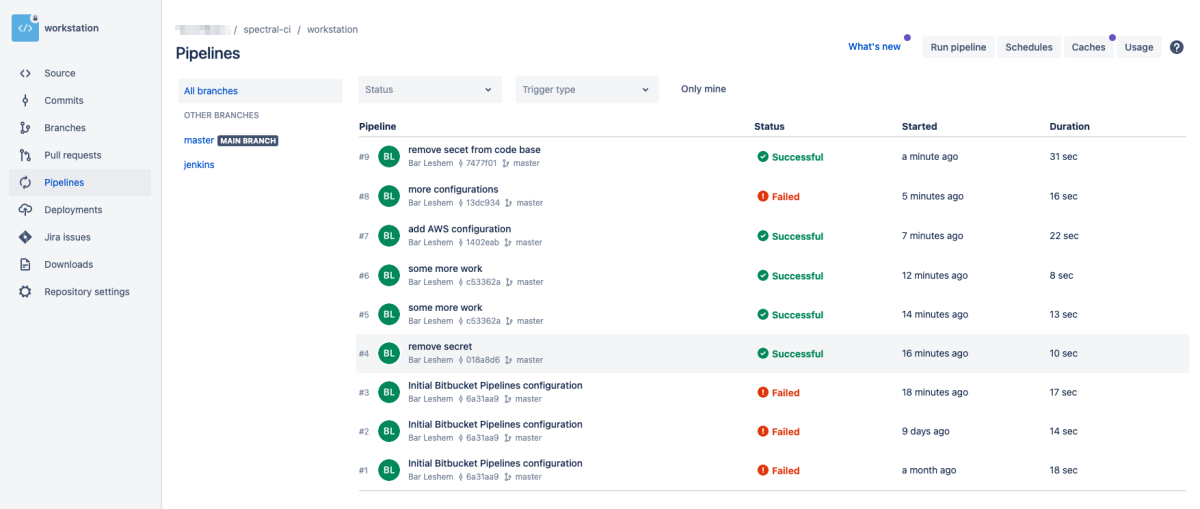

Example of a build integrated with Code Security:

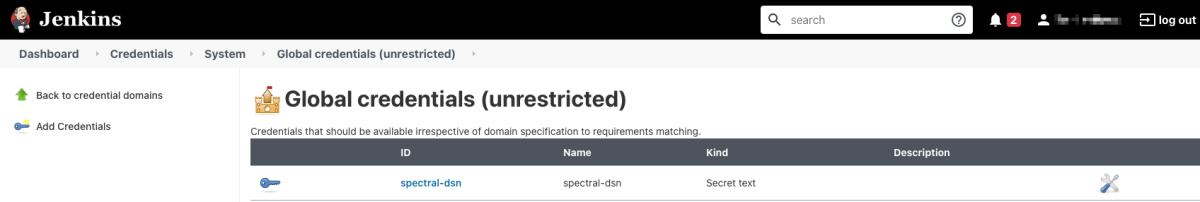

Get your DSN from the Code Security platform and store it as SPECTRAL_DSN in Jenkins Credentials store.

Example of configuration in the US region:

For Dome9 users

Copy

Jenkinsfile

pipeline {
  agent any
  environment {
    SPECTRAL_DSN = credentials('spectral-dsn')
  }
  stages {
    stage('install Spectral') {
      steps {
        sh "curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh"
      }
    }
    stage('scan for issues') {
      steps {
        sh "$HOME/.spectral/spectral scan --ok"
      }
    }
  }
}

For Infinity users

Copy

Jenkinsfile

pipeline {
  agent any
  environment {
    SPECTRAL_DSN = credentials('spectral-dsn')
  }
  stages {
    stage('install Spectral') {
      steps {
        sh "curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh"
      }
    }
    stage('scan for issues') {
      steps {
        sh "$HOME/.spectral/spectral scan --ok"
      }
    }
  }
}

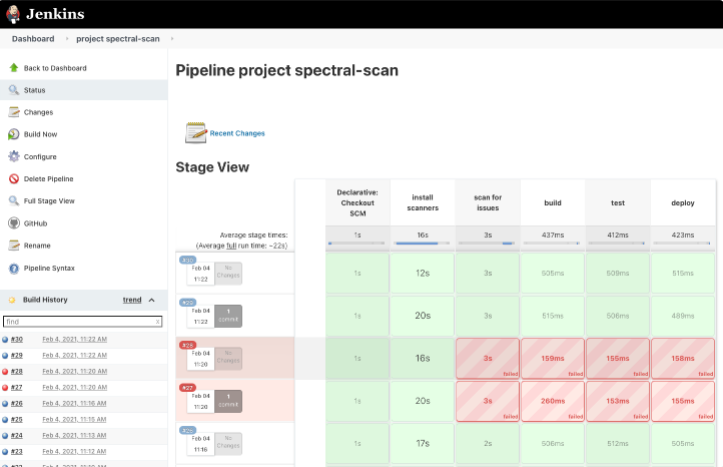

Example of a build integrated with Code Security:

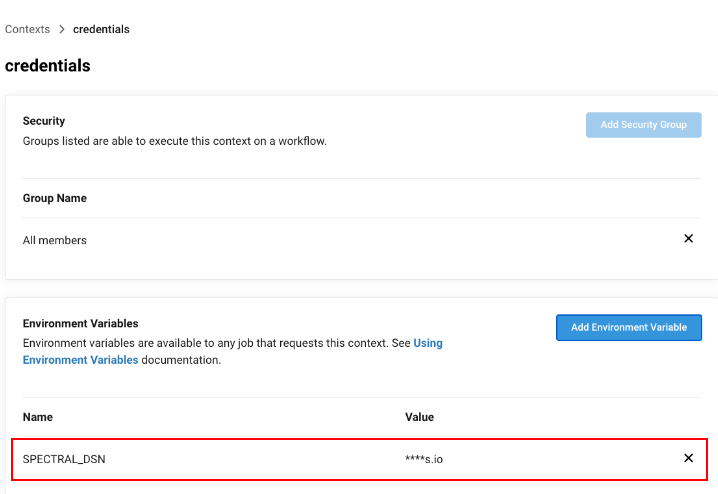

Get your DSN from the Code Security platform and set up your DSN in CircleCI Secrets Store as SPECTRAL_DSN.

Example of configuration in the US region:

For Dome9 users

Copy

.circleci/config.yml

version: 2.1
workflows:
  test-env-vars:
    jobs:
      - build:
          context:
            - SPECTRAL_DSN
jobs:
  build:
    docker:
      - image: circleci/node:latest
    steps:
      - checkout
      - run: curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
      - run: $HOME/.spectral/spectral scan --ok

For Infinity users

Copy

.circleci/config.yml

version: 2.1
workflows:
  test-env-vars:
    jobs:
      - build:
          context:
            - SPECTRAL_DSN
jobs:
  build:
    docker:
      - image: circleci/node:latest
    steps:
      - checkout
      - run: curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
      - run: $HOME/.spectral/spectral scan --ok

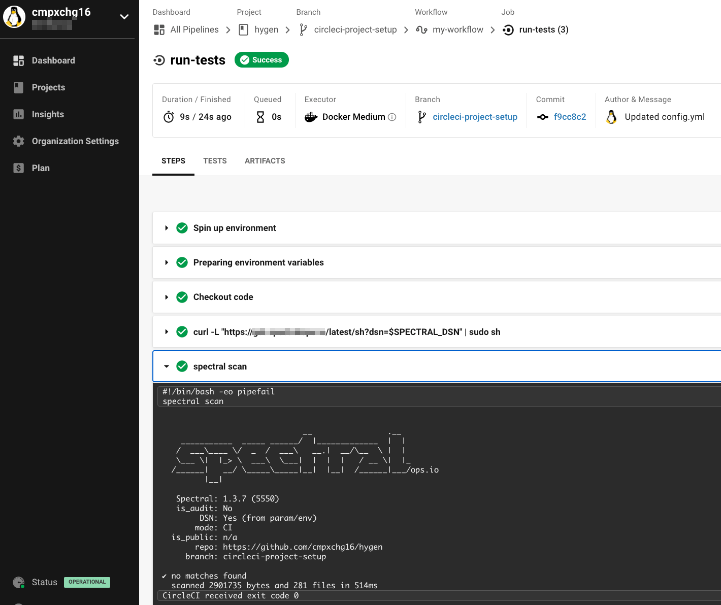

Example of a build integrated with Code Security:

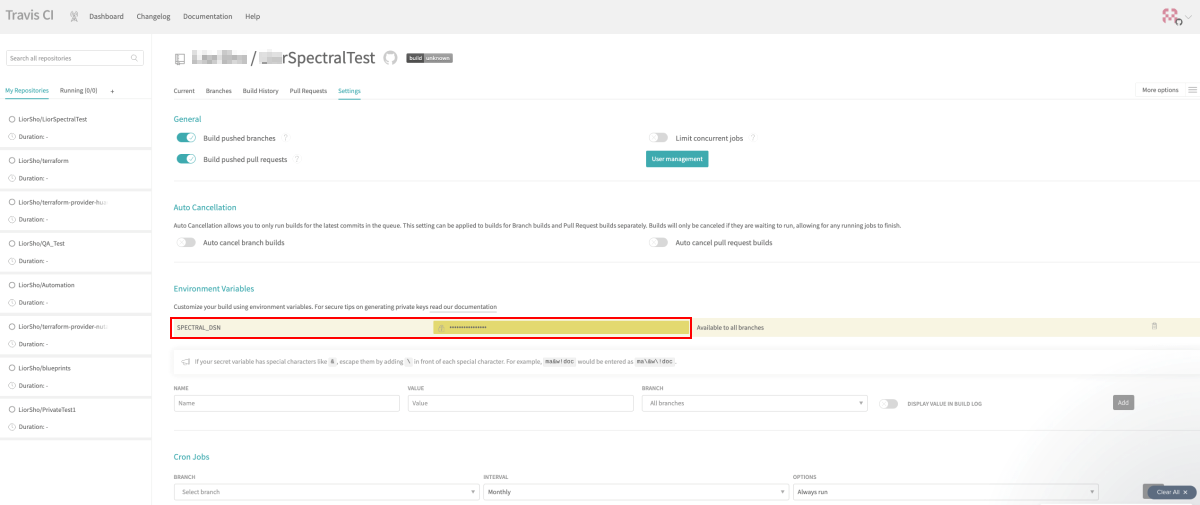

Get your DSN from the Code Security platform and store it as SPECTRAL_DSN in the Travis Env Store.

Example of configuration in the US region:

For Dome9 users

Copy

.travis.yml

language: ruby
install:
                        - curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
    - $HOME/.spectral/spectral --version
script:
    - $HOME/.spectral/spectral scan --ok

For Infinity users

Copy

.travis.yml

language: ruby
install:
                        - curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
    - $HOME/.spectral/spectral --version
script:
    - $HOME/.spectral/spectral scan --ok

Example of a build integrated with Code Security:

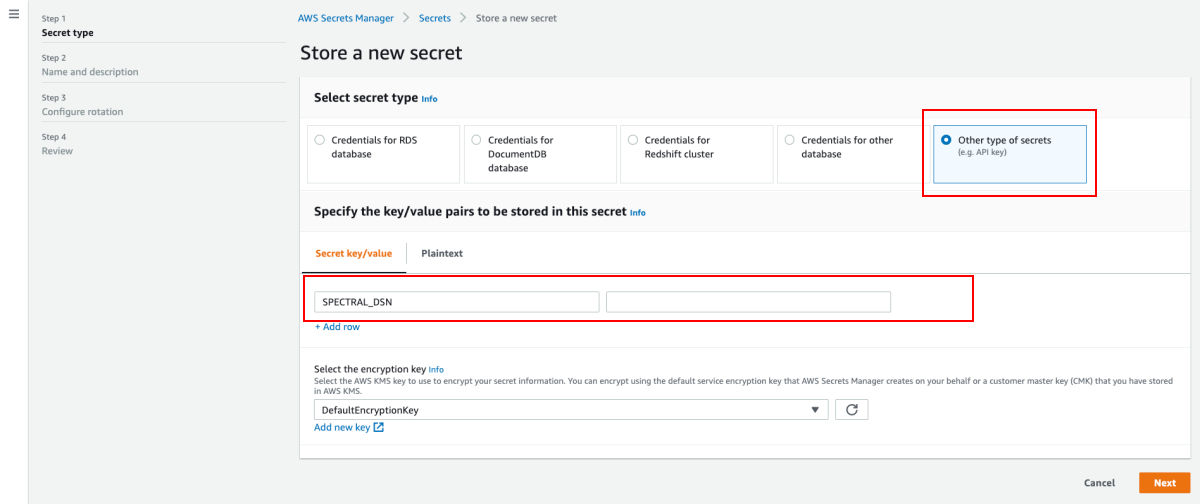

Get your DSN from the Code Security platform and store it as SPECTRAL_DSN in Secrets Manager.

Example of configuration in the US region:

For Dome9 users

Copy

buildspec.yml

version: 0.2
env:
  secrets-manager:
    SPECTRAL_DSN: your-secrets-arn:SPECTRAL_DSN
phases:
  build:
    commands:
      - ...
  post_build:
    commands:
      - curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
      - $HOME/.spectral/spectral scan --ok

For Infinity users

Copy

buildspec.yml

version: 0.2
env:
  secrets-manager:
    SPECTRAL_DSN: your-secrets-arn:SPECTRAL_DSN
phases:
  build:
    commands:
      - ...
  post_build:
    commands:
      - curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$SPECTRAL_DSN" | sh
      - $HOME/.spectral/spectral scan --ok

Example of a build integrated with Code Security:

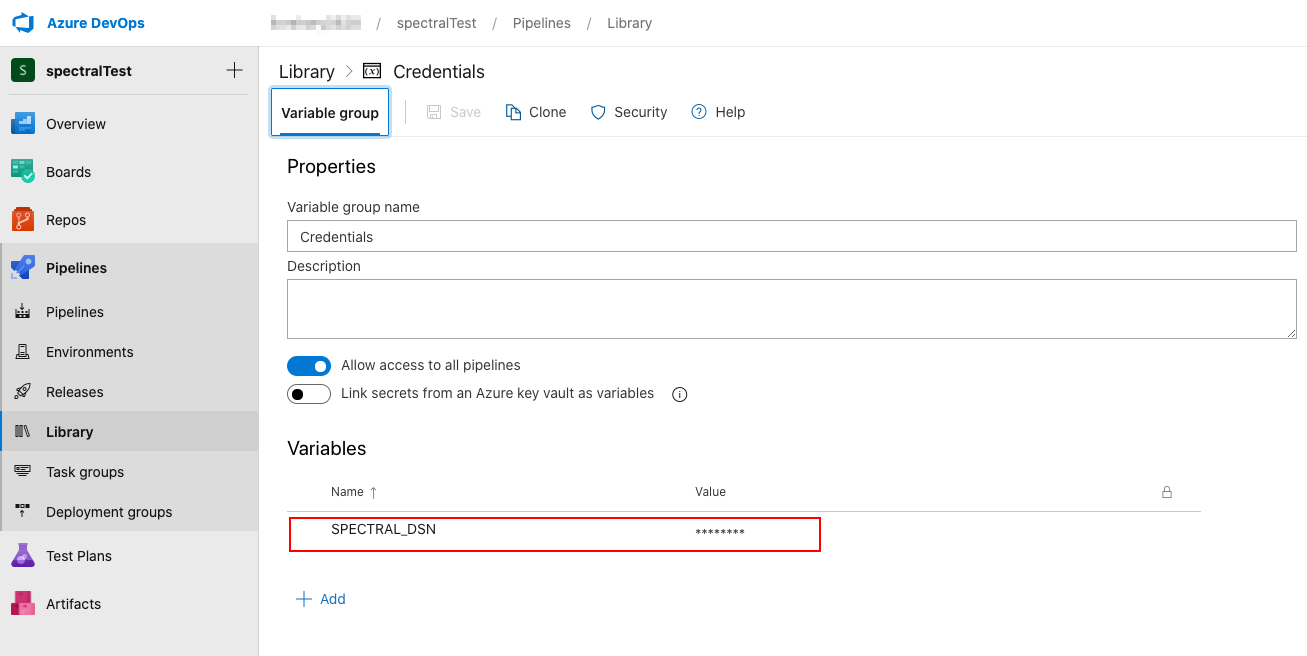

Get your DSN from the Code Security platform and store it as SPECTRAL_DSN in your secret variables.

Example of configuration in the US region:

For CloudGuard Standalone (Dome9) users

Copy

build.yml

trigger:
- main
pool:
  vmImage: 'ubuntu-latest'
steps:
- task: CmdLine@2
  displayName: Checkout $(Build.SourceBranchName)
  inputs:
    - script: 'git checkout $(Build.SourceBranchName)'
- script: curl -L 'https://spectral-us.dome9.com/latest/x/sh?dsn=$(SPECTRAL_DSN)' | sh
  displayName: 'Install Spectral'
- script: $HOME/.spectral/spectral scan --ok --dsn $(SPECTRAL_DSN)
  displayName: 'Spectral Scan'

For CloudGuard Infinity users

Copy

build.yml

trigger:
- main
pool:
  vmImage: 'ubuntu-latest'
steps:
- task: CmdLine@2
  displayName: Checkout $(Build.SourceBranchName)
  inputs:
    - script: 'git checkout $(Build.SourceBranchName)'
- script: curl -L 'https://spectral-us.checkpoint.com/latest/x/sh?dsn=$(SPECTRAL_DSN)' | sh
  displayName: 'Install Spectral'
- script: $HOME/.spectral/spectral scan --ok --dsn $(SPECTRAL_DSN)
  displayName: 'Spectral Scan'

Example of a build integrated with Code Security:

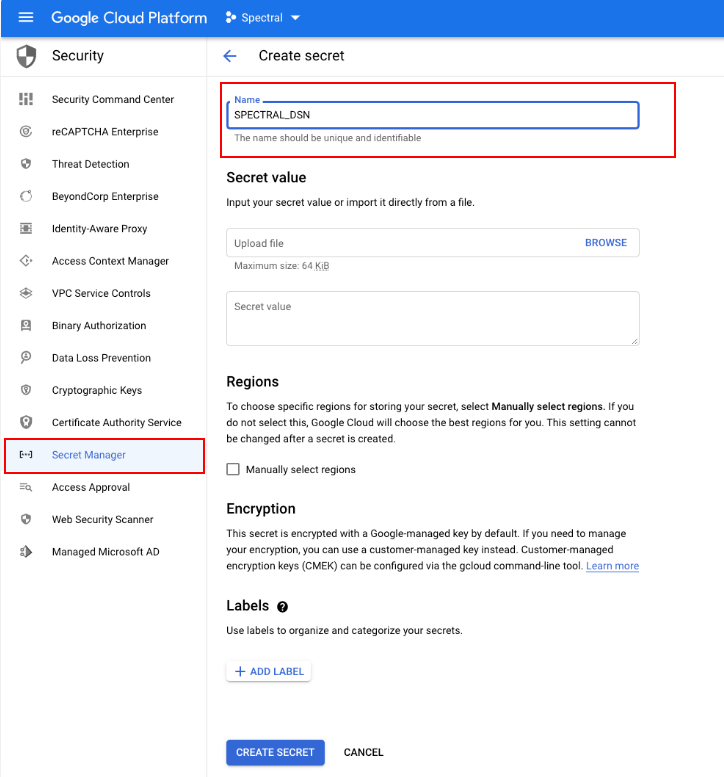

Get your DSN from the Code Security platform and store it as SPECTRAL_DSN in Secret Manager.

Example of configuration in the US region:

For Dome9 users

Copy

cloudbuild.yaml

steps:
  - name: gcr.io/cloud-builders/gcloud

  id: Spectral
  entrypoint: bash
  args:
    - -c
    - |
      curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$$SPECTRAL_DSN" | sh
      $$HOME/.spectral/spectral scan --ok

  secretEnv:
    - SPECTRAL_DSN

availableSecrets:
  secretManager:
    - versionName: projects/PROJECT_ID/secrets/SPECTRAL_DSN/versions/latest
      env: SPECTRAL_DSN

For Infinity users

Copy

cloudbuild.yaml

steps:
  - name: gcr.io/cloud-builders/gcloud

  id: Spectral
  entrypoint: bash
  args:
    - -c
    - |
      curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$$SPECTRAL_DSN" | sh
      $$HOME/.spectral/spectral scan --ok

  secretEnv:
    - SPECTRAL_DSN

availableSecrets:
  secretManager:
    - versionName: projects/PROJECT_ID/secrets/SPECTRAL_DSN/versions/latest
      env: SPECTRAL_DSN

Example of a build integrated with Code Security:

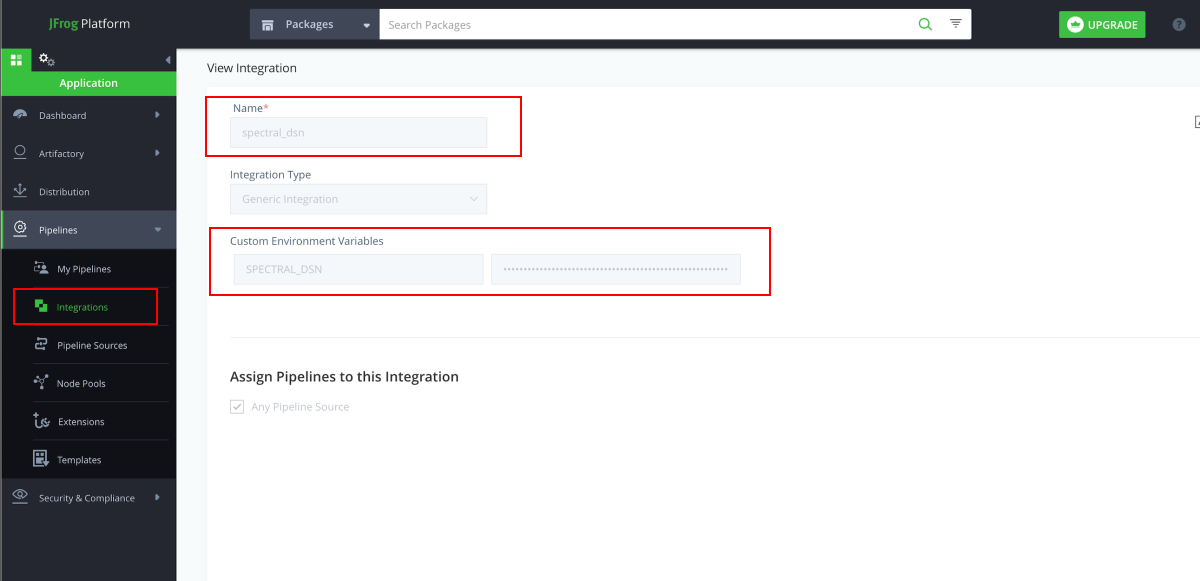

Get your DSN from the Code Security platform and store it as SPECTRAL_DSN in the pipelines secrets.

Example of configuration in the US region:

For Dome9 users

Copy

build.yaml

resources:
- name: myScannedRepo
  type: GitRepo
  configuration:
    # Your JFrog integration with Github
    gitProvider: "integration_name"
    # Github repository
    path: "org-name/repository-name"
    branches:
      include: main

pipelines:
- name: Spectral
  steps:
    - name: SpectralScan
      type: Bash
      configuration:
          integrations:
              - name: spectraldsn
          inputResources:
              - name: myScannedRepo
      execution:
        onExecute:
          - cd dependencyState/resources/myScannedRepo
          - curl -L "https://spectral-us.dome9.com/latest/x/sh?dsn=$int_spectraldsn_SPECTRAL_DSN" | sh
          - $HOME/.spectral/spectral scan --ok --dsn $int_spectraldsn_SPECTRAL_DSN

For Infinity users

Copy

build.yaml

resources:
- name: myScannedRepo
  type: GitRepo
  configuration:
    # Your JFrog integration with Github
    gitProvider: "integration_name"
    # Github repository
    path: "org-name/repository-name"
    branches:
      include: main

pipelines:
- name: Spectral
  steps:
    - name: SpectralScan
      type: Bash
      configuration:
          integrations:
              - name: spectraldsn
          inputResources:
              - name: myScannedRepo
      execution:
        onExecute:
          - cd dependencyState/resources/myScannedRepo
          - curl -L "https://spectral-us.checkpoint.com/latest/x/sh?dsn=$int_spectraldsn_SPECTRAL_DSN" | sh
          - $HOME/.spectral/spectral scan --ok --dsn $int_spectraldsn_SPECTRAL_DSN

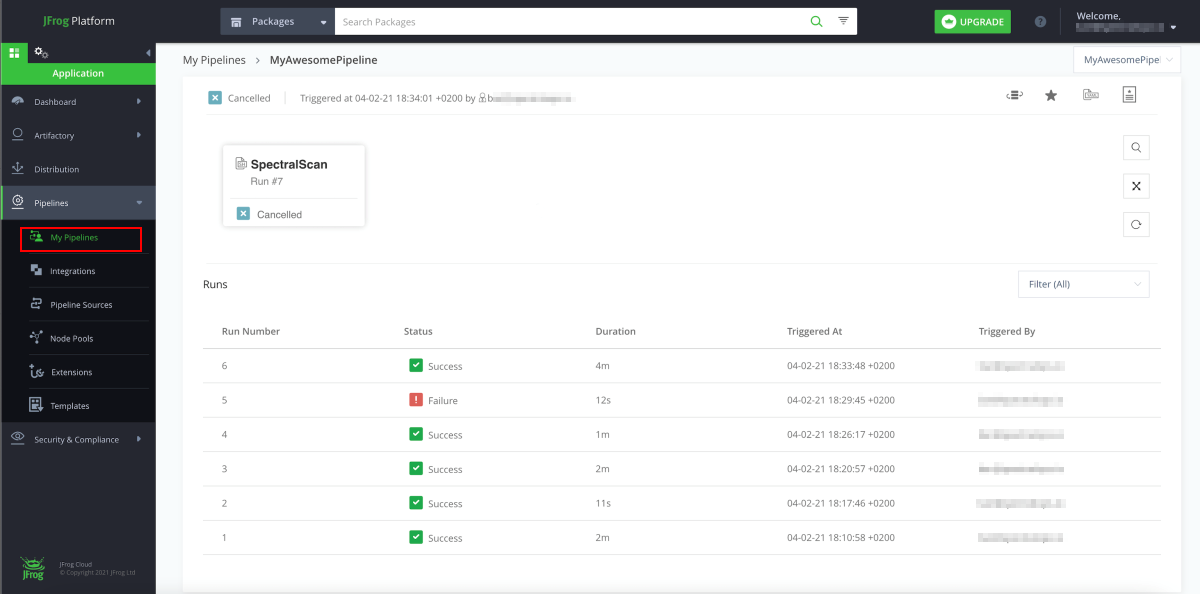

Example of a build integrated with Code Security:
