XCode Instructions

Check Point supports the Harmony App Protect integration through CocoaPods.

To integrate through CocoaPods:

  1. Add these lines to your Podfile:

    Copy
    platform :ios, '11.0'
        inhibit_all_warnings!
        use_frameworks!

        target :<YOUR_TARGET_NAME> do

            pod ‘sandblast_app_protect'

        post_install do |installer|
            installer.pods_project.targets.each do |target|
              if ['SwiftKeychainWrapper', 'AWSS3', 'AWSCore', 'RNCryptor', 'Alamofire', 'SSZipArchive'].include? target.name
                target.build_configurations.each do |config|
                  config.build_settings['BUILD_LIBRARY_FOR_DISTRIBUTION'] = 'YES'
                end
              end
            end
          end
        end


  2. Run the pod install command. You can now use the Harmony App Protect in your project.

  3. To integrate the Harmony App Protect framework into your XCode project, link the SBM.framework package to it.

Using Xcode 10

To link Harmony App Protect.framework:

  1. Select your project file and make sure to select your target.

  2. Select General > Embedded Binaries and click +.

    A new window opens and shows the available frameworks and libraries.

  3. At the bottom, click Add Other....

  4. Select the SBM.framework package and click Open.

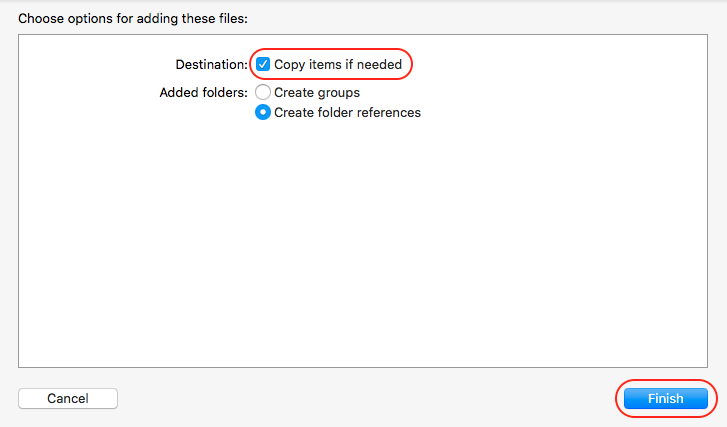

  5. Select the Copy items if needed checkbox and click Finish.

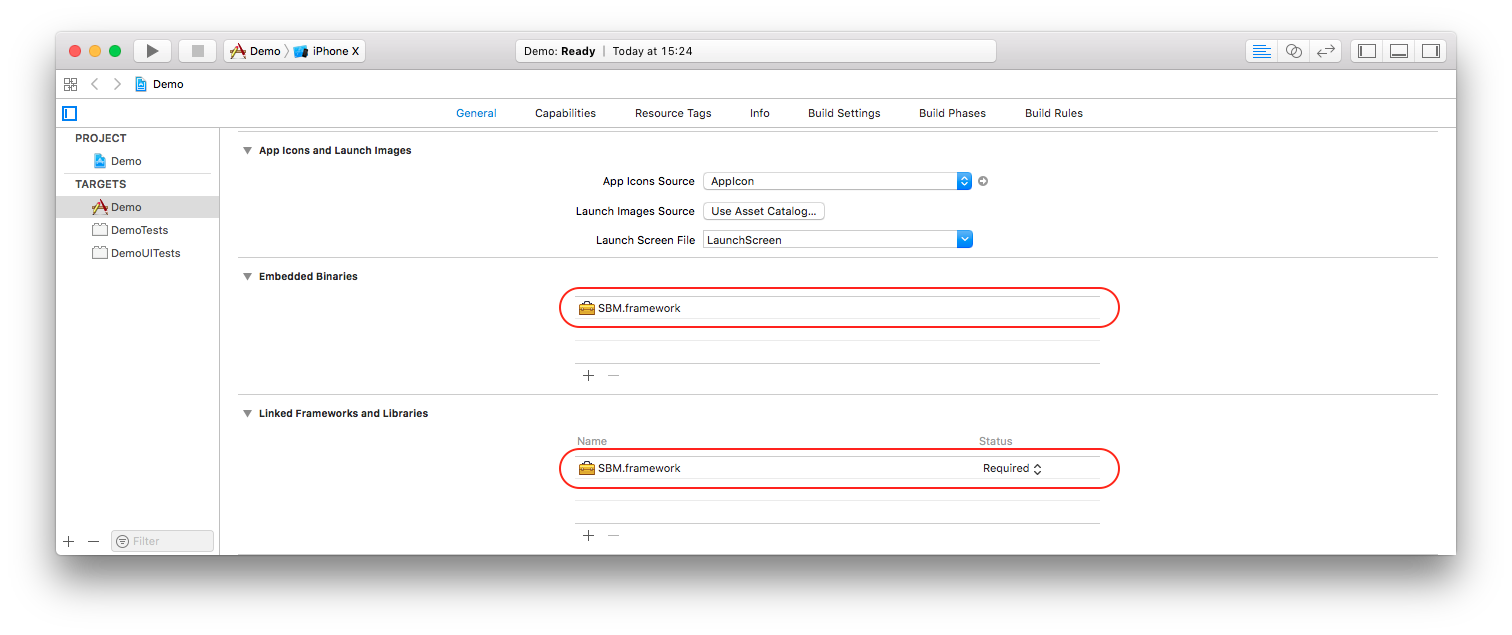

  6. The SBM.framework package now appears in the Embedded Binaries and Linked Frameworks and Libraries.

  7. If your app uses React Native, select Build Settings and scroll to User-Defined. Add new key SWIFT_VERSION with value 5.0.

Using Xcode 11

To link the SBM.framework:

  1. Move the SBM.framework file into the same folder as your Xcode project.

  2. Select your project file and make sure to select your target.

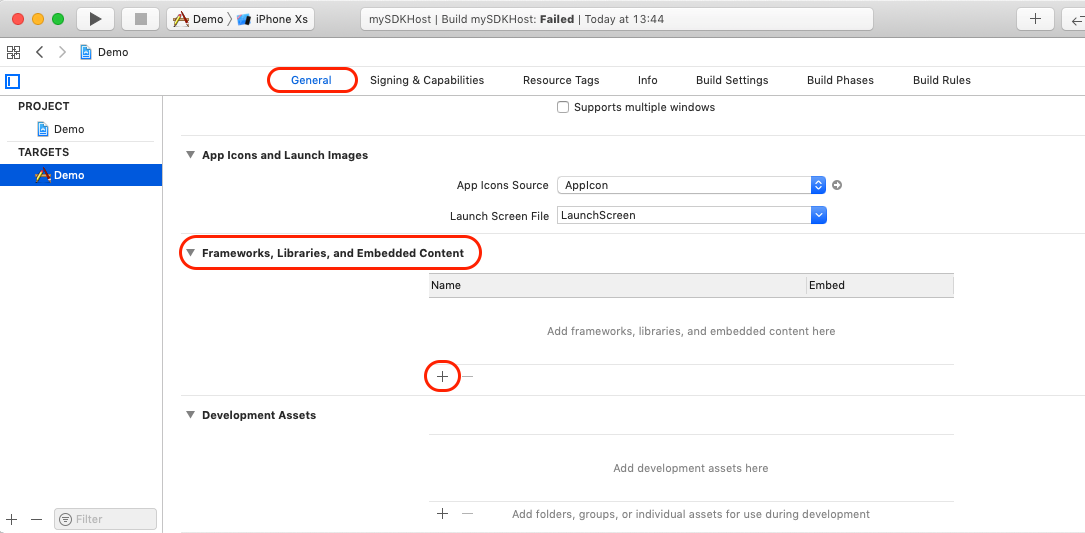

  3. Select General > Frameworks, Libraries, and Embedded Content and click +.

    A new window opens and shows the available frameworks and libraries.

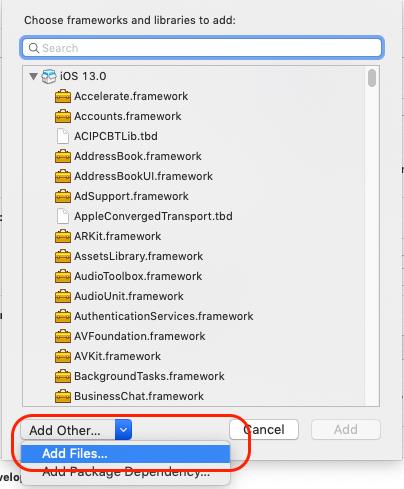

  4. Click Add Other… > Add Files....

  5. Select the SBM.framework package and click Open.

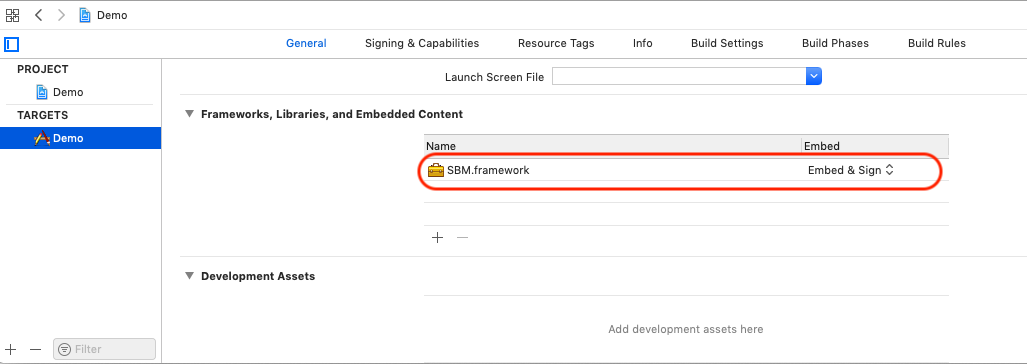

    The SBM.framework package appears in the Frameworks, Libraries, and Embedded Content section.

  6. If your app uses React Native, select Build Settings and scroll to User-Defined.
    Add new key SWIFT_VERSION with value 5.0.

    If not, continue with step 8.

  7. Add support for CocoaPods in your project (see https://cocoapods.org).

  8. Add this code to your Podfile:

    Copy
    platform :ios, '11.0'
            inhibit_all_warnings!
            use_frameworks!

            def sbm_pods
                pod ‘AWSS3', ‘2.10.0'
                pod ‘Alamofire', ‘4.9.1'
                pod ‘SwiftKeychainWrapper', ‘3.4.0'
                 pod ‘SSZipArchive', ‘2.2.2'
                 pod ‘RNCryptor', ‘5.1.0'
            end

            target :<YOUR_TARGET_NAME> do
                sbm_pods
            end

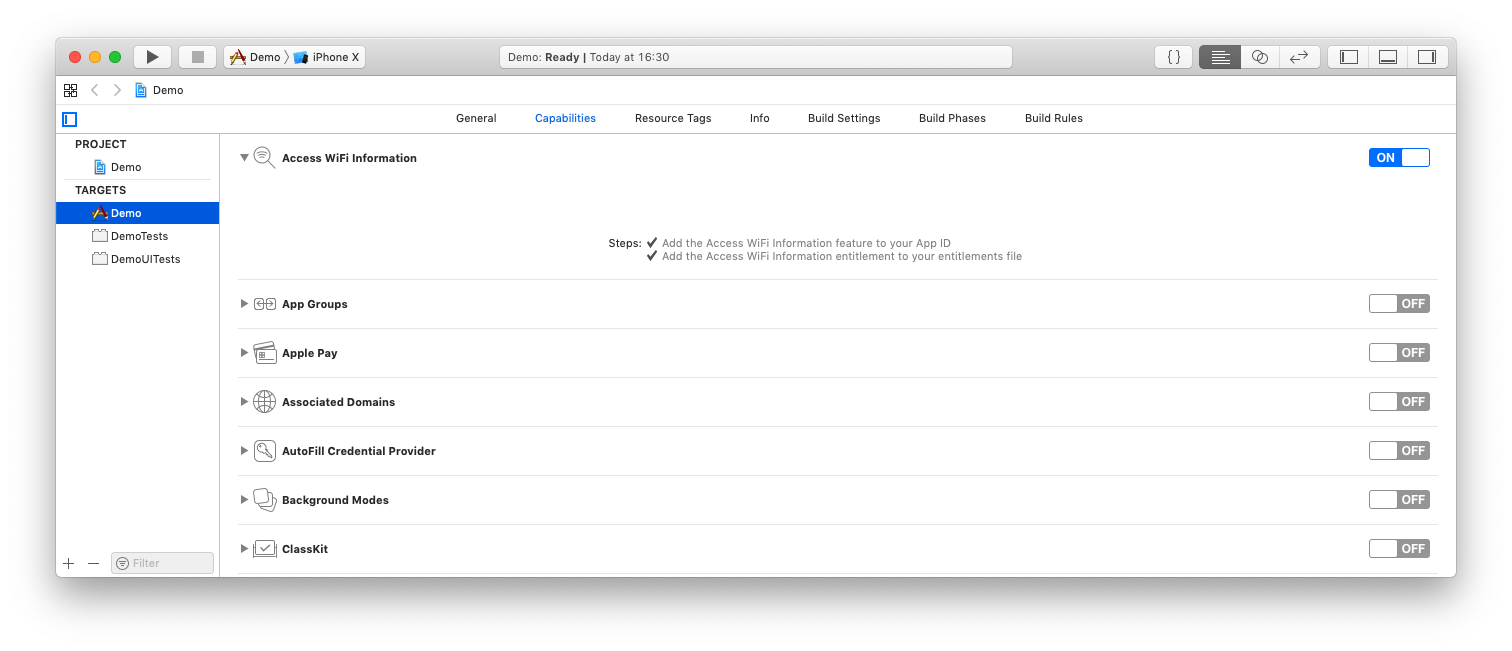

  9. Add the Access WiFi Information capability to receive WiFi network SSIDClosed Service Set Identifier. The technical term for a wireless network name that you see when you connect your device to your wireless home network. during a MiTM attack.

React Native Support

To integrate the Harmony App Protect to an existing React Native app:

  1. Run this command from the project’s folder:

    Copy
    npm install https://us-artifactory.locsec.net/artifactory/sbm-sdk-ios/com.checkpoint/sbm-rn-sdk/latest.tgz

    The npm command creates Podfile in the iOS folder (if it does not exist). If the project already uses CocoaPods, you must edit it.

  2. The Harmony App Protect requires frameworks. Make sure the iOS Podfile has the option use_frameworks! under the project’s target. You may need to disable "use_flipper()" as it does not support frameworks.

  3. iOS uses CocoaPods to install the Harmony App Protect. Make sure you have CocoaPods installed, or install it using sudo gem install cocoapods or brew install cocoapods on M1 Macs.

  4. Install the Harmony App Protect and all its dependencies. Run this command from the command line:

    $ pod install

    Note - iOS requires additional configuration similar to when it uses the basic SDK. For more information, see Enabling HTTP Requests.

Enabling HTTP Requests

Network detection detects any network attacks. To run network detection, the Harmony App Protect must perform a HTTP call which by default is not enabled for apps. The hosting app must add an exception to enable HTTP access to the Harmony App Protectdetection site.

Copy
<key>NSAppTransportSecurity</key>
        <dict>
            <key>NSExceptionDomains</key>
            <dict>
                <key>bosko.locsec.net</key>
                <dict>
                    <key>NSIncludesSubdomains</key>
                    <true/>
                    <key>NSExceptionAllowsInsecureHTTPLoads</key>
                    <true/>
                    <key>NSExceptionRequiresForwardSecrecy</key>
                    <true/>
                    <key>NSExceptionMinimumTLSVersion</key>
                    <string>TLSv1.2</string>
                    <key>NSThirdPartyExceptionAllowsInsecureHTTPLoads</key>
                    <false/>
                    <key>NSThirdPartyExceptionRequiresForwardSecrecy</key>
                    <true/>
                    <key>NSThirdPartyExceptionMinimumTLSVersion</key>
                    <string>TLSv1.2</string>
                    <key>NSRequiresCertificateTransparency</key>
                    <false/>
                </dict>
            </dict>
        </dict>



Flutter and Ionic Support

No changes are required.
