Introduction
Microsoft Azure Virtual WAN is a service that lets customers easily establish optimized large-scale branch connectivity using Azure and the Microsoft global network.
Microsoft Azure Virtual WAN is a networking service that provides optimized and automated branch-to-branch connectivity through Azure.
This guide provides step-by-step instructions to configure and use the Check Point Integration Tool for Microsoft Azure Virtual WAN.

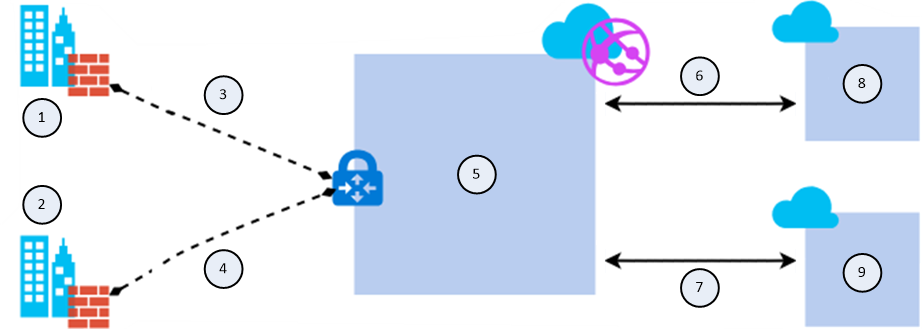

Example diagram:
|
Item |
Description |
|---|---|
|
1 |
First on-premises Security Gateway (for example: USA, Ohio) |
|
2 |
Second on-premises Security Gateway (for example: USA, New York) |
|
3 |
IPsec Site to Site VPN tunnel from the first on-premises Security Gateway (1) to the Microsoft Azure Virtual Hub (5) |
|
4 |
IPsec Site to Site VPN tunnel from the second on-premises Security Gateway (2) to the Microsoft Azure Virtual Hub (5) |
|
5 |
Microsoft Azure Virtual Hub (for example: East US) |
|
6 |
Connection between the Microsoft Azure Virtual Hub (5) and the first VNet (8) |
|
7 |
Connection between the Microsoft Azure Virtual Hub (5) and the second VNet (9) |
|
8 |
First VNet |
|
9 |
Second VNet |
For more information, see the Azure Virtual WAN Documentation.
