Installing and Removing Tooled Rails
This procedure applies to threaded hole racks. Make sure you have two pairs of screws suitable for your rack.

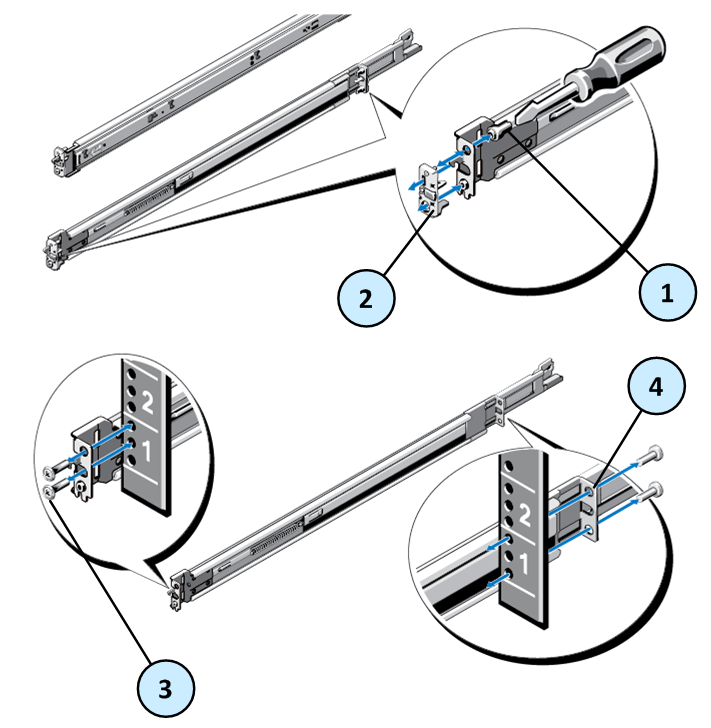

To install tooled rails:
-
Remove the pins from the front and rear mounting brackets using a flat-tipped screwdriver (1).
-
Pull and rotate the rail latch subassemblies to remove them from the mounting brackets (2).
-
Attach the left and right mounting rails to the front vertical rack flanges using two pairs of screws (3).
-
Slide the left and right back brackets forward against the rear vertical rack flanges and attach them using two pairs of screws (4).
