Smart-1 7000-L, Smart-1 7000-XL, and Smart-1 7000-UL

General Requirements for Racks

Check Point appliances are designed for a standard 19-inch (48.26 cm) rack. For more information, see the specification EIA-310-D.The telescopic rails are designed for racks with these specifications:

Legend

Minimum Depth	Maximum Depth
22 inches (55.9 cm)	32 inches (81.3 cm)
24 inches (61 cm)	36 inches (91.4 cm)

Front and rear rack doors must have equally distributed holes on at least 65% of the surface area to give sufficient airflow. Make sure that the racks have sufficient clearance to service the Check Point appliances that are mounted on telescopic rails.

The telescopic rails support racks with either round holes or square holes.

Legend

Rack Side	Clearance Requirement
Front	36 in (91.4 cm) plus additional clearance, if necessary, for the mechanical lift used to move the appliance and rails equipment.
Rear	16 in (40.6 cm) from the rear of the rack or appliance without the rear cabinet door. 22 in (55.9 cm) from the rear of the rack or appliance with the rear cabinet door.

Step 1 - Attaching the Ear Mount Brackets

Attach the ear mount brackets to the left and right side of the front of the appliance to allow:

• Easy pulling in and pulling out of the appliance while it is in the rack using the extraction handles

• Locking the appliance into the rack using the rack mounting screws

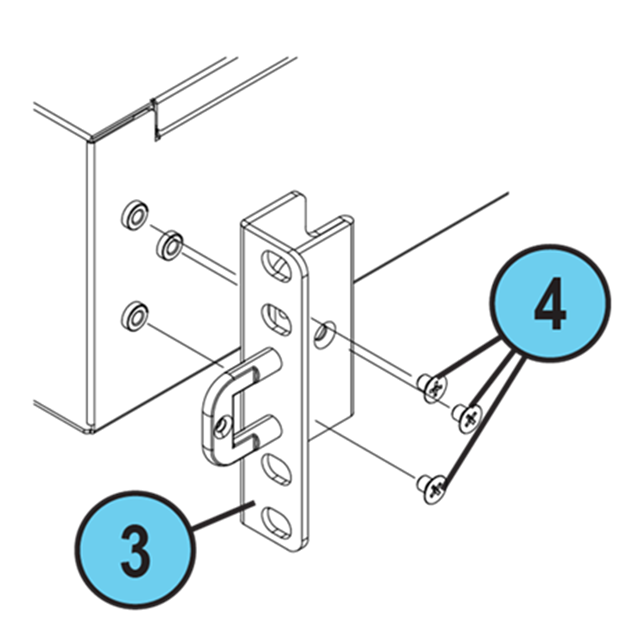

Extraction Handle and Screws	Ear Mount Bracket and Screws

Step 2 - Attaching the Inner Appliance Rails

The outer rack rail section and the inner appliance rail section come as a single unit in the box.

Before you can attach each appliance rail to the side of the appliance, you must remove the inner appliance rails from the outer rack rails.

To remove the inner appliance rail from the telescopic rail unit:

1. Extend the inner appliance rail from the outer rail until the rails locks in place.

2. Press the inner rail release latch, as shown, and pull the inner appliance rail straight out.

3. Repeat steps 1 - 2 for the second telescopic rack rail unit.

Legend

Item	Description
1	Inner rack rail
2	Release latch
3	Outer appliance rail

To install the inner appliance rails to the appliance:

1. Place the inner appliance rail on the side of the appliance and make sure:

   • The release latch is facing away from the appliance

   • The arrow on the release latch points to the front of the appliance

2. Align the mounting posts on the side of the appliance with the nodules on the inner rail.

   In Smart-1 7000-UL and Smart-1 7000-XL Appliances:



   In Smart-1 7000-L Appliances:



3. Press firmly on the inner rail and slide it towards the rear of the appliance until the mounting posts snap into place.

   In Smart-1 7000-UL and Smart-1 7000-XL Appliances:



   In Smart-1 7000-L Appliances:



4. Repeat steps 1 - 3 to install the second inner appliance rail on the other side of the appliance.

Step 3 - Attaching the Outer Rack Rails

Attach the outer rack rails to the rack. Make sure that you have the two outer rails ready. Each outer rail has a front end bracket and a rear end bracket.

Legend

Item	Description
1	Front rack post
2	Outer rack rail washers and screws installed
3	Outer rack rail

To attach the outer rails to the rack:

1. Identify the location in the rack posts where you will install the outer rails. You will need a total of six holes for the 2U unit. For attaching the outer rails, use the lower three holes.

2. Position the front end bracket of the outer rail (has three holes) with the front rack post.

3. Make sure that the smooth side of the outer rail marked with the engraved text "King Slide" faces the outer part of the rack enclosure.

4. Secure the top and bottom holes of the front end bracket to the front rack post using rack-mounting washers and screws, as illustrated in the diagram.

   Note - The empty middle hole will be used to secure the ear mount locking screw in the next procedure.




5. Secure the rear end bracket, labeled "REAR", to the rear rack post using rack-mounting washers and screws, as illustrated in the diagram.



6. Repeat steps 2 - 5 for the second outer rail.

Step 4 - Installing the Appliance in the Rack

Install the appliance in the telescopic rails in the rack.

Important - To prevent injury or damage, at least two people are required to install the appliance in a rack.

Important - Do not attempt to lift, drag, or otherwise move the appliance using the handles on the power supply units.

1. Insert a cage nut into the second hole on the front rack post to prepare the hole for the ear mount locking screw.



2. Pull the installed outer rails fully out until you hear a snap.

3. Align the appliance's inner rails to be level with the outer rails.

4. Slide the inner rails into the outer rails and move the appliance into the rack as far as it can go.

5. Pull on the release strips on both sides of the appliance and push the appliance in.



6. Slide the appliance in and out of the rack several times to allow the rails to position properly.

7. Tighten all rail mounting screws.

8. For each ear mount bracket, use two ear mount locking screws to secure it to the rack and make sure that the appliance cannot move. This disables the telescopic rails.

   Use the rack post holes labeled 1 in the below figure.



   Legend

   Item	Description
   1	Rack post holes for ear mount locking screws
   2	Extraction handle
   3	Rack mounting washer and screw

Removing the Appliance

Important - We recommend that at least two people work together to remove the appliance from a rack to prevent injury, or damage to the appliance.

Important - Do not attempt to lift, drag, or otherwise move the appliance using the handles on the power supply units.

To remove the appliance from the rack:

1. Remove the ear mount locking screws from the rack post mounting holes that attach the ear mounts to the rack.

2. Pull the appliance away from the rack as far as possible.

   The release strip on the telescopic rails stops the appliance from sliding too far.

3. On the appliance rails:

   • Press and pull the release strips to unlock the telescopic rails.



   • Pull out the appliance from the rack.

Appliance Air Vents

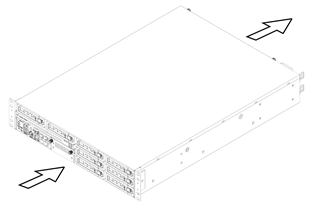

Make sure that the appliance air vents have sufficient airflow from front to rear when the appliance is mounted in a rack.

Important - If the appliance vents are blocked, the appliance can become too hot and it can be damaged.

The appliance and rack rails have been tested in extreme conditions and do not block air flow to the appliance.

These appliances are specifically designed to install with these rails.
