RAID Levels and Storage Options

  • Smart-1 6000-L - The supplied Enterprise graded SATA III 3.5" HDDs (Hard Disk Drives) are hot swappable.

  • Smart-1 6000-XL - The supplied Enterprise graded 2.5" SSDs (Solid State Drives) come in 1TB and 4TB capacities depending on your storage requirements and are hot swappable.

  • Hot swappable disks are supplied in hot swappable disk carriers that fit in the disk slots.

  • If you do not immediately install a replacement disk when a disk fails, leave the failed disk in place to ensure proper appliance cooling until the new disk is installed.



Smart-1 6000-L
4TB HDD Disks

Smart-1 6000-XL
4TB SSD Disks

Smart-1 6000-XL
1TB SSD Disks

Default
RAID Level

5, 6, 50 for 6 disks

5, 6, 50 for 6 disks

5, 6, 50 for 6 disks

Default Storage

6 x 4TB disks

6 x 4TB disks

6 x 1TB disks

Optional Storage

12 x 4TB disks

12 x 4TB disks

N/A

Supported
RAID
Levels

5, 6, 10, 50, 60 for 12 disks

5, 6, 10, 50, 60 for 12 disks

5, 6, 50 for 6 disks

Best Practice -The recommended default storage options for Smart-1 6000-XL appliances are:

  • 6 x 1TB disks when using a Smart-1 6000-XL appliance as a Management Server only.

  • 6 x 4TB disks when using a Smart-1 6000-XL appliance as a Management Server+Log Server or a Log Server only. This is due to additional storage space required for logs.

Important - If you configure RAID, these are the only supported combinations.

Numbering of the Disk Slots on the Front Panel

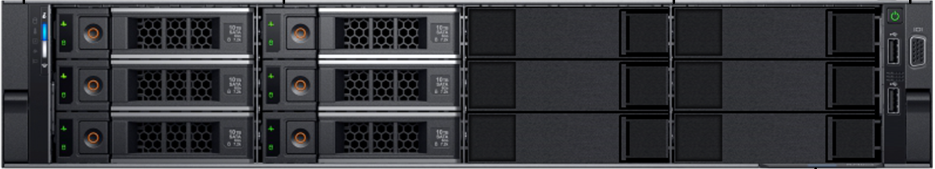

Smart-1 6000-L/6000-XL Front Panel

Slot 0:
Disk

Slot 3:
Disk

Slot 6:
Optional

Slot 9:
Optional

Slot 1:
Disk

Slot 4:
Disk

Slot 7:
Optional

Slot 10:
Optional

Slot 2:
Disk

Slot 5:
Disk

Slot 8:
Optional

Slot 11:
Optional

Note - See the slot numbers below the bottom row of disk slots on the appliance.
