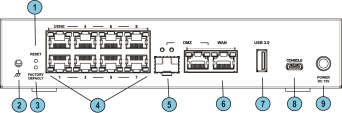

Back Panel

Wired



WiFi



WiFi-LTE



WiFi-DSL



Key

Item

Description

1

Reset

Short press resets the system but does not remove any user parameters.

2

Ground screw

Functional grounding.

3

Factory default

Press the button continuously for 12 seconds to restore the appliance to its factory default.

All user parameters previously configured are removed.

4

LAN ports

LAN ports 1-8.

LAN port 2/Sync.

Support 10/100/1000 MbE.

5

DMZ port

(combo RJ45 or

DMZ fiber SFP port)

WAN combo port (RJ45 or DMZ fiber).

Only one can operate at a time once plugged in and connected.

Once connected, you must remove it to activate the other port.

The LEDs above indicate connection and speed per connection.

Each uses its own LEDs.

The SFP supports 1 GbE speed, short and long range. See catalog for P/Ns.

6

RJ45 WAN port

WAN port RJ45 (on the right) - supports 10/100/1000 MbE.

7

USB port 3.0 (Type-A)

USB port 3.0 for software download.

8

Console

Plug in the serial console cable here. Baud rate: 115200.

9

Power cord socket

Plug the power adapter cord in here.

10

DSL Port

(WiFi-DSL models only)

Port for attaching RJ11 cable.
