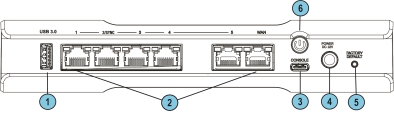

Back Panel
|
Key |
Item |
Description |
|---|---|---|
|
1 |
USB port 3.0 (Type-A) |
For software download. |
|
2 |
LAN and WAN ports 1 GbE |
LAN ports 1-5, LAN 2/Sync. WAN port 1. |
|
3 |
Console |
Plug in the serial console cable here. Baud rate: 115200. |
|
4 |
Power cord socket |
Plug the power adapter cord in here. |
|
5 |
Factory default |
Press the button continuously for 12 seconds to restore the appliance to its factory defaults. |
|
6 |
Power button |
Push to turn the appliance on or off. |
