Front Panel

Wired

WiFi

2560 / 2570 Wired Front panel

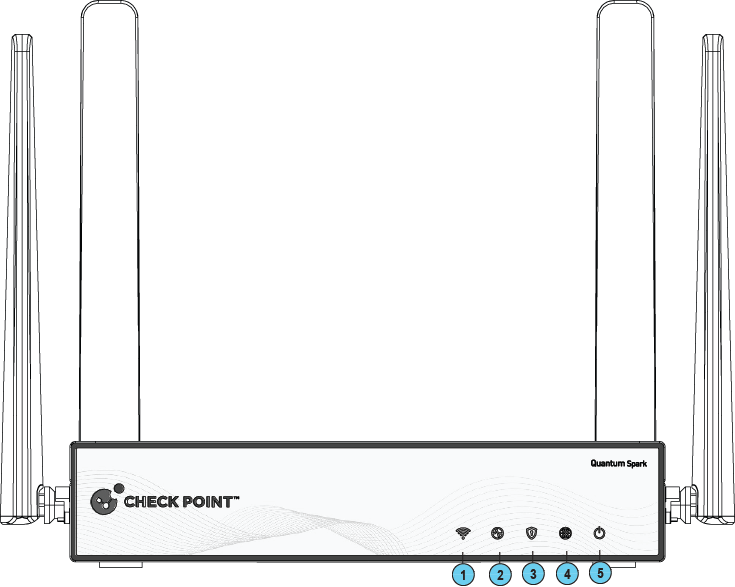

2560 / 2570 WiFi Front panel

WiFi + Cellular





Note - There is only one set of LEDs. The LED color (blue / red / purple) depends on what activity occurs.

Table: Wired LEDs

Key

Item

Icon

Description

1

WiFi LED

(WiFi models only)

  • Off - WiFi off

  • Blue - WiFi on and operates normally

  • Red - WiFi error/alert

2

Power Redundancy LED

Shows the status of the two internal PSUs. Single red LED.

  • The two Power Supplies are active - Off

  • Failure in one of the Power Supplies - On

3

Management LED

  • Off – No management

  • Colors - See below

4

Internet LED

  • Off - No internet connection

  • Blinking Blue - Connecting to the Internet.

  • Blue - Connected

  • Blinking Red - Connection failure

5

Power LED

  • Solid Blue – Normal operation

  • Blinking Blue – Boot in progress or installing firmware.

  • Red – Error/Alert

    Note - This LED is red when the appliance is first turned on.

5

LTE LED (WiFi LTE model only)

  • Off - Cellular off

  • Solid blue - Cellular modem available (operating SIM must be inserted and activated)

  • Blinking blue - Cellular data transfer

  • Red - Cellular modem issue (no SIM, modem off, no signal, etc.)

6

5G LED

(2570 WiFi Cellular model only)

  • Off - Cellular is off

  • Slowly Blinking Blue - Connecting to the cellular network

  • Solid Blue - Cellular internet connection is up and running on the 5G network

  • Rapidly Blinking Blue - Traffic on the 5G network

  • Solid Purple - Cellular internet connection is up and running on the 3G/4G/LTE network

  • Rapidly Blinking Purple - Traffic on the 3G/4G/5G network

  • Red - Cellular modem issue (no SIM, SIM error, SIM tray open etc.)

Management LED

The Management LED shows the status of the retries mechanism:

Action

Management LED Activity

Zero Touch is running.

Blinks red (slowly)

Successfully connected to Zero Touch Cloud Server and saved the deployment script.

Blinks red (rapidly)

Zero Touch process is completed. SMP activation is not needed.

LED off

Activation sleeping time.

Blinks blue (slowly)

Reactivation.

Blinks blue (rapidly)

SMP is connected.

Solid blue.

SMP mode is off.

LED off

Gateway failed to connect to the SMP and will exit from the retry script.

Constant red.

Wait times before retry:

Failure

Waiting Time

1st

2 minutes

2nd

4 minutes

3rd

8 minutes

4th

16 minutes

Subsequent

Retries every 16 minutes until Cloud Services are successfully activated

Network LEDs

The table below describes the network LEDs (RJ45 WAN and LAN ports and the SFP).

Each port uses a bi-color LED to reflect the link/activity and speed, from 10M to 1GbE.

Speed

Link

Activity

Link/Act LED1 Left

Speed LED2 Right

No link

No LED

No LED

1G

Yes

No

Solid Green

Solid Amber

1G

Yes

Yes

Blinking Green

Solid Amber

100M

Yes

No

Solid Green

No LED

100M

Yes

Yes

Blinking Green

No LED

10M

Yes

No

Solid Green

No LED

10M

Yes

Yes

Blinking Green

No LED

Speed

Link

Activity

Link/Act LED1 Left

Speed LED2 Right

No link

No LED

No LED

10G

Yes

No

Solid Green

Solid Amber

10G

Yes

Yes

Solid Green

Solid Amber

1G

Yes

No

Solid Green

Solid Green

1G

Yes

Yes

Solid Green

Solid Green
