Front Panel

Wired

Note - There is only one set of LEDs. These LEDs show different colors depending on what activity is occurring.

Table: Wired LEDs

Key

Item

Icon

Description

BYPASS

(Wired bypass model only)

Bypass mechanism activated upon software or hardware failure

LED is red when Bypass is enabled.

Note - Not all Wired models have the Bypass/Fonic feature.

Management LED

Off - No management
Colors - See below

Internet LED

Off - No internet connection
Blinking Blue - Trying to connect to the internet.
Blue - Connected
Blinking Red - Connection failure

Power LED (Status)

Solid Blue - Normal operation
Blinking Blue - Boot in progress and installing firmware. After the process completes, the LED is solid blue.

Red - Error/Alert

Note - This LED is red when the appliance is first turned on.

WiFi

Note - There is only one set of LEDs. These LEDs show different colors depending on what activity is occurring.

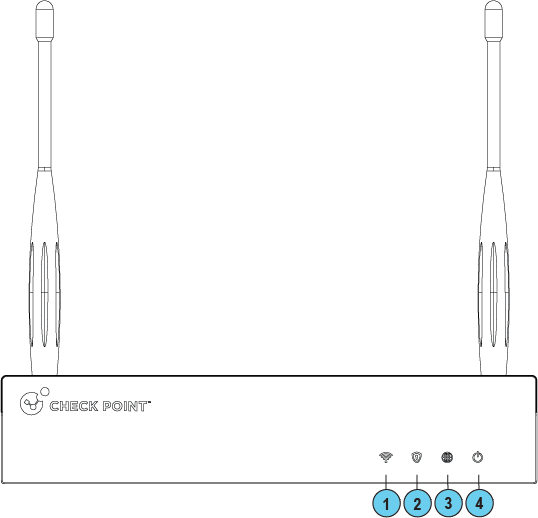

Table: WiFi LEDs

Key

Item

Icon

Description

WiFi LED

(WiFi models only)

Off - WiFi off
Blue - WiFi on and operates normally
Red - WiFi error/alert

Management LED

Off - No management
Colors - See below

Internet LED

Off - No internet connection
Blinking Blue - Trying to connect to the internet.
Blue - Connected
Blinking Red - Connection failure

Power LED (Status)

Solid Blue - Normal operation
Blinking Blue - Boot in progress and installing firmware. After the process completes, the LED is solid blue.

Red - Error/Alert

Note - This LED is red when the appliance is first turned on.

WiFi + Cellular

Table: WiFi + Cellular LEDs

Key

Item

Icon

Description

5G LED

(2550 WiFi Cellular model only)

Off - Cellular is off
Slowly Blinking Blue - Connecting to the cellular network
Solid Blue - Cellular internet connection is up and running on the 5G network
Rapidly Blinking Blue - Traffic on the 5G network
Solid Purple - Cellular internet connection is up and running on the 3G/4G/LTE network
Rapidly Blinking Purple - Traffic on the 3G/4G/5G network
Red - Cellular modem issue (no SIM, SIM error, SIM tray open etc.)

WiFi LED

(WiFi models only)

Off - WiFi off
Blue - WiFi on and operates normally
Red - WiFi error/alert

Management LED

Off - No management
Colors - See below

Internet LED

Off - No internet connection
Blinking Blue - Trying to connect to the internet.
Blue - Connected
Blinking Red - Connection failure

Power LED (Status)

Solid Blue - Normal operation
Blinking Blue - Boot in progress and installing firmware. After the process completes, the LED is solid blue.

Red - Error/Alert

Note - This LED is red when the appliance is first turned on.

Management LED

The Management LED shows the status of the retries mechanism:

Action	Management LED Activity
Zero Touch is running.	Blinks red (slowly)
Successfully connected to Zero Touch Cloud Server and saved the deployment script.	Blinks red (rapidly)
Zero Touch process is completed. SMP activation is not needed.	Off
Activation sleeping time.	Blinks blue (slowly)
Reactivation.	Blinks blue (rapidly)
SMP is connected.	Solid blue
SMP mode is off.	Off
Gateway failed to connect to the Quantum Spark Management (SMP) and will exit from the retry script.	Solid red

Wait times before retry:

Failure	Waiting Time
1st	2 minutes
2nd	4 minutes
3rd	8 minutes
4th	16 minutes
Subsequent	Retries every 16 minutes until Cloud Services are successfully activated

Network LEDs

The table below describes the network LEDs (RJ45 WAN, RJ45 DMZ, WAN SFP, DMZ SFP and LAN ports).

Each port uses a bi-color LED to reflect the link/activity and speed.

Speed	Link	Activity	Link/Act LED1 Left	Speed LED2 Right
No link			No LED	No LED
1G	Yes	No	Solid Green	Solid Amber
1G	Yes	Yes	Blinking Green	Solid Amber
100M	Yes	No	Solid Green	No LED
100M	Yes	Yes	Blinking Green	No LED
10M	Yes	No	Solid Green	No LED
10M	Yes	Yes	Blinking Green	No LED
