SSM440 Security Switch Module

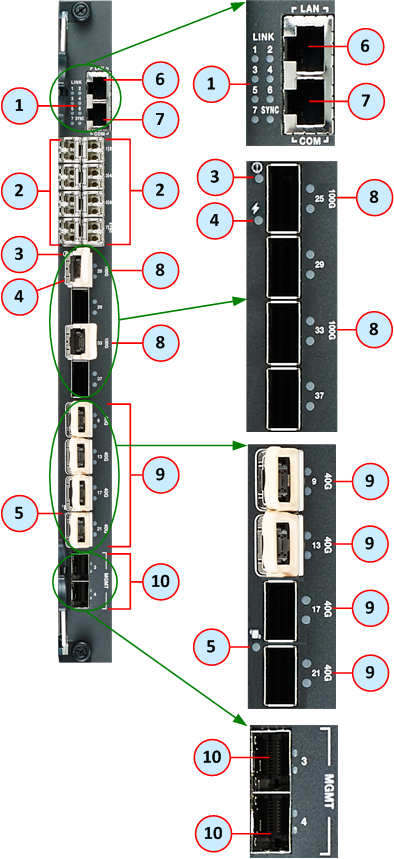

Item	Name	Description
1	LINK	LEDs that show the status of the FI ports that are denoted as (2).
2	1-7, SYNC	8 x 1/10GbE SFP/SFP+ FI ports.
3		LED that shows the Out of Service status.
4		LED that shows the Power status.
5		LED that shows the Hot-swap status of the SSM.
6	LAN	10/100/1000BASETX RJ45 Ethernet port used to perform chassis management and software upgrade through direct connection to the chassis.
7	COM	1 RJ45 port for direct access through console. This port uses RS232 level signaling and is configured for 9600 Baud. This port is an EIA232 VT-100 compatible. TX and RX lines are protected for 15kV ESD.
8	100G	QSFP28/QSFP+ FI ports. One of these: 2 x 40GbE/100GbE (using QSFP28/QSFP+) ports. 16 x 10GbE (using 4 x 40Gbe QSFP+ and MPO breakout cable An optical fiber cable that contains several jacketed simplex optical fibers that are packaged together inside an outer jacket. Synonyms: Fanout cable, Fan-Out cable, Splitter cable.) ports.
9	40G	QSFP+ FI ports. One of these: 4 x 40GbE (using 40Gbe QSFP+) ports. 16 x 10GE (using 4 x 40Gbe QSFP+ and MPO breakout cable) ports.
10	MGMT	2 x 1/10GbE SFP/SFP+ BI ports.
