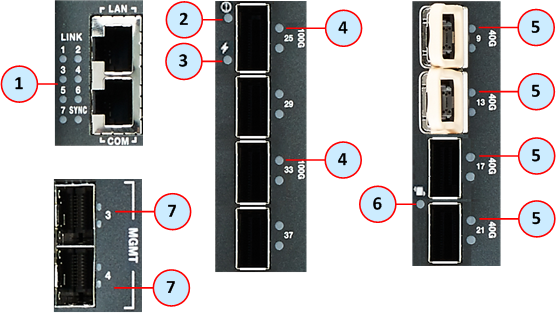

SSM440 Security Switch Module LEDs

Item	LED	Status	Description
1	LINK 1, 2, 3, 4, 5, 6, 7, SYNC	On (Normal)	Traffic in the SSM flows correctly.
1	LINK 1, 2, 3, 4, 5, 6, 7, SYNC	Off	Traffic does not flow in the SSM.
2	Out of Service	Red	SSM is out of service.
2	Out of Service	Off (Normal)	SSM hardware works normally.
3	Power	On (Normal)	Power on the SSM is on.
3	Power	Off	Power on the SSM is off.
4	25 100G 33 100G	On (Normal)	Traffic flows correctly through the QSFP28/QSFP+ FI port.
4	25 100G 33 100G	Off	Traffic does not flow through the QSFP28/QSFP+ FI port.
5	9 40G 13 40G 17 40G 21 40G	On (Normal)	Traffic flows correctly through the FI QSFP+ port.
5	9 40G 13 40G 17 40G 21 40G	Off	Traffic does not flow through the FI QSFP+ port.
6	Hot-swap status	Blue	SSM can be safely removed.
		Blue blinking	SSM is going to the Standby mode. Do not remove.
		Off (Normal)	SSM is in the Active mode. Do not remove.
7	3 MGMT 4 MGMT	On (Normal)	Traffic flows correctly through the SFP/SFP+ BI port.
7	3 MGMT 4 MGMT	Off	Traffic does not flow through the SFP/SFP+ BI port.
