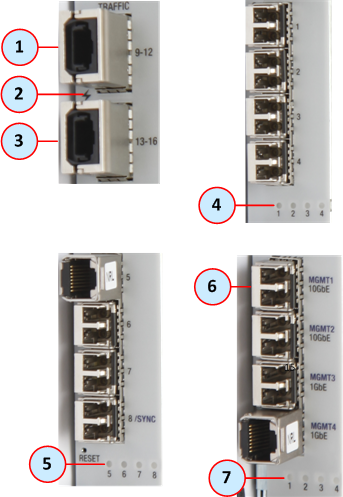

SSM160 Security Switch Module LEDs
|
Item |
LED |
Status |
Description |
|---|---|---|---|
|
1 |
Out of Service
|
Red |
SSM is out of service. |
|
Off (Normal) |
SSM hardware is normal. |
||
|
2 |
Power
|
On (Normal) |
Power on the SSM is on. |
|
Off |
Power on the SSM is off. |
||
|
3 |
|
|
This LED is not used. |
|
4 |
1 2 3 4 |
Green |
Link is enabled on the 10GbE SFP+ data ports. |
|
Yellow blinking |
Link is active on the 10GbE SFP+ data ports. |
||
|
Off |
Link is disabled on the 10GbE SFP+ data ports. |
||
|
5 |
5 6 7 8 |
Green |
Link is enabled on the 10GbE SFP+ data ports and of the 8/SYNC port. |
|
Yellow blinking |
Link is active on the 10GbE SFP+ data ports and of the 8/SYNC port. |
||
|
Off |
Link is disabled on the 10GbE SFP+ data ports and of the 8/SYNC port. |
||
|
6 |
Hot-swap status
|
Blue |
SSM can be safely removed. |
|
Blue blinking |
SSM is going to the Standby mode. Do not remove. |
||
|
Off (Normal) |
SSM is in the Active mode. Do not remove. |
||
|
7 |
1 2 3 4 |
Green |
Link is enabled on the MGMT data ports. |
|
Yellow blinking |
Link is active on the MGMT data ports. |
||
|
Off |
Link is disabled on the MGMT data ports. |
