Installing the Cable Management Tray

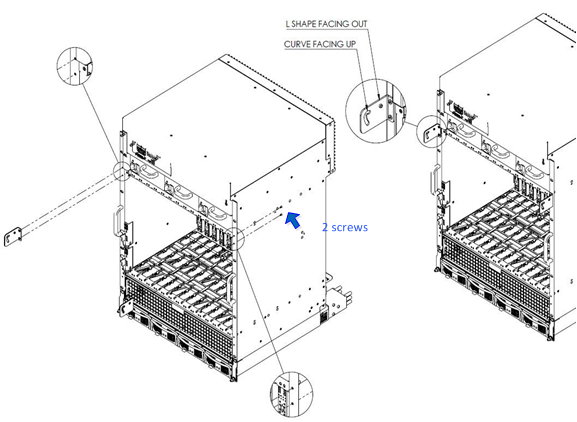

1. Attach 2 brackets, the curve facing up (using 2 screws each), to the Chassis.

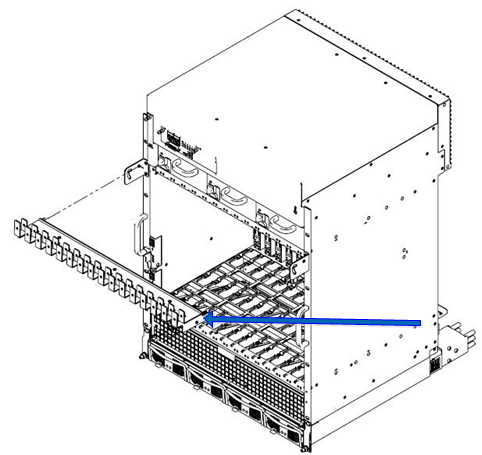

2. Attach the cable management between the brackets.

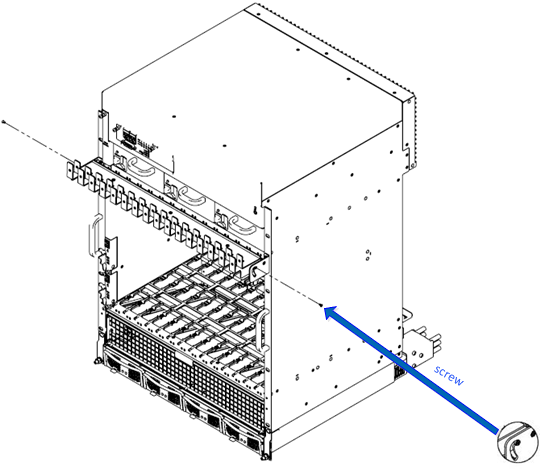

3. Attach a screw to the cable management pivot on both sides.
