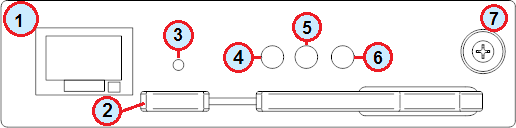

Chassis Management Modules (CMMs) for the 64000, 44000, and 61000 Chassis

The Chassis Management ModuleClosed A hardware component that controls and monitors 60000 / 40000 Appliance (Chassis) operation such as, fan speed, Chassis and module temperature, and component hot-swapping. Acronym: CMM. (CMM) controls and monitors the Chassis operation.

This includes fan speed, chassis and module temperature, and component hot-swapping.

To insert a Chassis Management Module:

Step

Instructions

1

On the CMM, remove the tape on the battery.

This tape protects the battery life before installation.

2

Open the upper latch.

3

Insert the Chassis Management Module into the allocated slot.

Best Practice - If you have only one CMM, we recommend you insert it into the lower Chassis slot.

4

Close the latch.

5

Tighten the two thumb screws.

6

After power up, all LEDs must light up for 1-2 seconds.

The ACT and PWR LEDs continue to show green after the other LEDs turn off.
