AC Power Supply Units (PSUs)
Replaceable and hot-swappable AC PSUs supply:
-
Power to the Chassis.
-
Power filtering and over-current protection.
Each AC PSU is located on a tray that slides directly into the backplane.
The AC Power inlets are located in the rear of the Chassis. Each AC PSU has one power inlet.
|
Warning - The AC PSU for the 44000 Chassis is not compatible with the 64000 Chassis. |

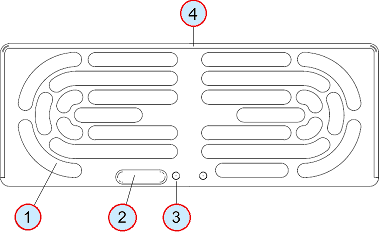

AC PSU for the 64000, 44000, 61000 and 61000 N+N Chassis
|
Item |
Description |
|---|---|
|
1 |
Air filter. Prevents dust from entering the AC PSU. |
|
2 |
Latch for extracting and inserting the AC PSU. |
|
3 |
AC Power Supply LED:
DC Power Supply LED (not applicable for 44000):
|
|
4 |
Handle for holding the AC PSU during extraction and insertion. |

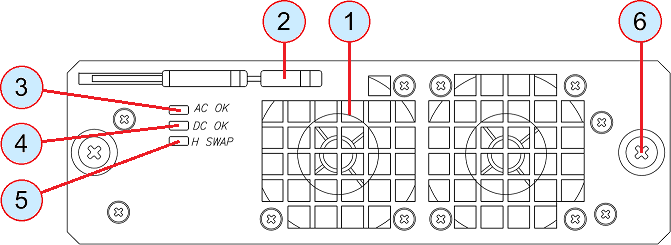

AC PSU for the 41000 Chassis
|
Item |
Description |
|---|---|
|
1 |
AC PSU fan. |
|
2 |
Latch for extracting and inserting the AC PSU. |
|
3 |
AC Power Supply LED:
|
|
4 |
DC Power Supply LED:
|
|
5 |
Hot Swap LED:
|
|
6 |
Locking captive screw. |
Power Requirements for the 64000 and 61000 N+N Chassis:
-
2500W at 230VAC
-
2500W at 208VAC
-
1500W at 110VAV
-
1300W at 100VAC
Power Requirements for the 44000, 61000, and 41000 Chassis:
Each AC PSU supplies power at these values:
-
1500W at 220VAC
-
1200W at 110VAC
Recommended number of PSUs
|
Important - One AC PSU cannot supply a fully loaded Chassis. The tables below how to calculate the recommended number of PSUs. |
