Mounting the 16000 Appliances in a Rack

You can install your 16000/16200/16600HS appliance with the Telescopic Rails hardware. For the procedure, see the .

Appliance Physical Specifications

These are the physical specifications of the Check Point appliance.

Appliance

Regulated Models

Width

Depth

Height

Maximum Operating Temperature

Electrical Specifications

16600HS

QP-10

17.40 in (44.2 cm)

24.01 in (61.0 cm)

1.73 in (4.4 cm) (1U)

32°F - 104°F
0°C - 40°C

100V(10A)-240V(5A)

47-63HZ

16000 Base/Plus

QL-15

17.40 in (44.2 cm)

24.01 in (61.0 cm)

3.46 in (8.8 cm) (2U)

32°F - 104°F
0°C - 40°C

100V(13.8A)-240V(8.5A)

47-63HZ

16000 Turbo
16200

QL-20

17.40 in (44.2 cm)

24.01 in (61.0 cm)

3.46 in (8.8 cm) (2U)

32°F - 104°F
0°C - 40°C

100V(13.8A)-240V(8.5A)

47-63HZ

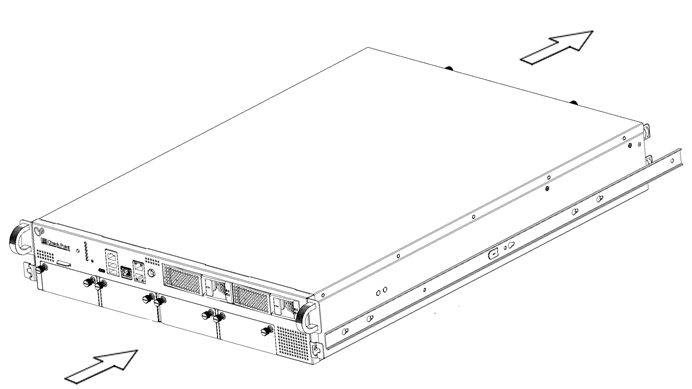

Appliance Air Vents

Make sure that the appliance air vents have sufficient airflow from front to rear when the appliance is mounted in a rack.

Important - If the appliance vents are blocked, the appliance can become too hot and it can be damaged.

The appliance and rack rails have been tested in extreme conditions and do not block air flow to the appliance. These appliances are specifically designed to install with these rails.
